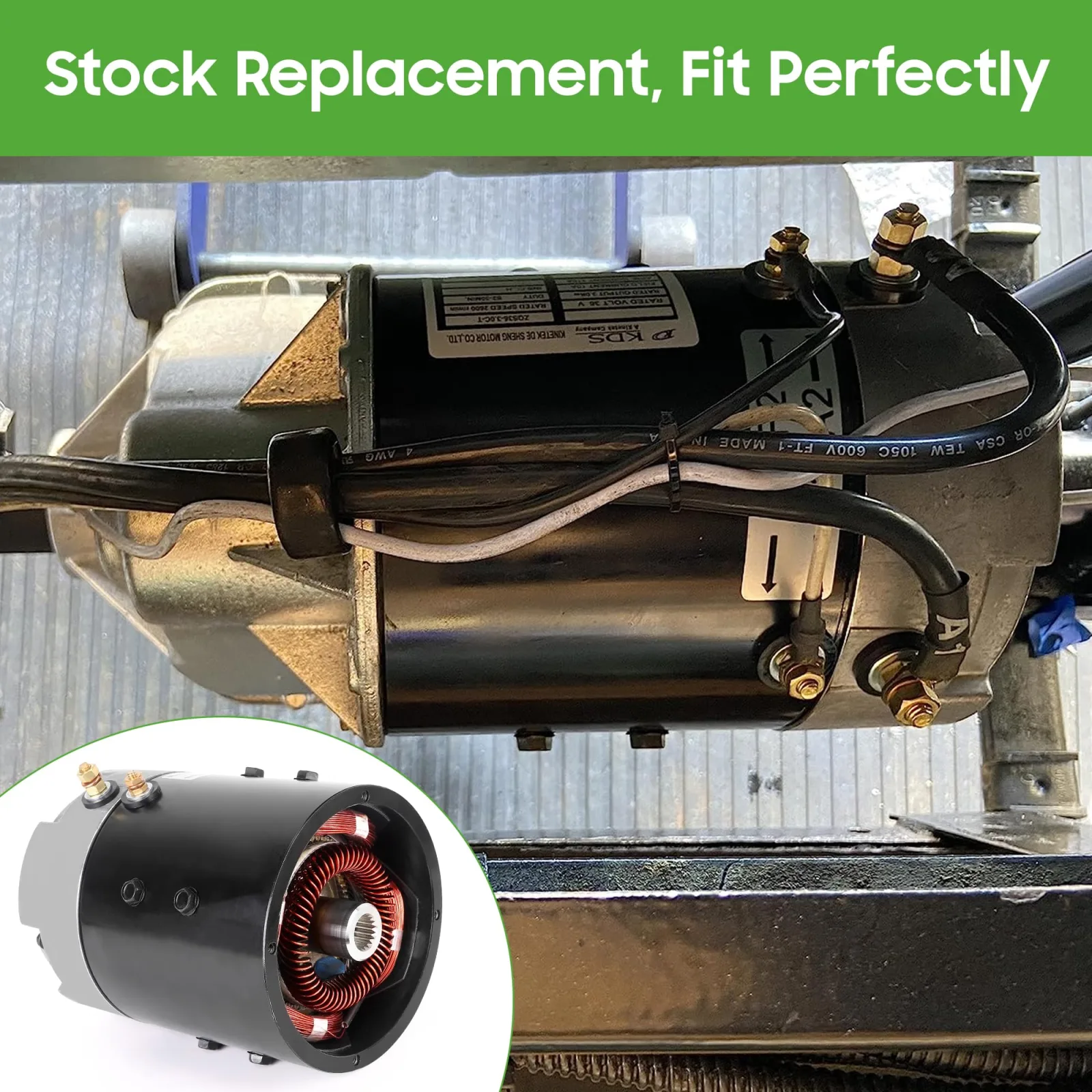

10L0L 48V Electric Motor for E-Z-GO TXT/Freedom
$981.99
In stock
✓ Free Shipping
48V 10L0L Nidec electric motor for 2010-up E-Z-GO TXT and Freedom golf carts, including a speed sensor and magnet.
Price shown is the online purchase price. Free shipping · 30-day return policy
Brand10L0L

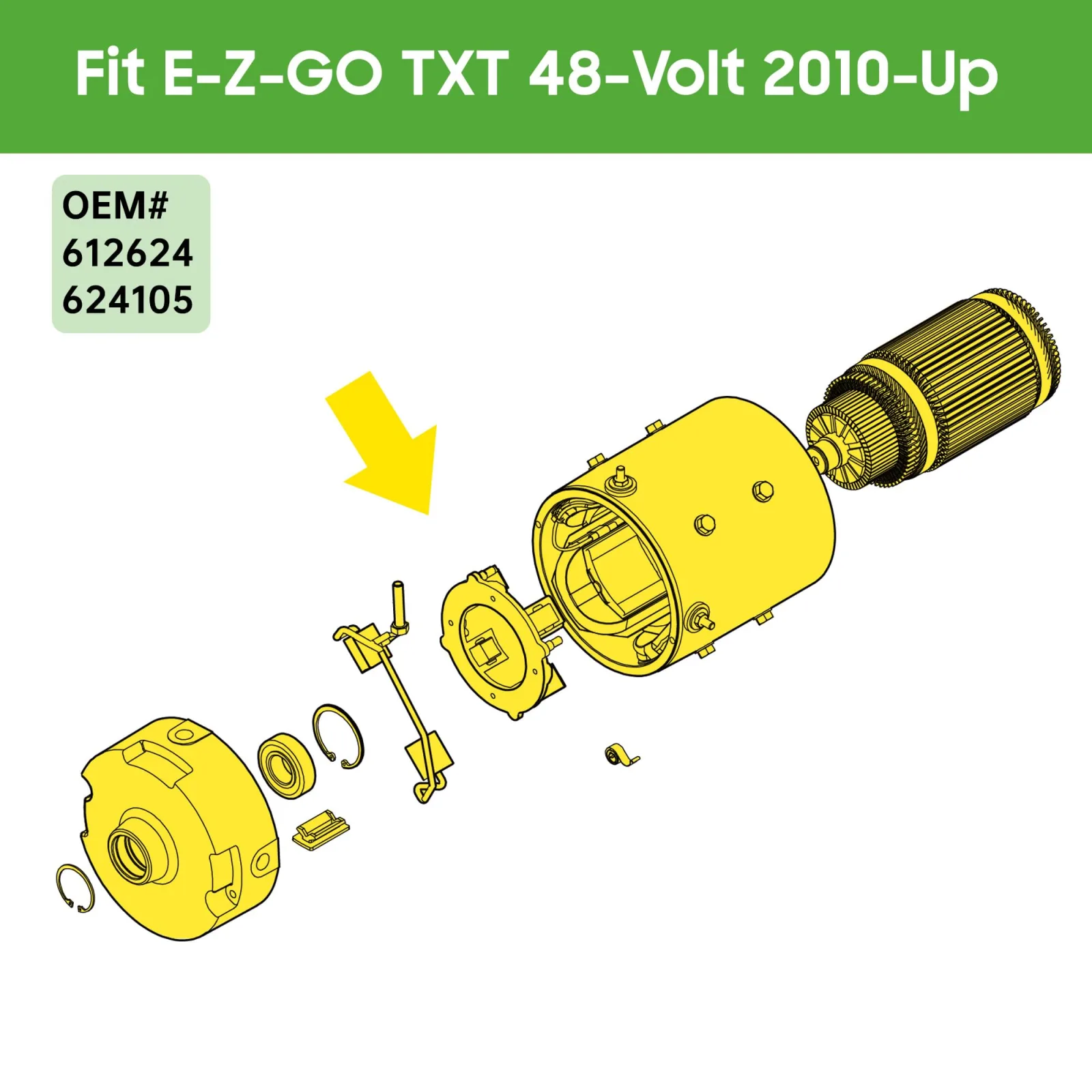

OEM / OE Number612624
Part TypeElectric motor
Product Description

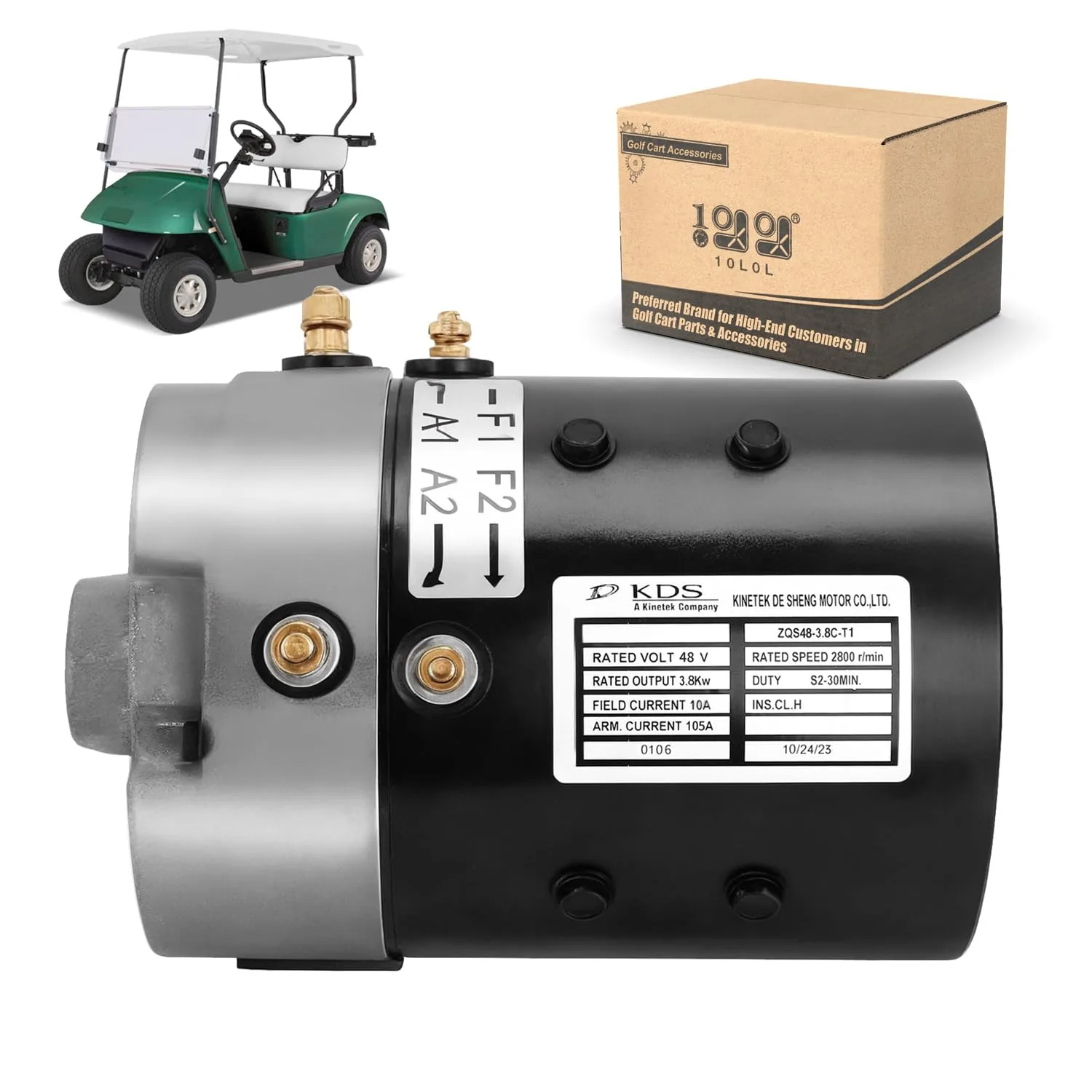

The 10L0L 48V electric motor is designed for E-Z-GO TXT and Freedom golf carts from 2010 onward. It is a Nidec motor rated at 3.8 kW, with a stated output of 3 hp at 2,800 rpm and an internal 19-tooth spline axle configuration.
The motor includes a 48V speed sensor and speed sensor magnet. It replaces the supported OEM numbers listed below; confirm the existing motor number before purchase. Not intended for PDS or DCS golf carts.
The motor includes a 48V speed sensor and speed sensor magnet. It replaces the supported OEM numbers listed below; confirm the existing motor number before purchase. Not intended for PDS or DCS golf carts.
Product Specifications
Brand10L0L
Manufacturer10L0L
Voltage48V
Power3.8 kW
Rated output3 hp at 2,800 rpm
Spline configurationInternal 19-tooth spline axles
Included component48V speed sensor and speed sensor magnet
Golf Cart Compatibility
| Year | Make | Model | Power / Engine | Variant |
|---|---|---|---|---|
| 2010 | E-Z-GO | Freedom | 48V | |
| 2010 | E-Z-GO | TXT | 48V |
Always compare the part number, dimensions, specifications, and compatibility details with your original part before ordering.
