36V AMD Speed Motor for E-Z-GO Marathon and TXT Carts
$927.99
In stock
✓ Free Shipping
36V, 4 hp AMD Series Wound speed motor for compatible E-Z-GO Marathon and TXT golf carts with Solid State Series electrical systems.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandPerformance Plus Carts
MPN / Part Number7122
OEM / OE NumberES1-4002
Part TypeSpeed motor
Product Description

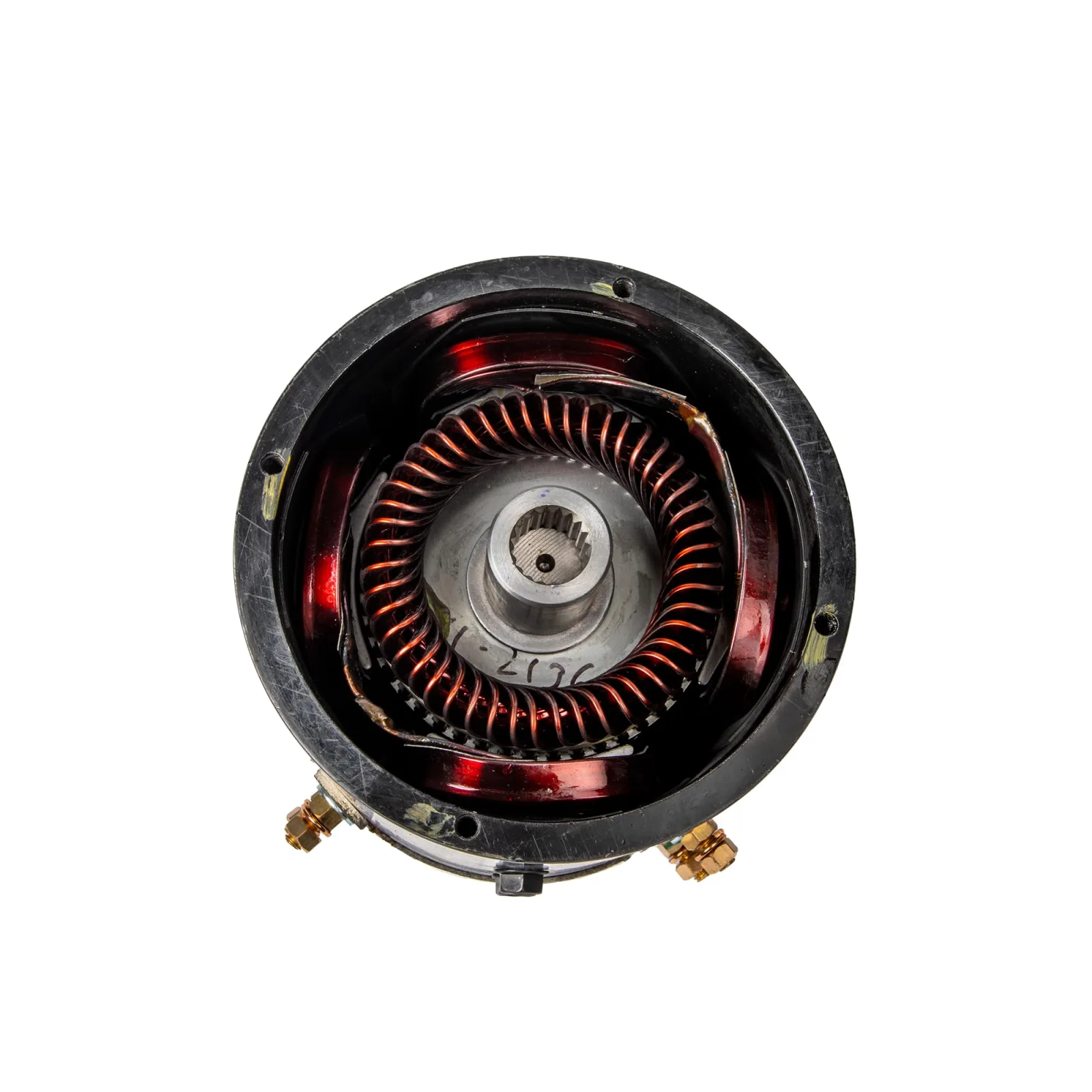

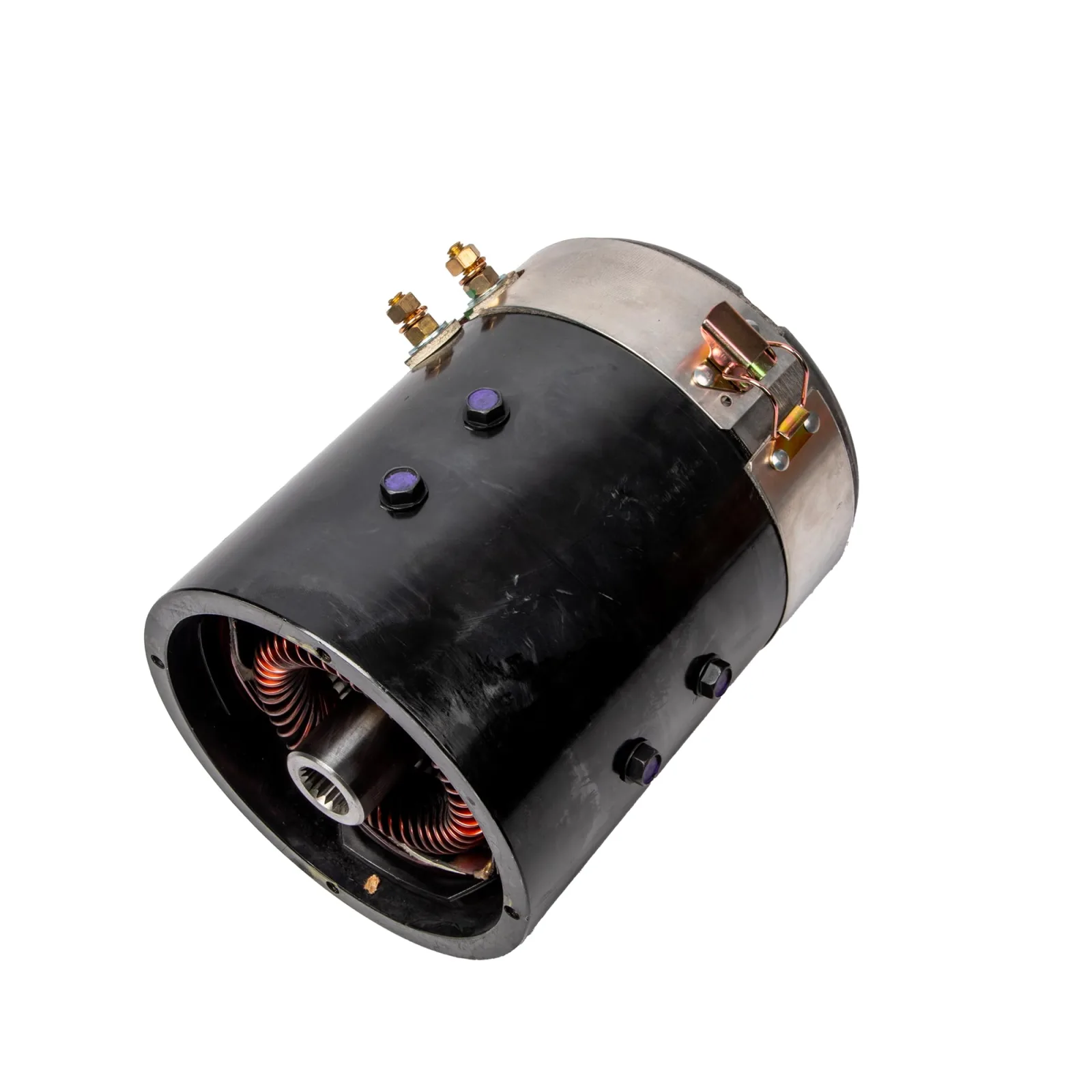

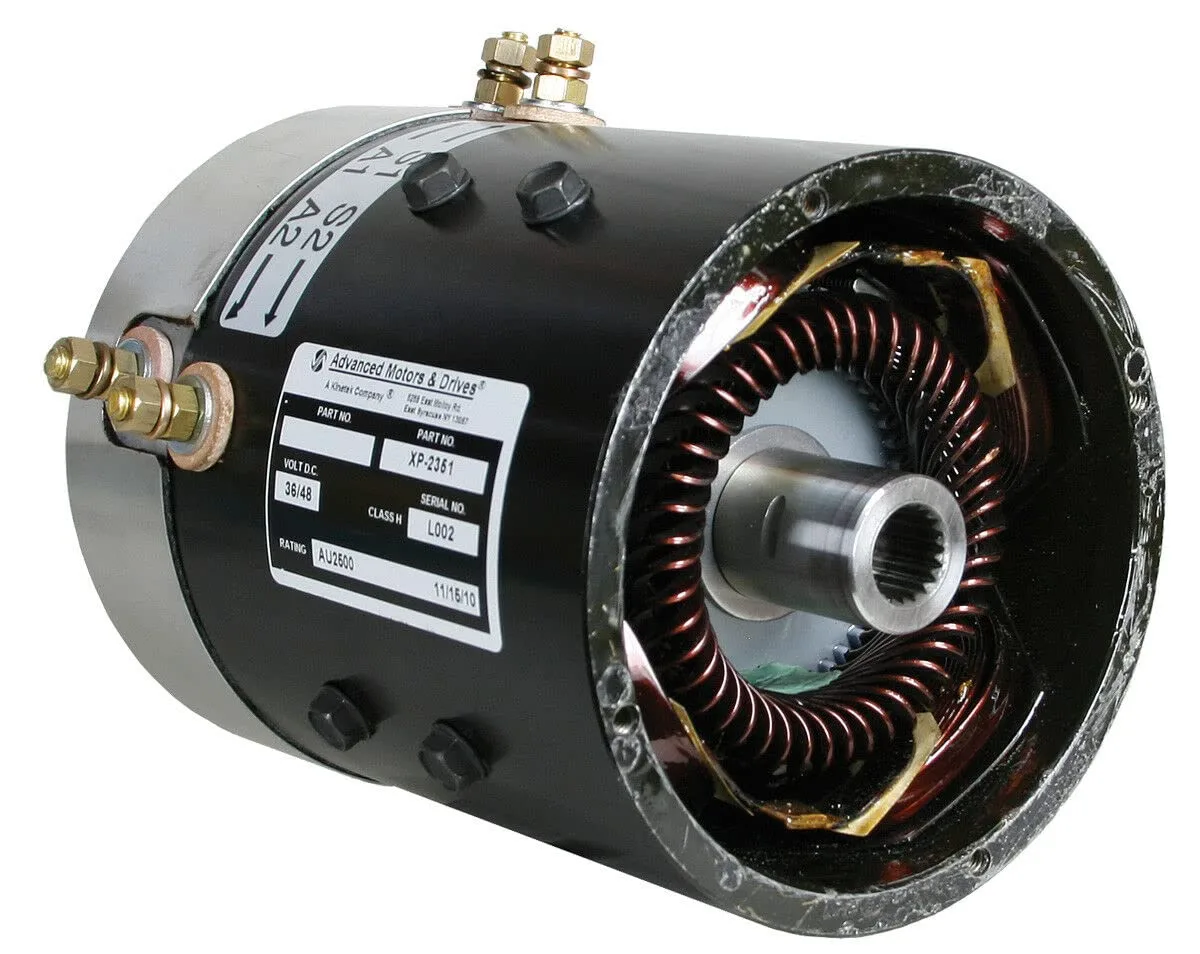

The Performance Plus Carts AMD Series Wound Speed Motor is a 36-volt, 4 hp DC motor for compatible E-Z-GO Marathon and TXT golf carts with Solid State Series electrical systems. It features an internal 19-spline design and is rated at 4,400 rpm, with speed performance up to 20 mph as described by the manufacturer.
This motor replaces AMD part numbers ES1-4002, D297, 73124G02, and 69200-89A. The manufacturer recommends 4-gauge cables, a high-amperage FNR switch, and a high-amperage solenoid for maximum performance, safety, and durability.
This motor replaces AMD part numbers ES1-4002, D297, 73124G02, and 69200-89A. The manufacturer recommends 4-gauge cables, a high-amperage FNR switch, and a high-amperage solenoid for maximum performance, safety, and durability.
Product Specifications
BrandPerformance Plus Carts
ManufacturerPerformance Plus Carts
Item Weight43.8 pounds
Voltage36 volts
Horsepower4 hp
Speed4400 rpm
Spline TypeInternal 19 spline
Item Weight43.8 pounds
Manufacturer Part Number7122
Golf Cart Compatibility
| Year | Make | Model | Power / Engine | Variant |
|---|---|---|---|---|
| 1988 | E-Z-GO | Marathon | 36V | Solid State Series |
| 1989 | E-Z-GO | Marathon | 36V | Solid State Series |
| 1990 | E-Z-GO | Marathon | 36V | Solid State Series |
| 1991 | E-Z-GO | Marathon | 36V | Solid State Series |
| 1992 | E-Z-GO | Marathon | 36V | Solid State Series |
| 1993 | E-Z-GO | Marathon | 36V | Solid State Series |
| 1994 | E-Z-GO | Marathon | 36V | Solid State Series |
| 1994 | E-Z-GO | TXT | 36V | Solid State Series |
| 1995 | E-Z-GO | TXT | 36V | Solid State Series |
| 1996 | E-Z-GO | TXT | 36V | Solid State Series |
| 1997 | E-Z-GO | TXT | 36V | Solid State Series |
| 1998 | E-Z-GO | TXT | 36V | Solid State Series |
| 1999 | E-Z-GO | TXT | 36V | Solid State Series |
| 2000 | E-Z-GO | TXT | 36V | Solid State Series |
| 2001 | E-Z-GO | TXT | 36V | Solid State Series |
| 2002 | E-Z-GO | TXT | 36V | Solid State Series |
| 2003 | E-Z-GO | TXT | 36V | Solid State Series |
| 2004 | E-Z-GO | TXT | 36V | Solid State Series |
| 2005 | E-Z-GO | TXT | 36V | Solid State Series |
| 2006 | E-Z-GO | TXT | 36V | Solid State Series |
| 2007 | E-Z-GO | TXT | 36V | Solid State Series |
| 2008 | E-Z-GO | TXT | 36V | Solid State Series |
| 2009 | E-Z-GO | TXT | 36V | Solid State Series |
Always compare the part number, dimensions, specifications, and compatibility details with your original part before ordering.
