91.SCS 48V 1000W DIY Golf Cart Rear Axle Kit
$1,341.99
In stock
✓ Free Shipping
Complete 91.SCS DIY electric vehicle kit with a 30-inch rear axle, 48V 1000W motor, wheels, steering components, shocks, seat, and brake assembly for custom golf cart and other vehicle builds.
Price shown is the online purchase price. Free shipping · 30-day return policy
Brand91.SCS
MPN / Part Number9340F-LK4F-=40
Part TypeComplete DIY electric vehicle kit
PositionRear axle and complete vehicle assembly kit
Product Description
The 91.SCS complete DIY electric vehicle kit combines a 30-inch rear axle with a 48V 1000W motor, wheels, steering components, shocks, a steering wheel, seat, and brake assembly. It is described for custom go-karts, ATVs, trikes, buggies, golf carts, and other electric vehicle projects.

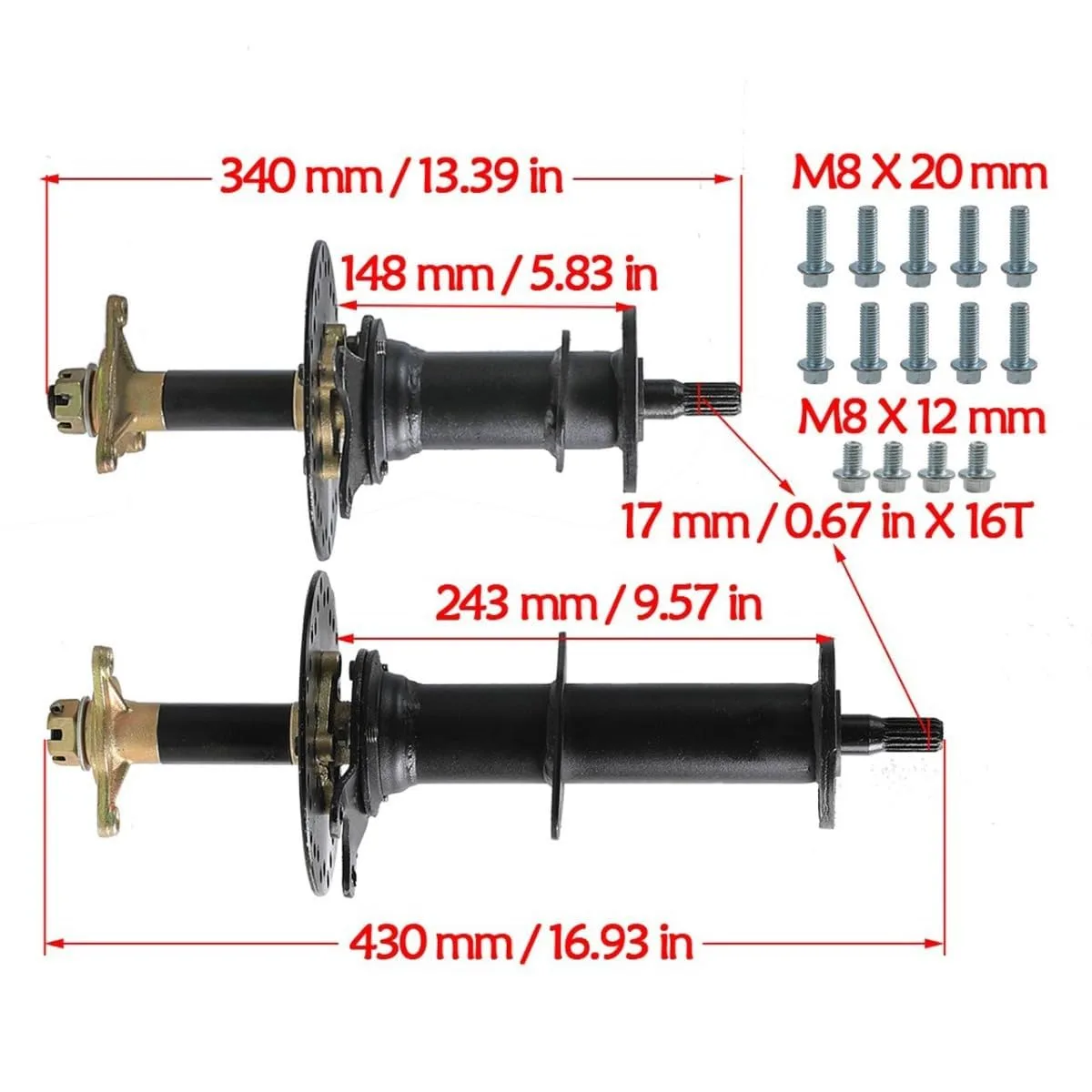

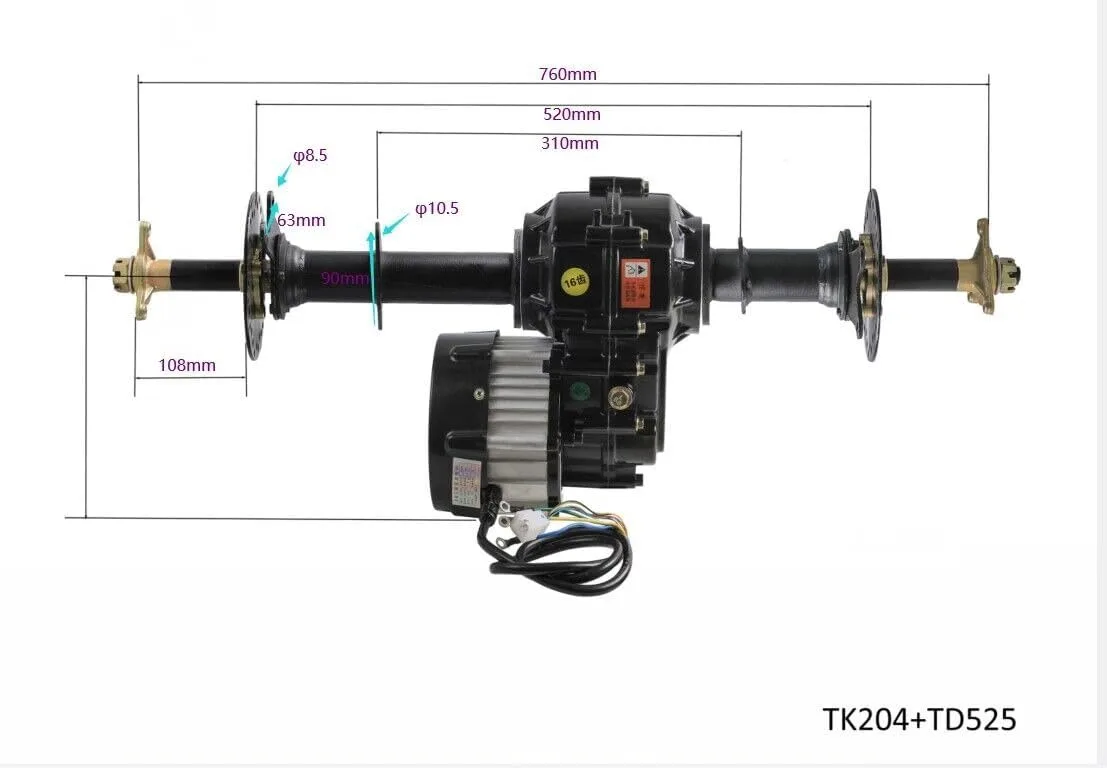

The motor is rated at 4,800 RPM with 2.62 Nm of torque and a 9.5:1 gear ratio. The kit includes 11x7.10-5 rear wheels, 10x4.50-5 front wheels, a 330mm steering rack, adjustable tie rods, and 190mm shocks.
The motor is rated at 4,800 RPM with 2.62 Nm of torque and a 9.5:1 gear ratio. The kit includes 11x7.10-5 rear wheels, 10x4.50-5 front wheels, a 330mm steering rack, adjustable tie rods, and 190mm shocks.
Product Specifications
Brand91.SCS
Manufacturer91SCS
Manufacturer Part Number9340F-LK4F-=40
Manufacturer part number9340F-LK4F-=40
Motor voltage48V
Motor power1000W
Motor speed4800 RPM
Motor torque2.62 Nm
Gear ratio9.5:1
Rear axle length30 inches
Rear wheel size11x7.10-5
Front wheel size10x4.50-5
Wheel bolt pattern3-bolt
Rear wheel bolt distance50mm
Front wheel bolt distance48mm
Steering rack length330mm
Shock length190mm
Steering wheel diameter270mm
ColorBlack
