91.SCS 48V 1000W Electric Motor Kit JDUE39CNDKLS
$1,353.99
In stock
✓ Free Shipping
Complete 91.SCS 48V 1000W brushless motor kit with axle, wheels, steering, brakes, seat, and suspension for DIY golf carts, go-karts, and ATVs.
Price shown is the online purchase price. Free shipping · 30-day return policy
Brand91.SCS
MPN / Part NumberJDUE39CNDKLS
Part TypeElectric motor kit
Product Description
The 91.SCS JDUE39CNDKLS is a complete 48V 1000W brushless electric motor kit for DIY go-karts, ATVs, golf carts, drift trikes, and other electric vehicles. The kit includes the motor, rear axle, wheels, steering assembly, brakes, seat, suspension components, and electrical parts.

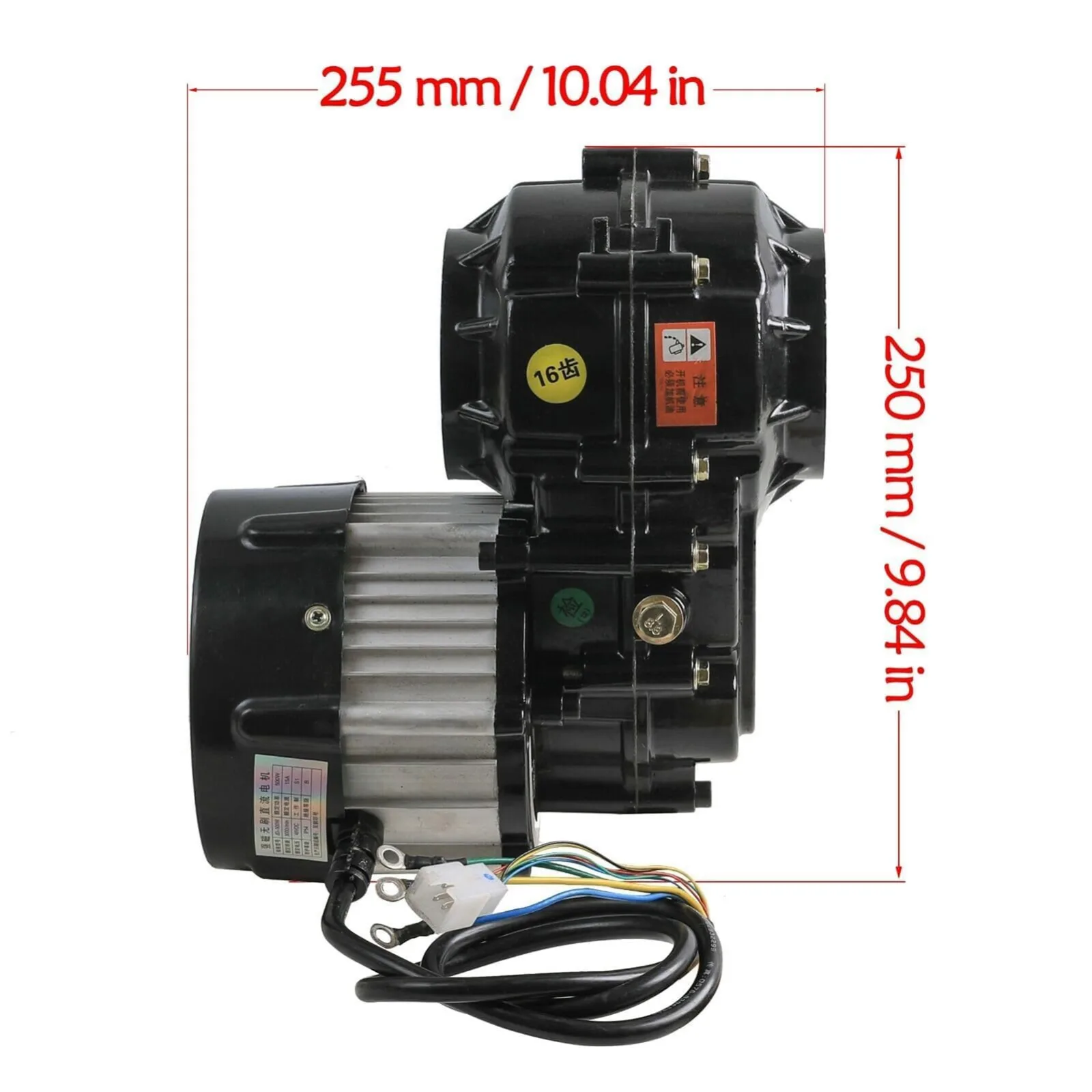

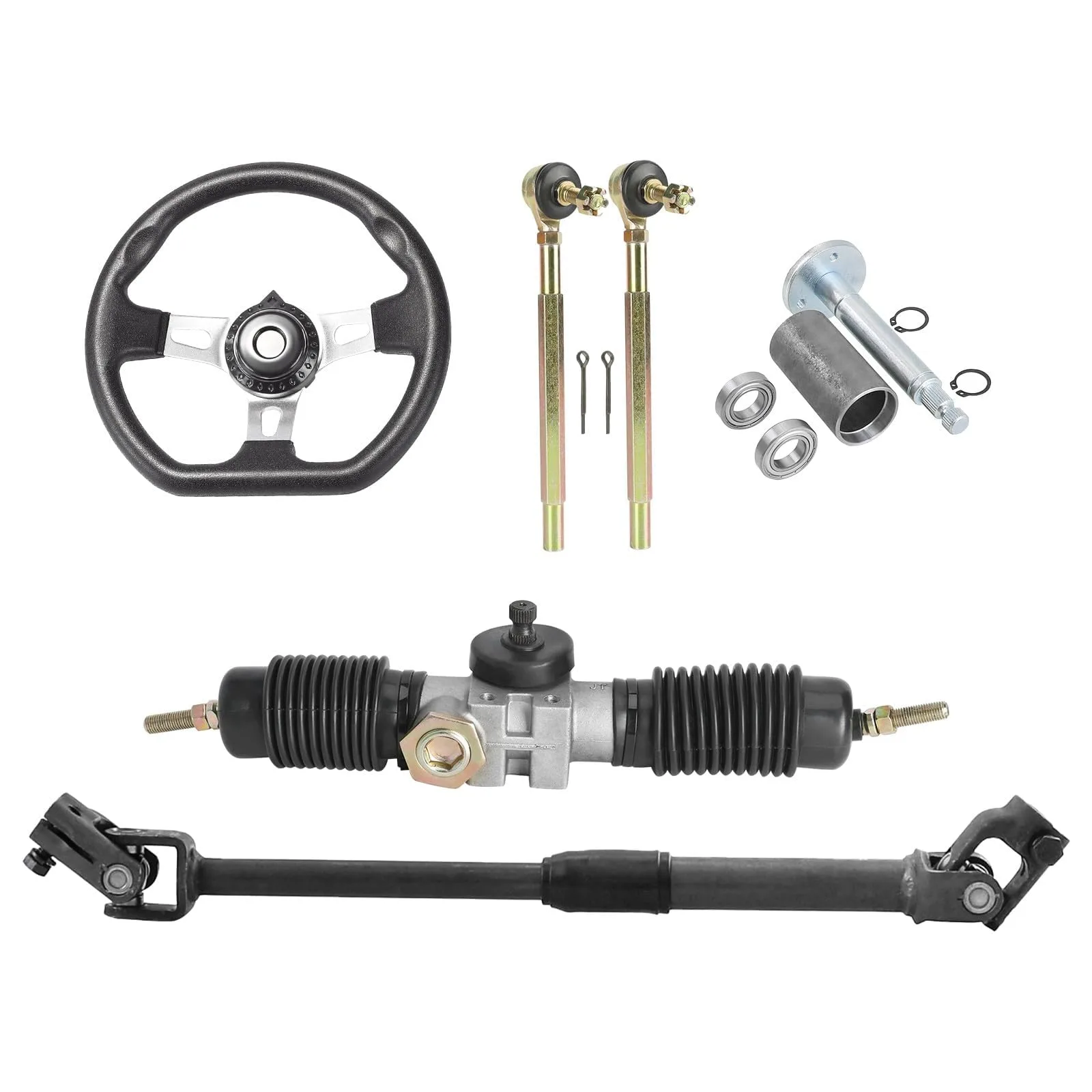

The motor is rated at 4,800 RPM with 2.62 Nm of torque and a 9.5:1 gear ratio. Included suspension and steering components are designed for a configurable DIY vehicle build, with adjustable steering shaft and tie rods plus upper and lower suspension swingarms.
The motor is rated at 4,800 RPM with 2.62 Nm of torque and a 9.5:1 gear ratio. Included suspension and steering components are designed for a configurable DIY vehicle build, with adjustable steering shaft and tie rods plus upper and lower suspension swingarms.
Product Specifications
Brand91.SCS
Manufacturer91SCS
Brand Name91.SCS
Warranty Description1 YEAR
Model Name91.SCS
Colorblack
MaterialLeather
Suggested Usersmens
Part NumberJDUE39CNDKLS
Included ComponentsBrushless Motor Kit
Voltage48V
Motor power1000W
Motor typeBrushless
Motor speed4800 RPM
Torque2.62 Nm
Gear ratio9.5:1

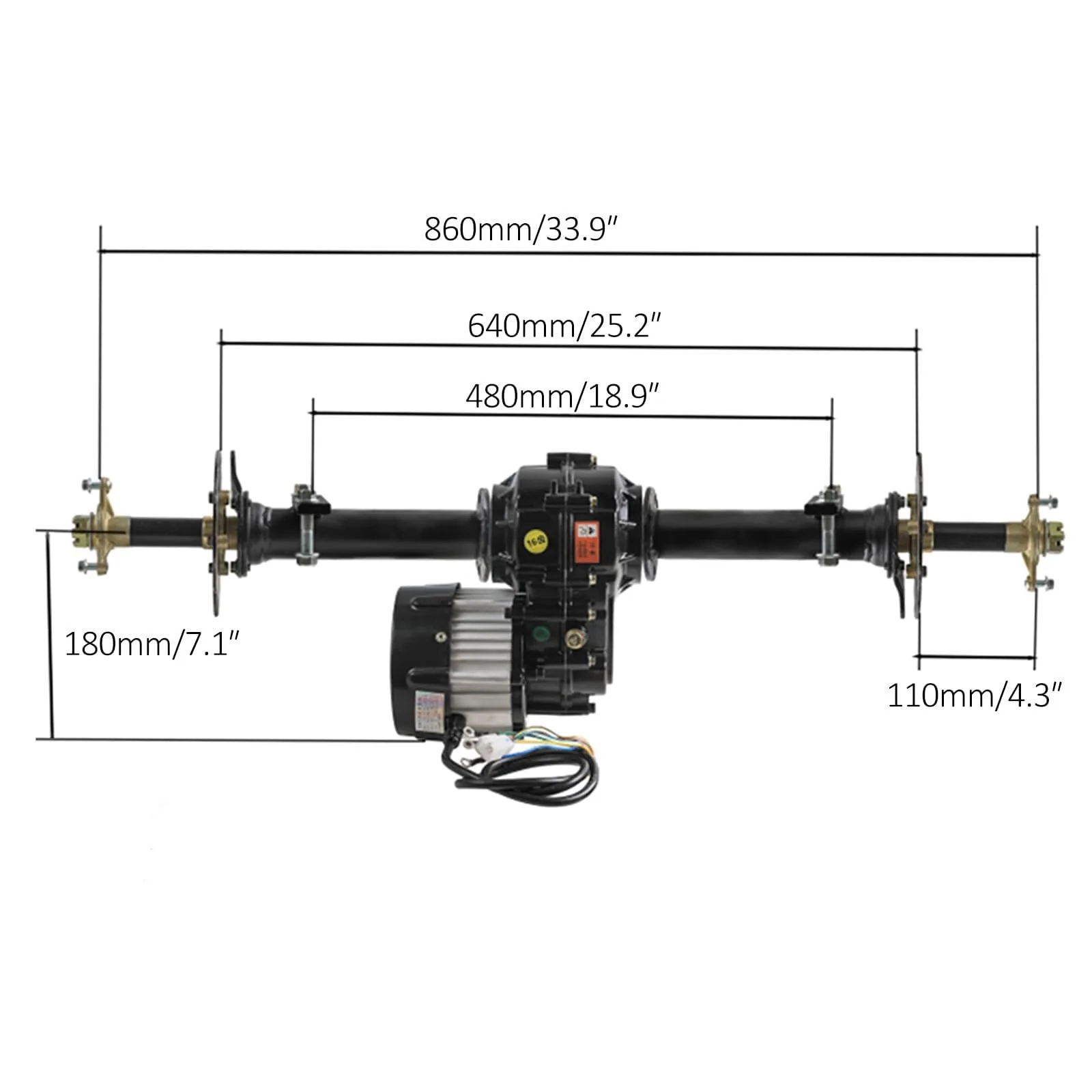

Rear axle length34 inches
Wheel size16x8-7 inches
Wheel bolt pattern3-bolt
Steering shaft length480-580 mm
Shock lengths270 mm and 290 mm
