91.SCS 48V 1000W Electric Rear Axle Kit
$1,195.99
In stock
✓ Free Shipping
48V 1000W electric rear axle kit with differential, suspension, hydraulic brake, controls, batteries, and charger for DIY golf cart conversions and other electric vehicles.
Price shown is the online purchase price. Free shipping · 30-day return policy
Brand91.SCS
Part TypeElectric rear axle kit
PositionRear
Product Description

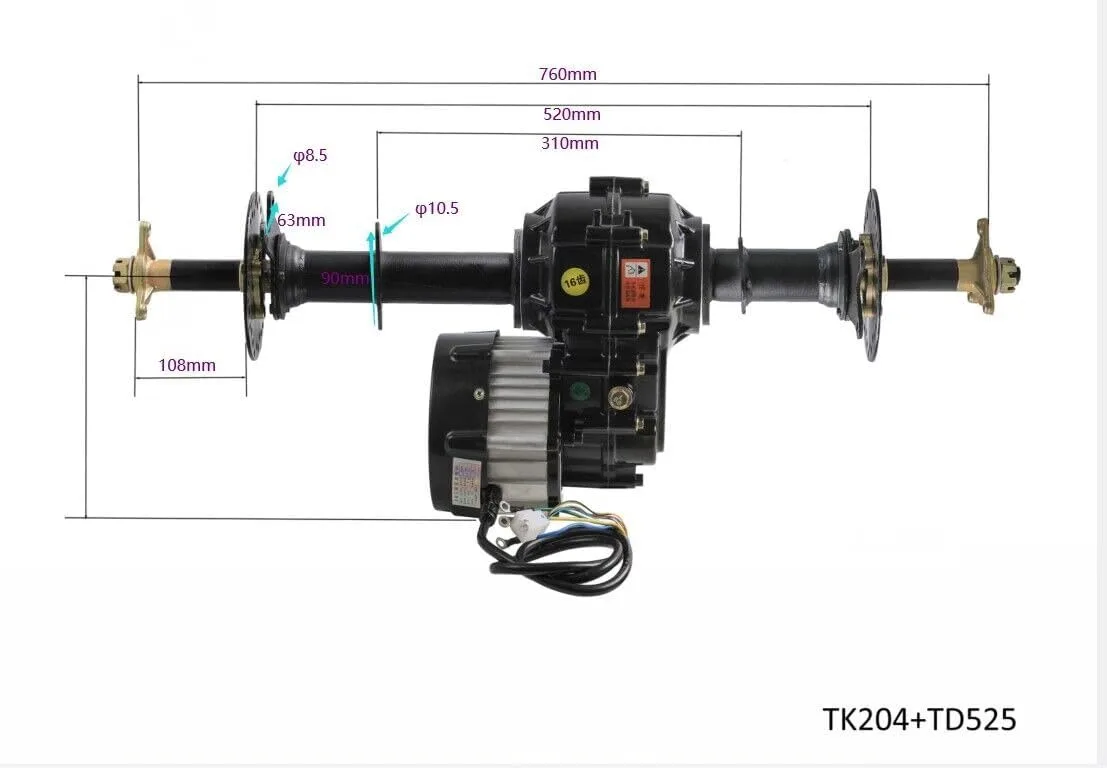

The 91.SCS 30-inch electric rear axle kit combines a 48V 1000W brushless motor, differential gearbox, dual half axles, rear suspension, hydraulic foot brake, and control components for DIY electric vehicle projects. It is described for electric go-karts, trikes, ATVs, quad buggies, racing carts, and golf cart conversions.

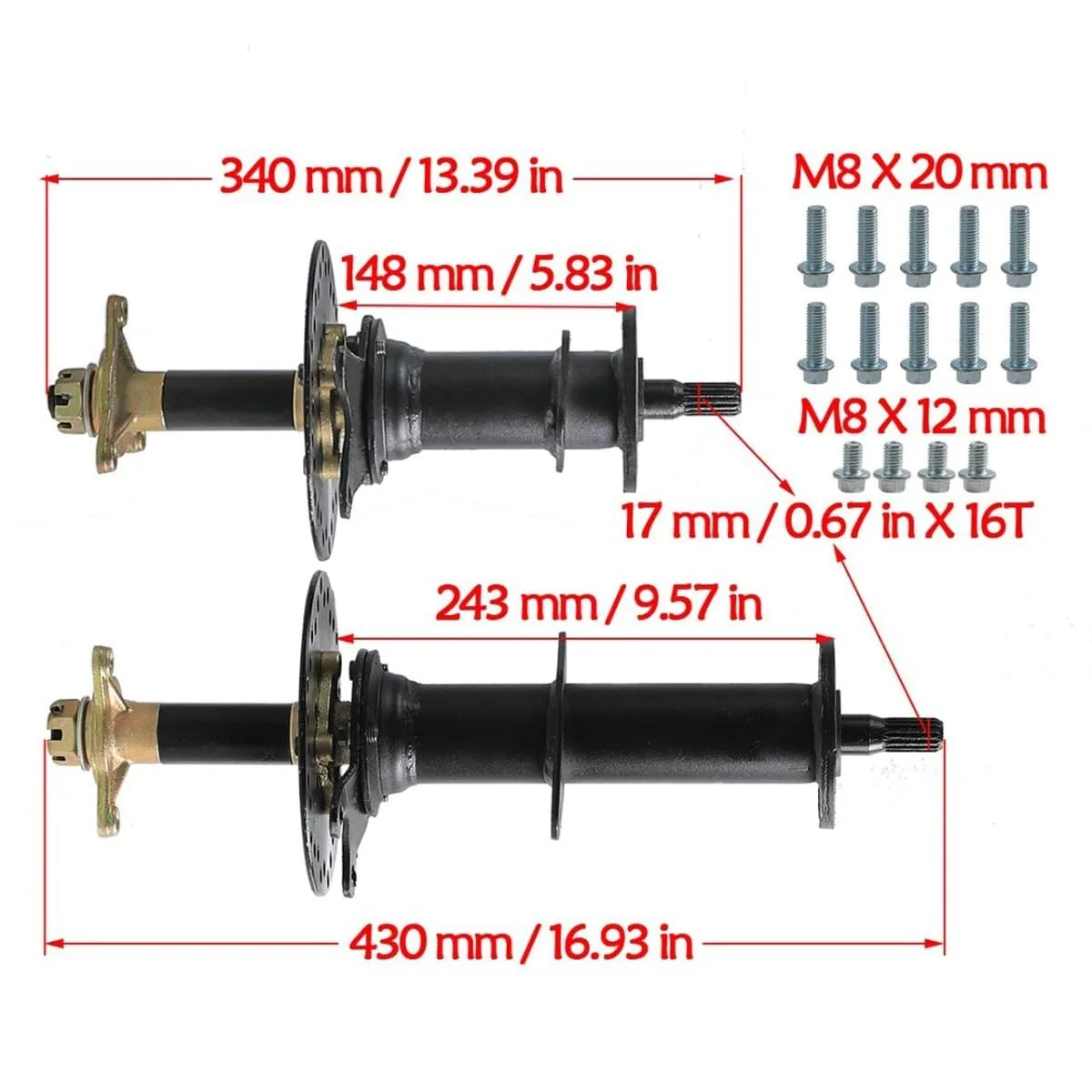

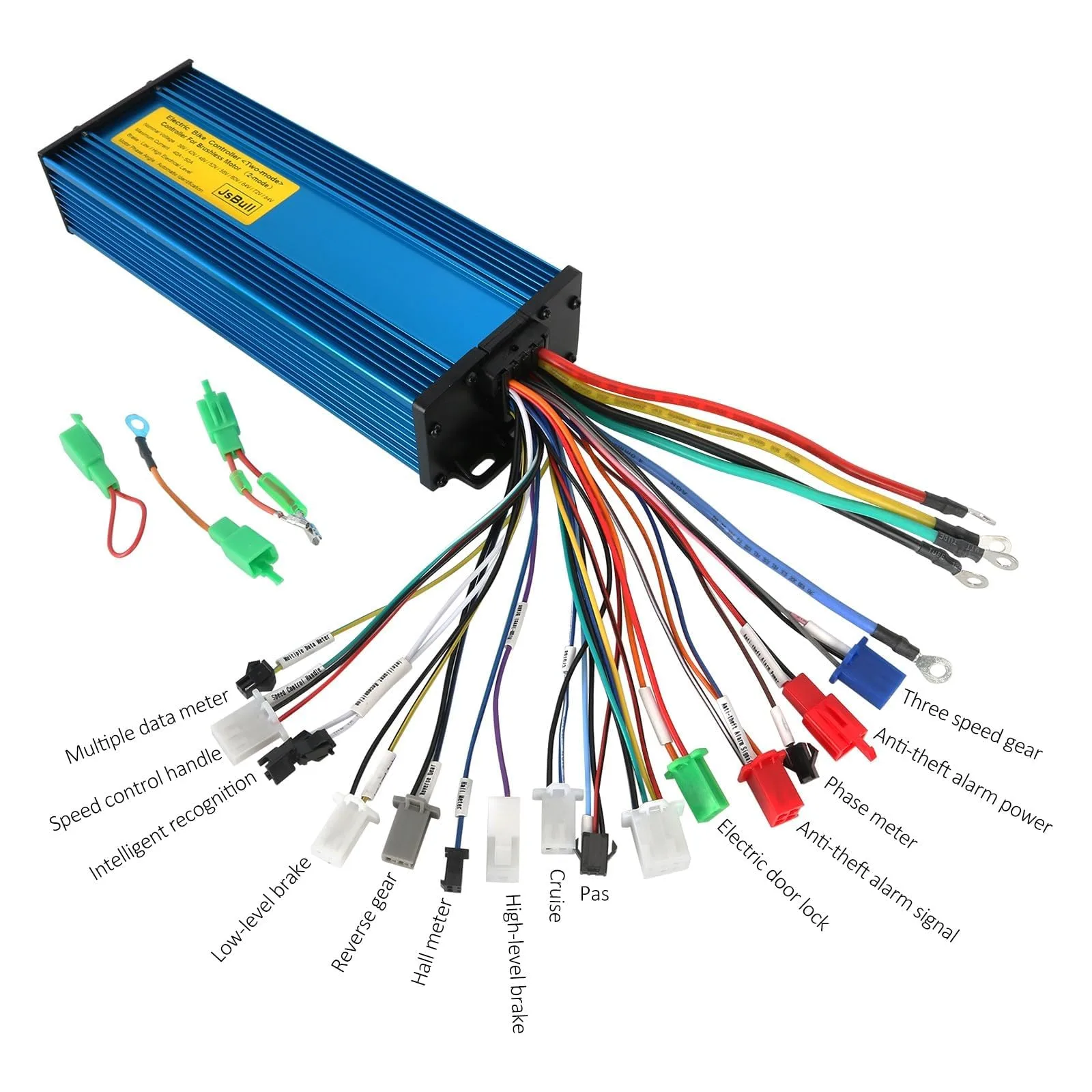

The kit includes a 9.5:1 reduction ratio, 16-tooth spline axle design, 270mm shock absorber rated at 700 lbs, wiring harness, throttle pedal, controller, key switch, forward/reverse selector, 3-speed switch, and power indicator. A 48V battery setup consisting of four 12V 12Ah batteries and a charger is also included.
The kit includes a 9.5:1 reduction ratio, 16-tooth spline axle design, 270mm shock absorber rated at 700 lbs, wiring harness, throttle pedal, controller, key switch, forward/reverse selector, 3-speed switch, and power indicator. A 48V battery setup consisting of four 12V 12Ah batteries and a charger is also included.
Product Specifications
Brand91.SCS
Manufacturer91SCS
Brand Name91.SCS
Warranty Description1 YEAR
Model Name91.SCS
Colorblack
MaterialLeather
Suggested Usersmens
Included ComponentsBrushless Motor Kit
System voltage48V
Motor power1000W
Motor typeBrushless DC
Motor speedUp to 4800 RPM
Motor torque2.62Nm
Gear ratio9.5:1
Axle design16-tooth spline axle
Shock absorber length270mm
Shock absorber rating700 lbs
Battery setupFour 12V 12Ah batteries
Brake typeHydraulic foot brake
ColorBlack
Warranty1 year
