91.SCS 48V 1000W Golf Cart DIY Vehicle Kit
$1,231.99
In stock
✓ Free Shipping
Complete 91.SCS DIY kit with a 48V 1000W motor, 34-inch rear axle, wheels, steering, brakes, suspension, and seat.
Price shown is the online purchase price. Free shipping · 30-day return policy
Brand91.SCS
MPN / Part NumberJSUE930CNF058-
Part TypeComplete DIY electric vehicle kit
Product Description

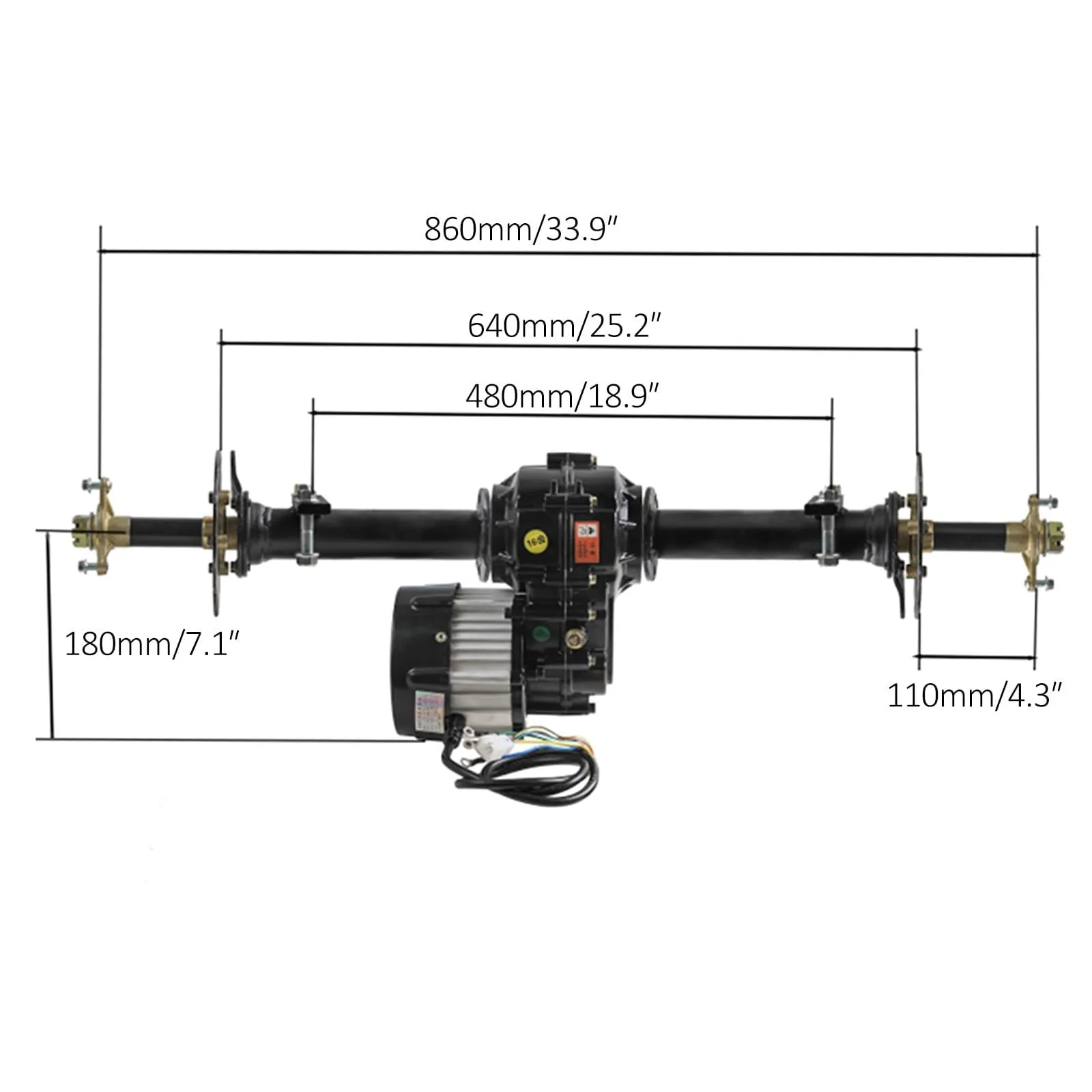

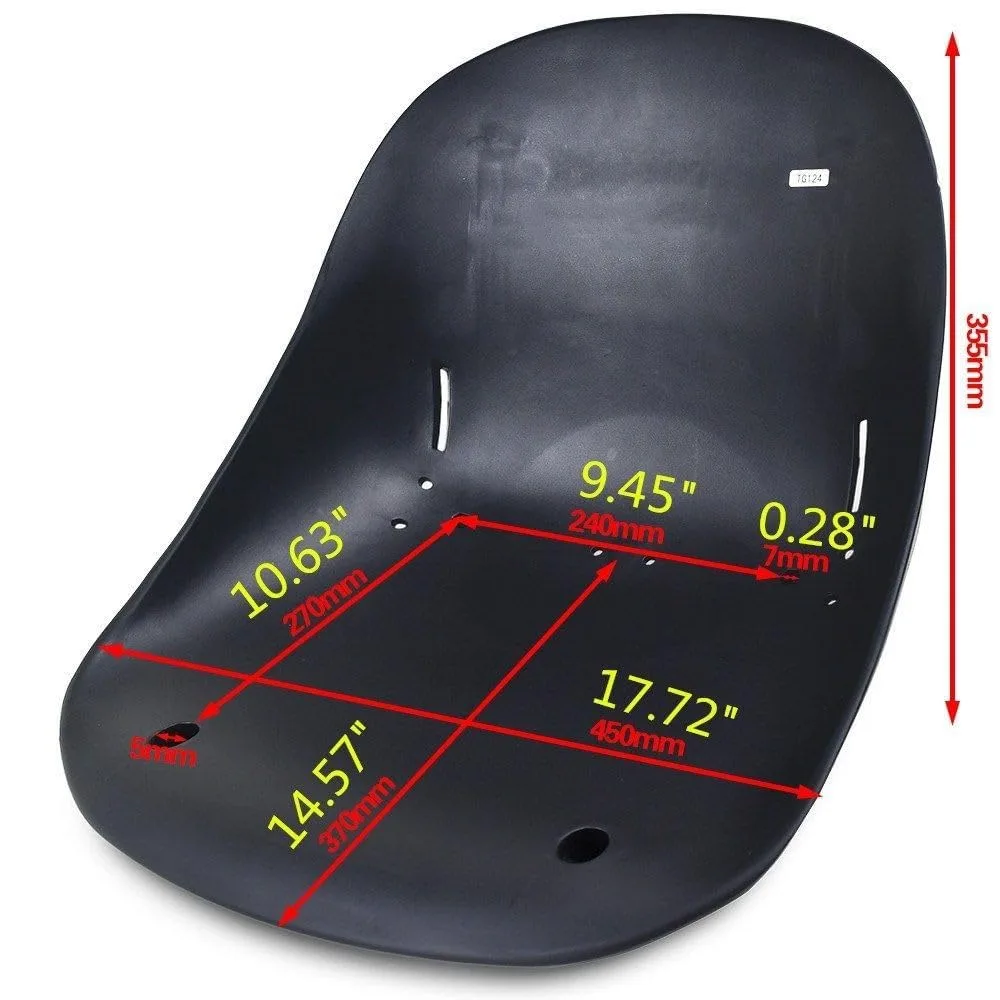

The 91.SCS complete DIY electric vehicle kit includes a 48V 1000W motor, 34-inch rear axle, 7-inch wheels, steering components, suspension, brakes, and a seat for building or upgrading a golf cart, go-kart, ATV, UTV, buggy, or drift trike. The motor is rated at 4,800 RPM with 2.62 Nm of torque and a 9.5:1 gear ratio.
The kit includes four 16x8-7 wheels with a 3-bolt pattern and 78 mm bolt distance, 190 mm shocks, an adjustable steering rack with tie rods, and a 270 mm steering wheel. Its product part number is JSUE930CNF058-.
The kit includes four 16x8-7 wheels with a 3-bolt pattern and 78 mm bolt distance, 190 mm shocks, an adjustable steering rack with tie rods, and a 270 mm steering wheel. Its product part number is JSUE930CNF058-.
Product Specifications
Brand91.SCS
Manufacturer91SCS
Brand Name91.SCS
Warranty Description1 YEAR
Model Name91.SCS
Colorblack
MaterialLeather
Suggested Usersmens
Part NumberJSUE930CNF058-
Included ComponentsBrushless Motor Kit
Motor voltage48V
Motor power1000W
Motor speed4800 RPM
Motor torque2.62 Nm
Gear ratio9.5:1
Rear axle length34 inches
Wheel size16x8-7
Wheel quantity4
Wheel bolt pattern3-bolt
Wheel bolt distance78 mm
Shock length190 mm
Steering wheel diameter270 mm
ColorBlack
MaterialLeather
Warranty1 year
