91.SCS 60V 2500W Brushless Motor Kit KSOE-3-D
$2,110.99
In stock
✓ Free Shipping
60V 2500W 91.SCS brushless motor kit with differential, controller, batteries, suspension, axles, hubs, and brake components for DIY golf cart and off-road vehicle builds.
Price shown is the online purchase price. Free shipping · 30-day return policy
Brand91.SCS
MPN / Part NumberKSOE-3-D
Part TypeBrushless motor kit
PositionRear
Product Description

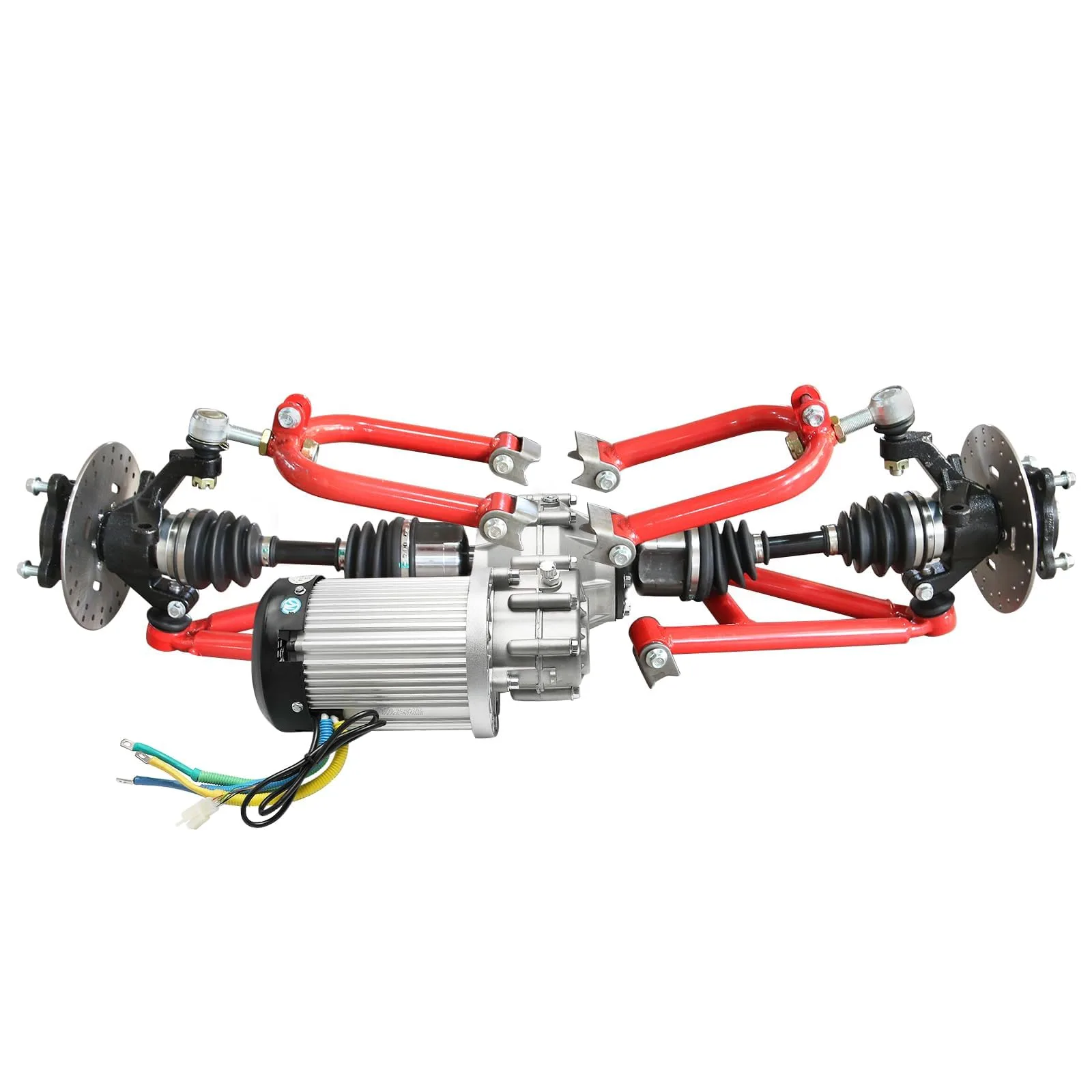

The 91.SCS KSOE-3-D is a 60V 2500W brushless motor kit for DIY golf carts, go-karts, ATVs, quad buggies, and 4WD UTV builds. It includes a brushless DC motor, 12:1 differential gearbox, 110A controller, batteries, charger, and control components.

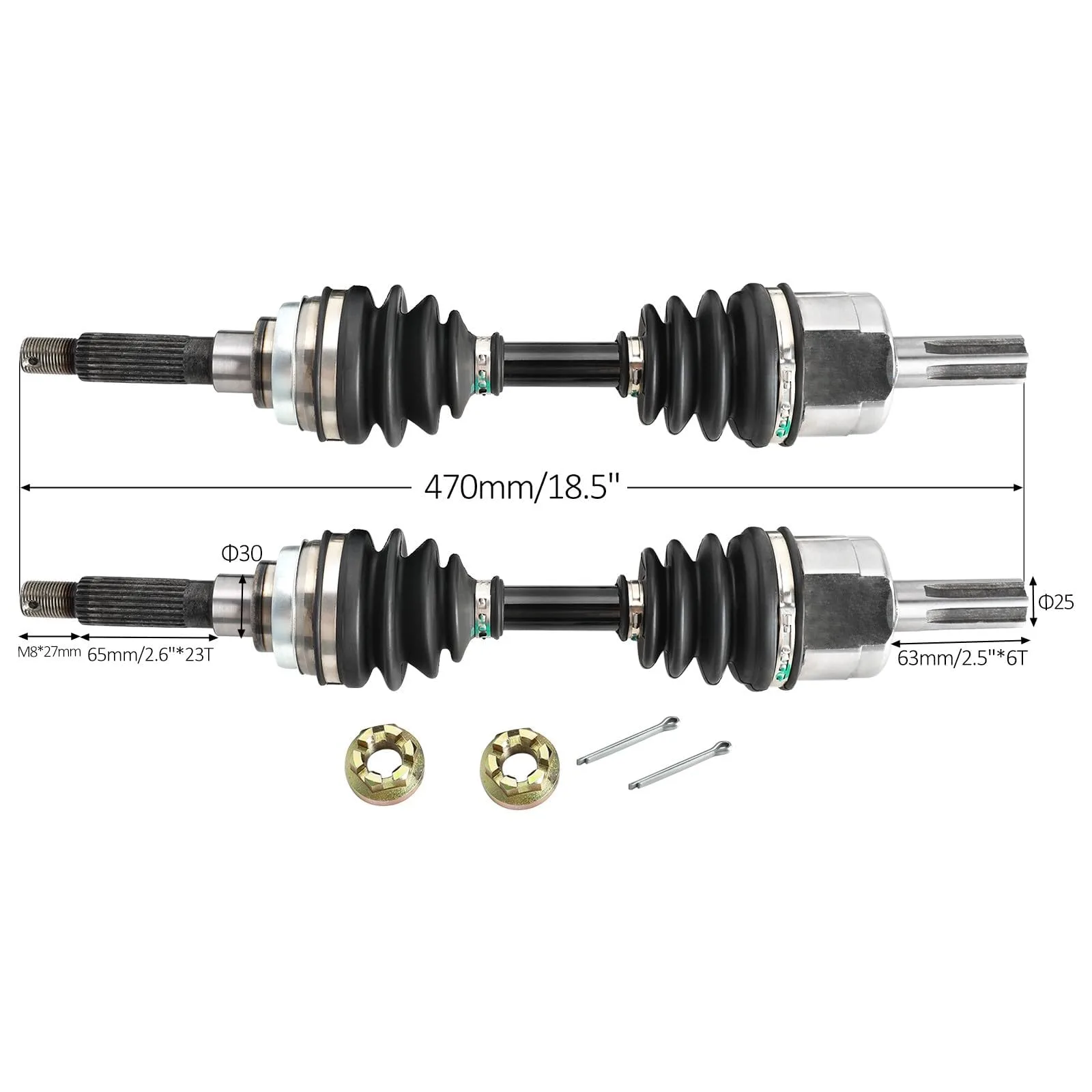

The kit also includes CV axles, upper and lower swingarms, shock mounts, tie rod ends, steering spindles, wheel hubs, disc rotors, an LCD meter, switches, a brake switch, keylock, and foot pedal. The motor is specified at 5000 RPM with maximum torque of 400 Nm.
The kit also includes CV axles, upper and lower swingarms, shock mounts, tie rod ends, steering spindles, wheel hubs, disc rotors, an LCD meter, switches, a brake switch, keylock, and foot pedal. The motor is specified at 5000 RPM with maximum torque of 400 Nm.
Product Specifications
Brand91.SCS
Manufacturer91SCS
Brand Name91.SCS
Warranty Description1 YEAR
Model Name91.SCS
Colorblack
MaterialLeather
Suggested Usersmens
Part NumberKSOE-3-D
Included ComponentsBrushless Motor Kit
Part NumberKSOE-3-D
Motor voltage60V
Motor power2500W
Motor typeBrushless DC
Rated speed5000 RPM
Maximum torque400 Nm
Differential gearbox ratio12:1
Controller110A

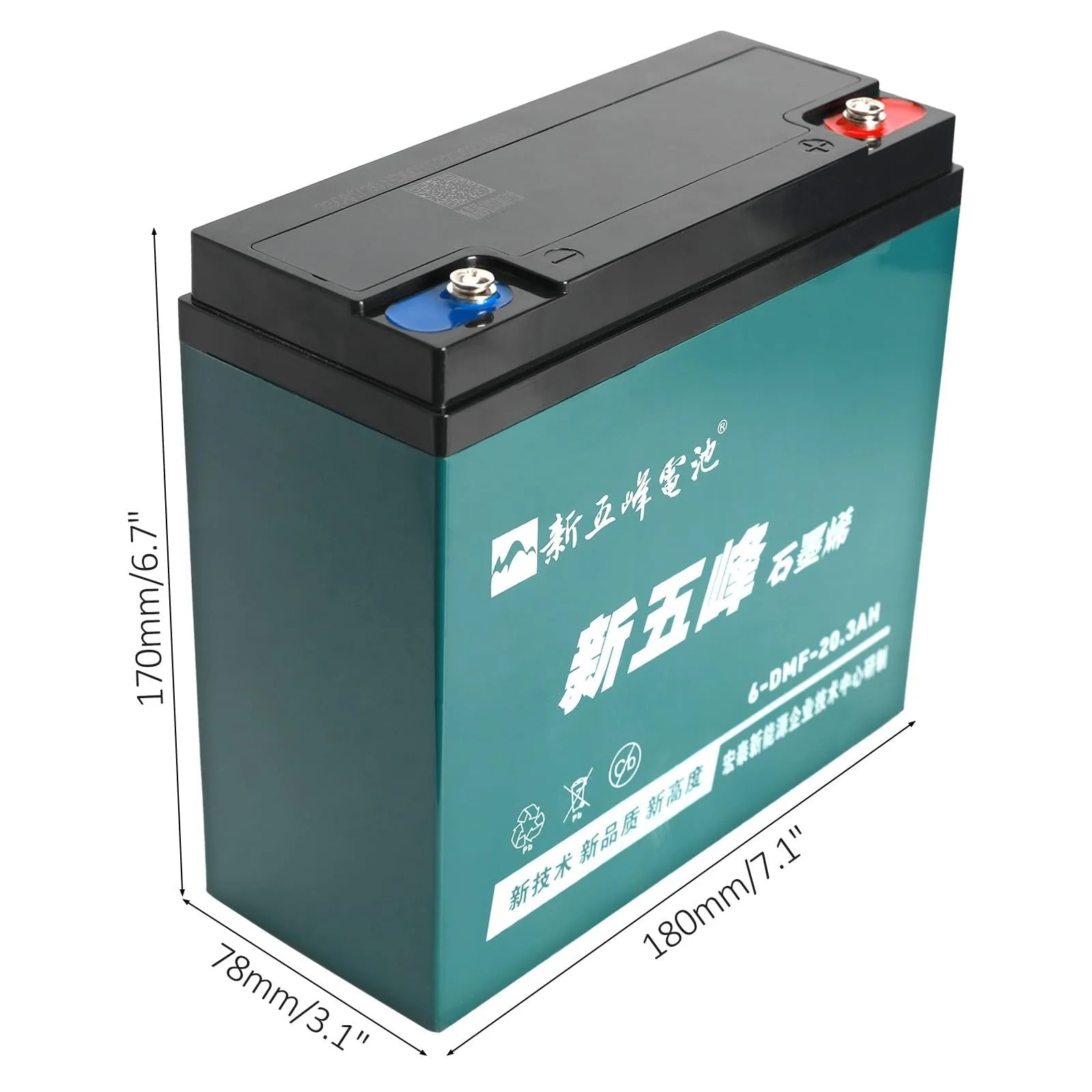

Batteries5 x 12V 20Ah
Upper swingarm length210 mm / 8.3 in
Lower swingarm length280 mm / 11 in
Included wheel hubs2 x 4-stud wheel hubs
Included disc rotors2
ColorBlack
