91.SCS 72V 1500W 4WD Electric Go-Kart Kit
$2,397.99
In stock
✓ Free Shipping
Complete 91.SCS 4WD electric go-kart kit with a 72V 1500W brushless motor, axle, suspension, brakes, steering, wheels, and wiring components.
Price shown is the online purchase price. Free shipping · 30-day return policy
Brand91.SCS
Part TypeComplete electric go-kart kit
Product Description

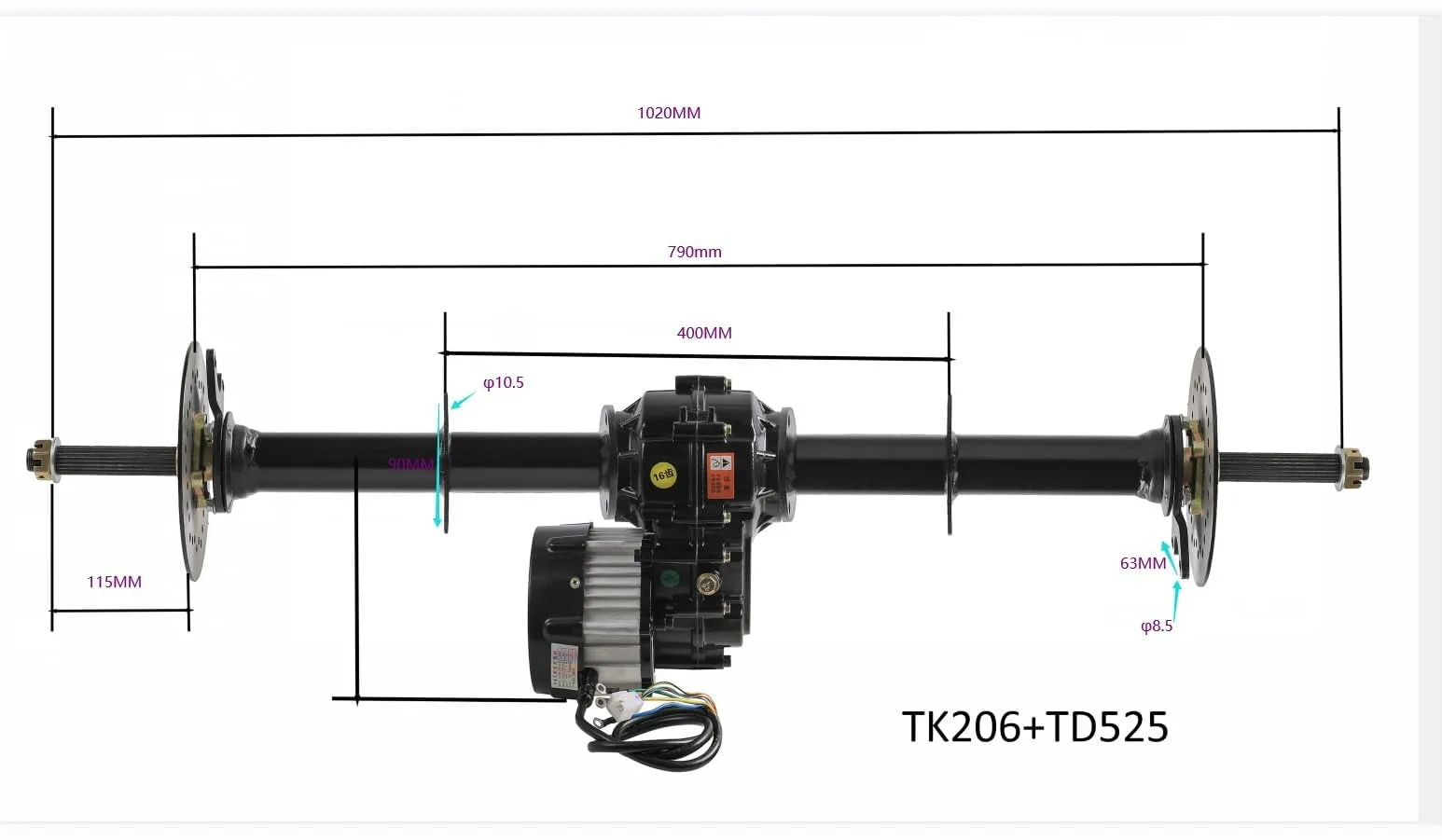

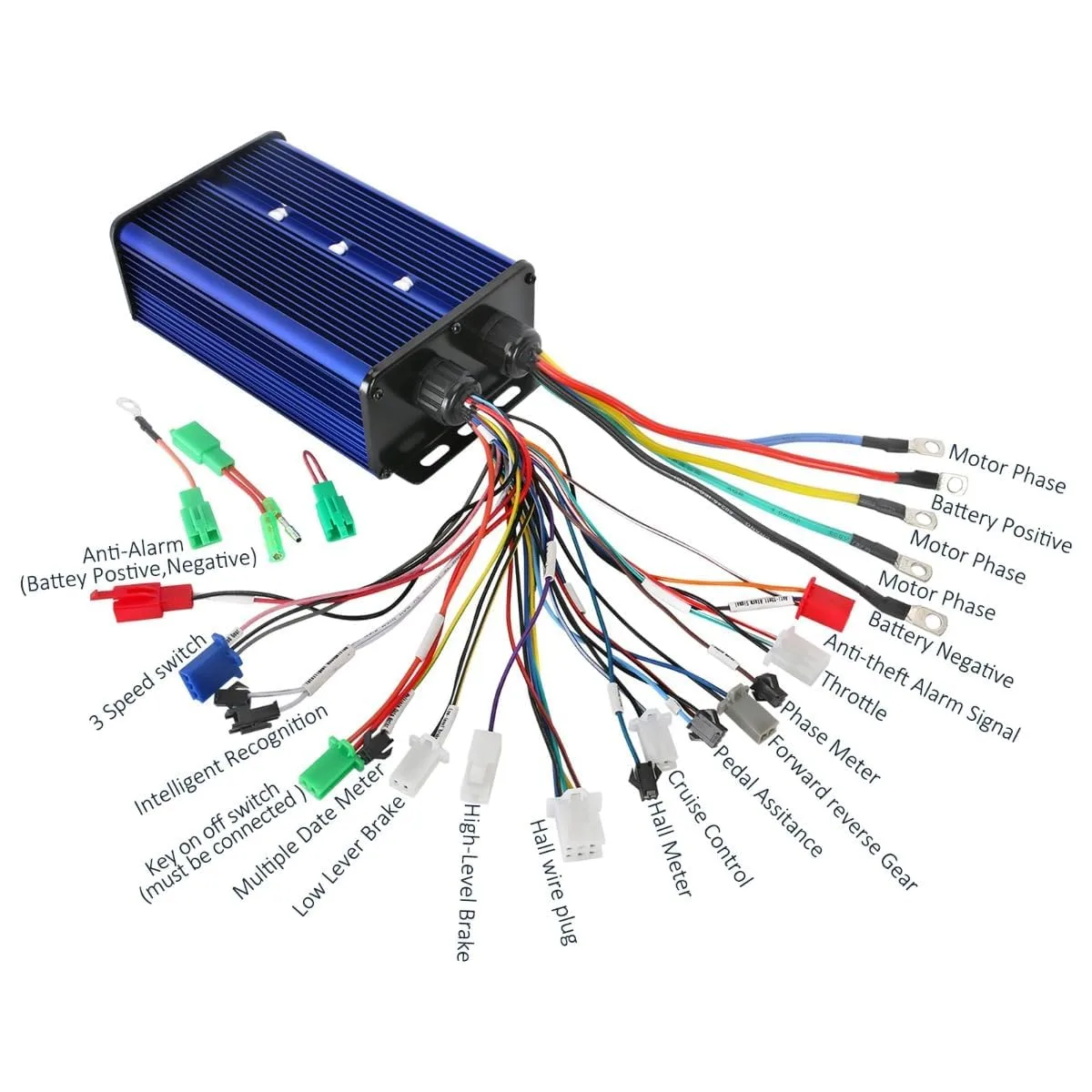

The 91.SCS Complete 4WD Electric Go-Kart Kit is a DIY build package for electric go-karts, quads, buggies, ATVs, trikes, and golf carts. It includes a 72V 1500W brushless motor, brushless speed controller, 40-inch rear axle, front drive shaft, 8-inch wheels, steering assembly, suspension, hydraulic twin disc brakes, and a complete wiring harness.
The motor is specified at 4,800 rpm and 3.3 Nm of torque with a 9.5:1 gear ratio. The kit also includes controls and build components such as a throttle pedal, ignition switch, brake switch, charging port, power indicator, steering wheel, seat, and 3-speed switch.
The motor is specified at 4,800 rpm and 3.3 Nm of torque with a 9.5:1 gear ratio. The kit also includes controls and build components such as a throttle pedal, ignition switch, brake switch, charging port, power indicator, steering wheel, seat, and 3-speed switch.
Product Specifications
Brand91.SCS
Manufacturer91SCS
Brand Name91.SCS
Warranty Description1 YEAR
Model Name91.SCS
Colorblack
MaterialLeather
Suggested Usersmens
Included ComponentsBrushless Motor Kit
Motor voltage72V
Motor power1500W
Motor typeBrushless DC
Motor speed4800rpm
Motor torque3.3Nm
Gear ratio9.5:1
Rear axle width40 inches
Rear axle capacityOver 500 lbs
Drive axle16-tooth
Front shock length250mm
Rear shock length270mm
Brake systemHydraulic twin disc brakes

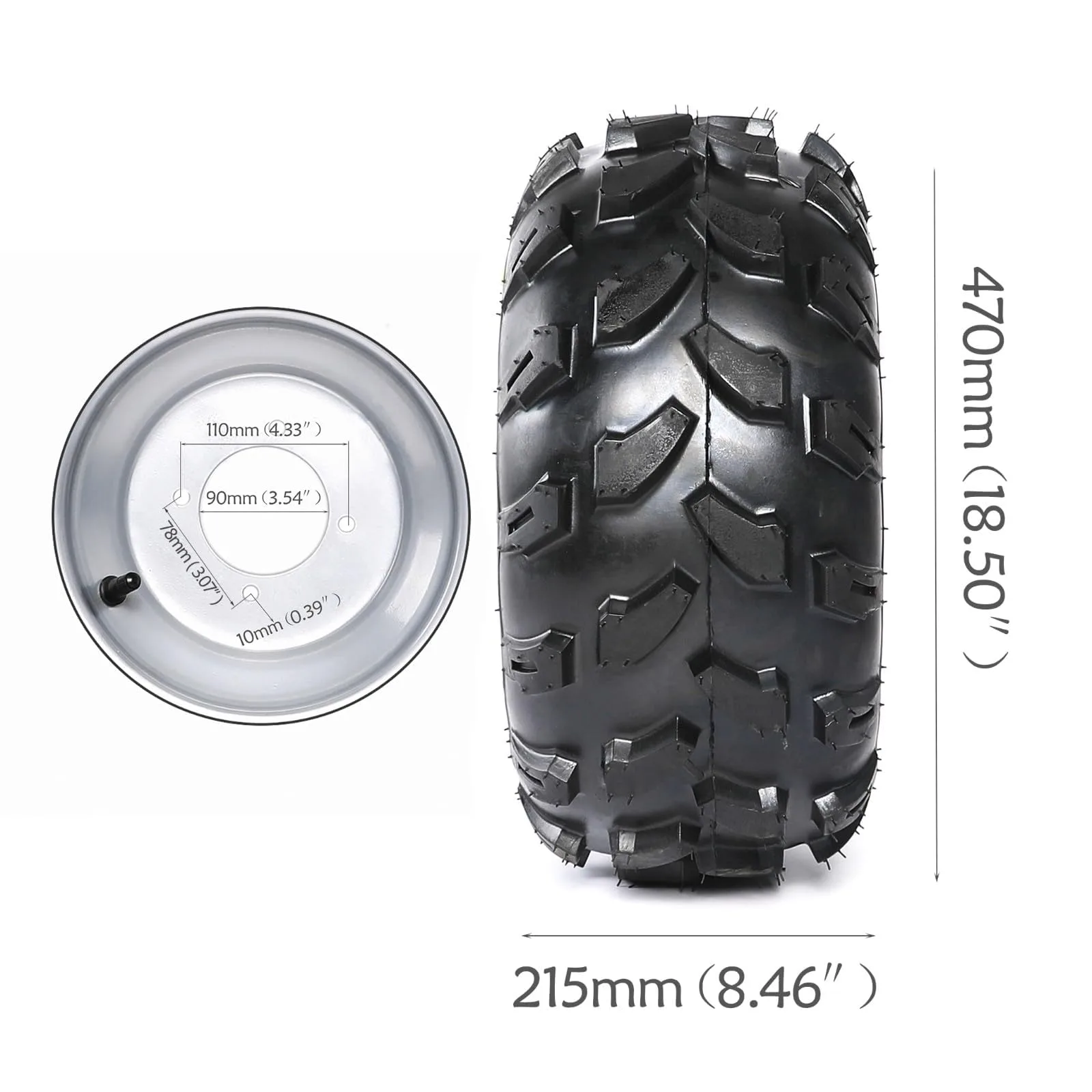

Wheel size8 inches
ColorBlack
MaterialLeather
Warranty description1 YEAR
