Astibym 36-48V 500A Cart Motor Controller P1204M 5305
$217.99
In stock
✓ Free Shipping
36-48V, 500A Astibym cart motor controller for Curtis carts, forklifts, and transport vehicles, with 0-5V throttle input.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandAstibym
MPN / Part NumberAstibymi8g3y9zxf0
OEM / OE Number1204 5305
Part TypeCart motor controller
Product Description

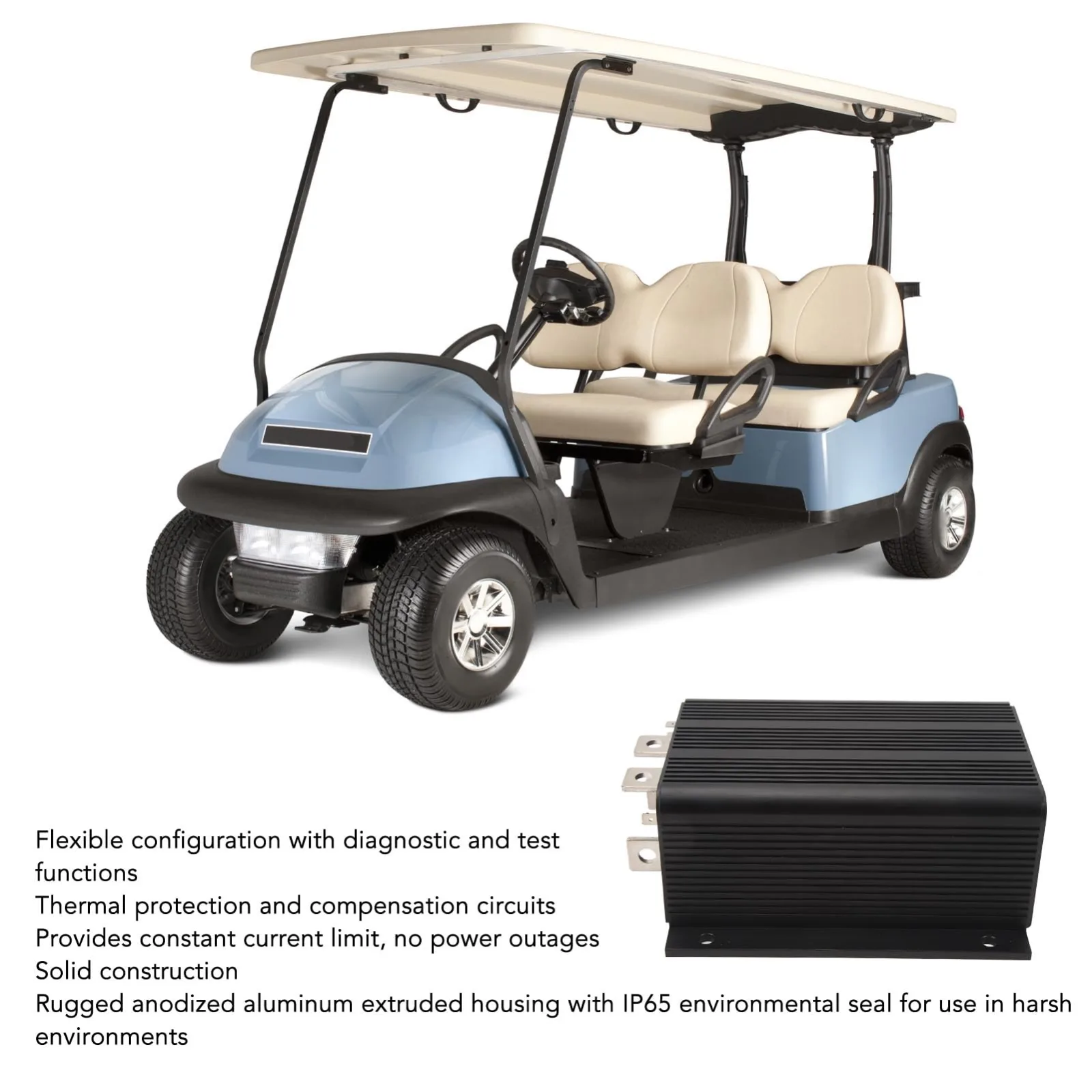

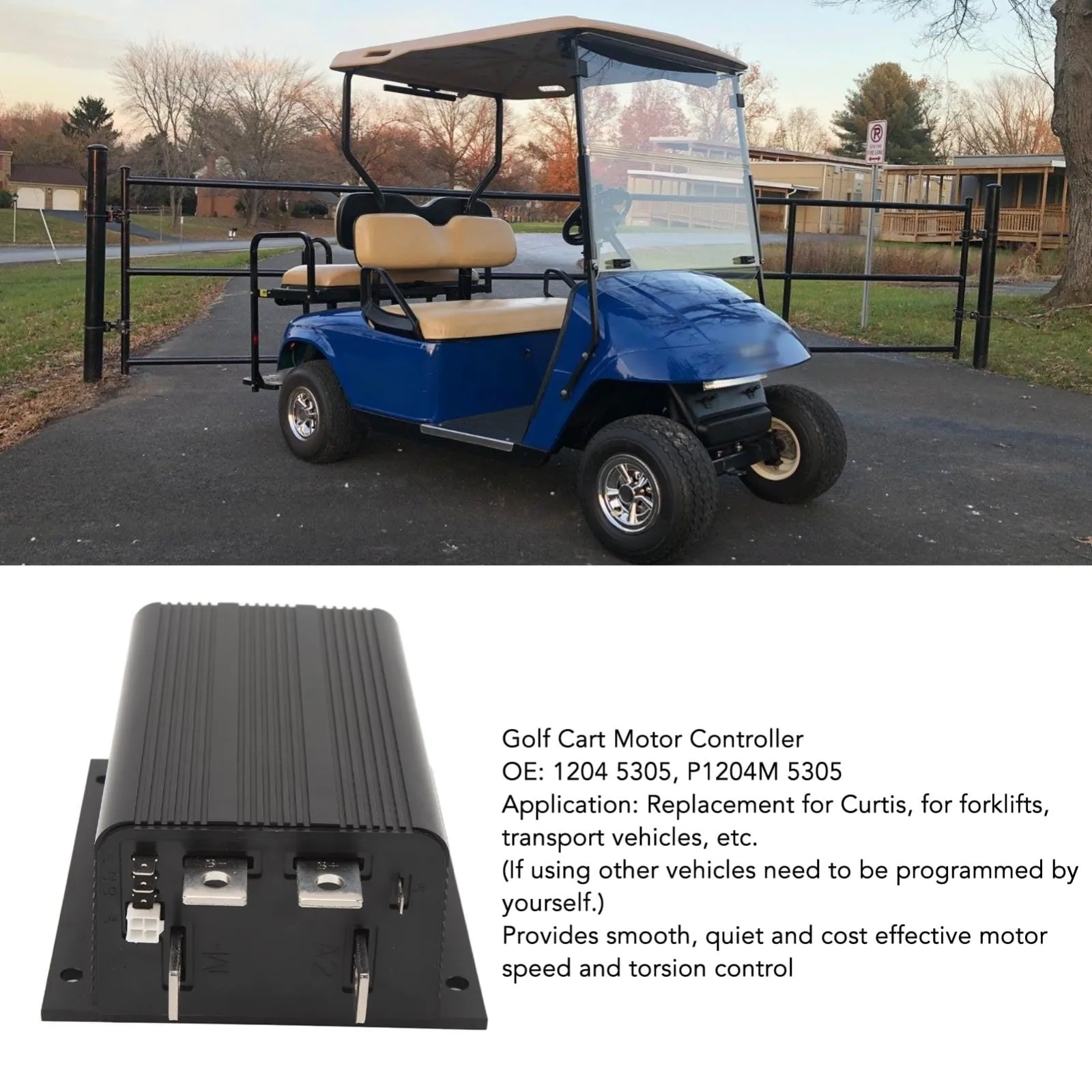

Astibym P1204M 5305 cart motor controller for Curtis carts, forklifts, and transport vehicles. It is designed for 36–48V systems with a 500A current rating and supports 0–5V throttle input.
The controller provides motor speed and torque control, diagnostic and testing capabilities, constant-current limiting, and thermal protection. It uses push-in control-signal connectors and solid copper bus connections for power. Other applications may require programming.
The controller provides motor speed and torque control, diagnostic and testing capabilities, constant-current limiting, and thermal protection. It uses push-in control-signal connectors and solid copper bus connections for power. Other applications may require programming.
Product Specifications
BrandAstibym
ManufacturerAstibym
ModelAstibymi8g3y9zxf0
Operating voltage36-48V
Current rating500A
Throttle type0-5V
MaterialAluminum
2-minute current rating325A
5-second boost current rating358A
1-hour current rating140A
PWM operating frequency15.6 kHz
Plug brakeYes
Electrical isolation from heat sinkMinimum 500 VAC
KSI input current70 mA without programmer; 130 mA with programmer
Status LED output currentLess than 2 mA
