Buggies Unlimited 36V E-Z-GO TXT Motor 2.25 HP 7146
$832.99
In stock
✓ Free Shipping
36V, 2.25 HP replacement DC motor for 1995-2010 E-Z-GO TXT PDS/DCS shunt golf carts, with a 19-spline shaft. Part number 7146; replaces AMD DE2-4007 and listed OEM numbers.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandBuggies Unlimited
MPN / Part Number7146
OEM / OE Number73445-G02
Part TypeGolf cart drive motor
Product Description

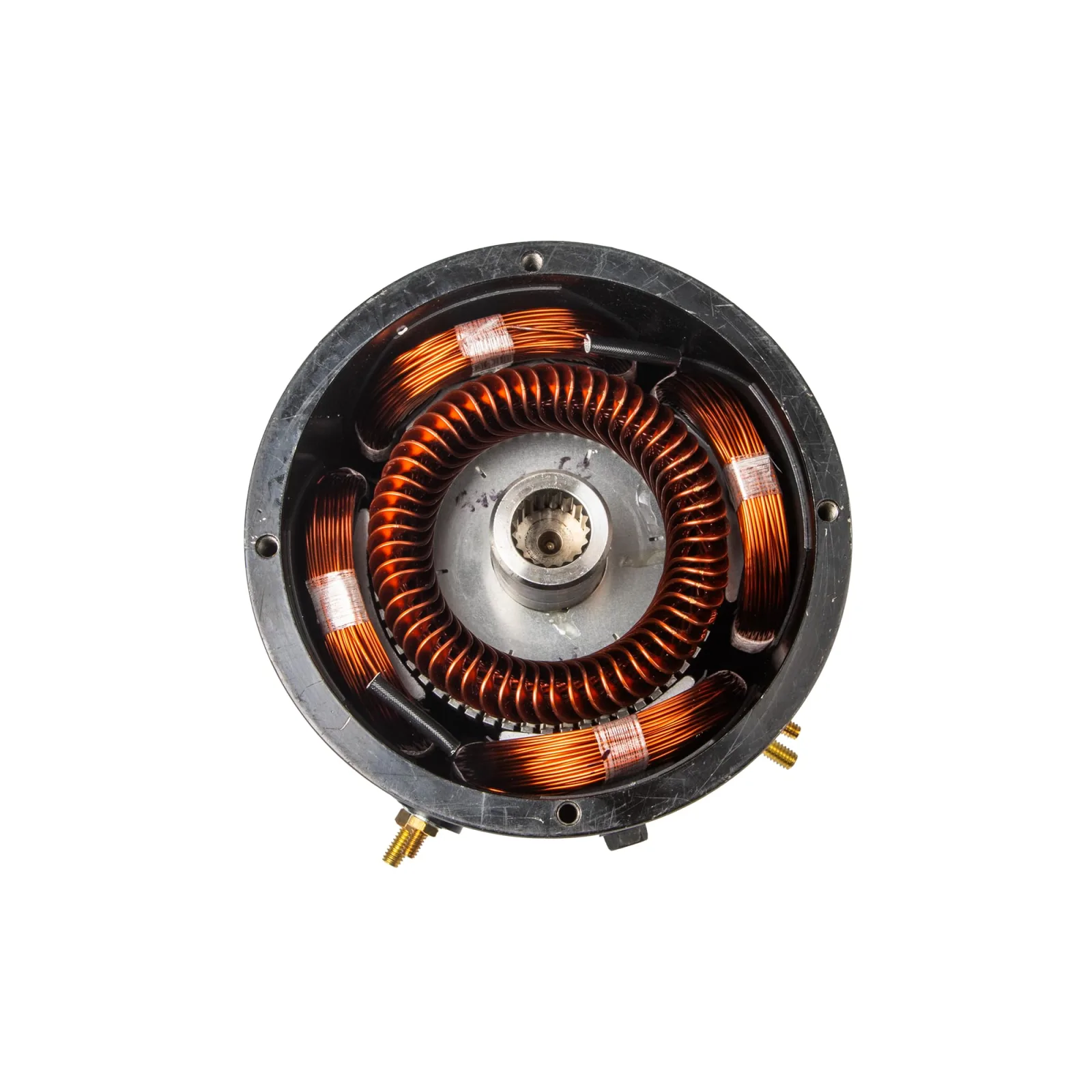

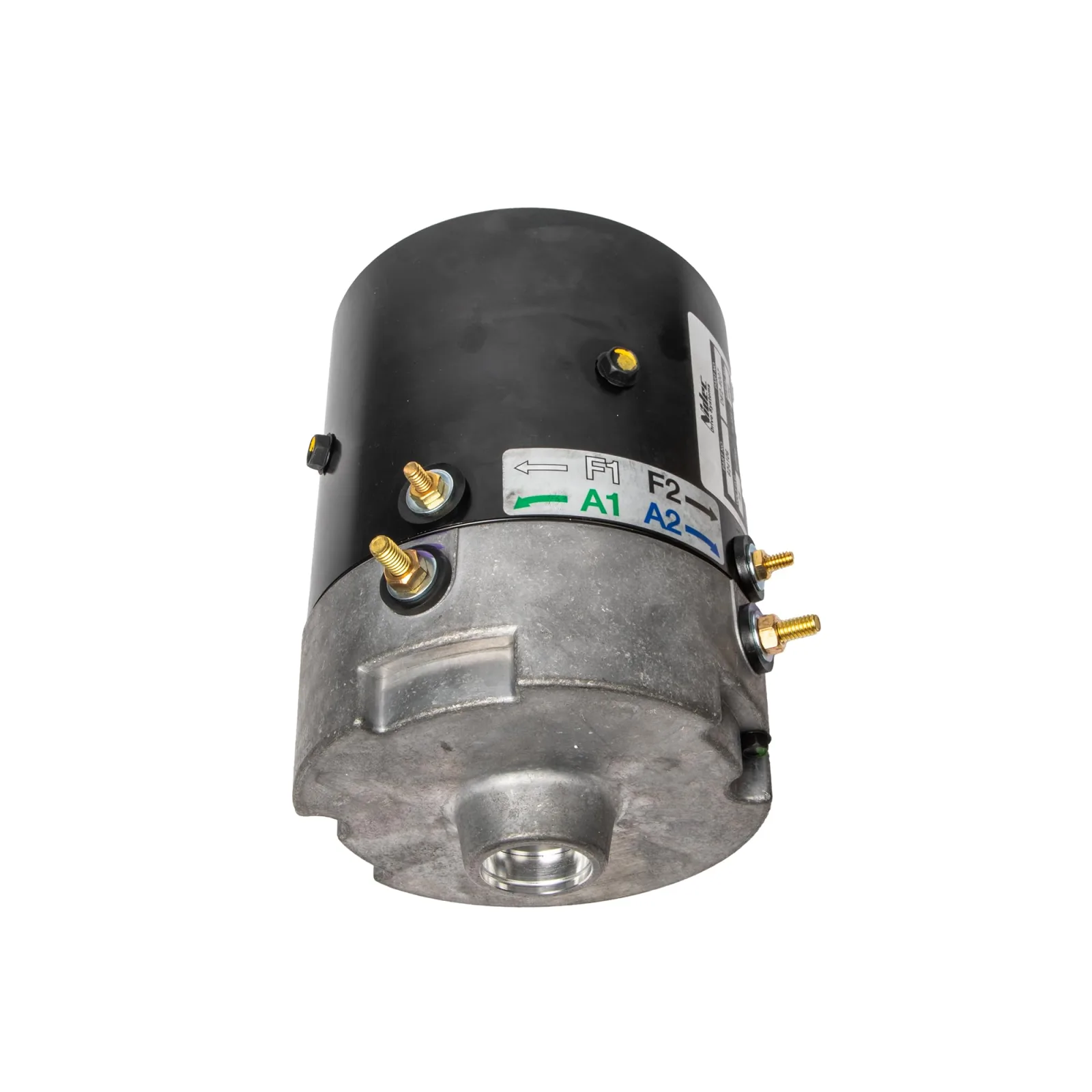

This Buggies Unlimited replacement DC motor is designed for 36-volt E-Z-GO TXT PDS/DCS shunt golf carts built from 1995 through 2010. It is rated at 2.25 horsepower and 2,565 RPM, with a 19-spline steel shaft and copper coils.
The motor is identified by part number 7146 and AMD part DE2-4007. It replaces OEM numbers 73445-G02, 73124G08, and 624106. The magnet and speed sensor are not included.
The motor is identified by part number 7146 and AMD part DE2-4007. It replaces OEM numbers 73445-G02, 73124G08, and 624106. The magnet and speed sensor are not included.
Product Specifications
BrandBuggies Unlimited
ManufacturerBuggiesUnlimited
Voltage36 volts
Horsepower2.25 hp
Rated speed2565 RPM
Shaft spline19 spline
Dimensions8.75 in. long x 6.75 in. wide
Weight46 lb
ManufacturerNivel
Motor typeDC motor
Included componentMotor
Golf Cart Compatibility
| Year | Make | Model | Power / Engine | Variant |
|---|---|---|---|---|
| 1995 | E-Z-GO | TXT | 36V | PDS/DCS shunt with F&R switch on the dash |
| 1996 | E-Z-GO | TXT | 36V | PDS/DCS shunt with F&R switch on the dash |
| 1997 | E-Z-GO | TXT | 36V | PDS/DCS shunt with F&R switch on the dash |
| 1998 | E-Z-GO | TXT | 36V | PDS/DCS shunt with F&R switch on the dash |
| 1999 | E-Z-GO | TXT | 36V | PDS/DCS shunt with F&R switch on the dash |
| 2000 | E-Z-GO | TXT | 36V | PDS/DCS shunt with F&R switch on the dash |
| 2001 | E-Z-GO | TXT | 36V | PDS/DCS shunt with F&R switch on the dash |
| 2002 | E-Z-GO | TXT | 36V | PDS/DCS shunt with F&R switch on the dash |
| 2003 | E-Z-GO | TXT | 36V | PDS/DCS shunt with F&R switch on the dash |
| 2004 | E-Z-GO | TXT | 36V | PDS/DCS shunt with F&R switch on the dash |
| 2005 | E-Z-GO | TXT | 36V | PDS/DCS shunt with F&R switch on the dash |
| 2006 | E-Z-GO | TXT | 36V | PDS/DCS shunt with F&R switch on the dash |
| 2007 | E-Z-GO | TXT | 36V | PDS/DCS shunt with F&R switch on the dash |
| 2008 | E-Z-GO | TXT | 36V | PDS/DCS shunt with F&R switch on the dash |
| 2009 | E-Z-GO | TXT | 36V | PDS/DCS shunt with F&R switch on the dash |
| 2010 | E-Z-GO | TXT | 36V | PDS/DCS shunt with F&R switch on the dash |
Always compare the part number, dimensions, specifications, and compatibility details with your original part before ordering.
