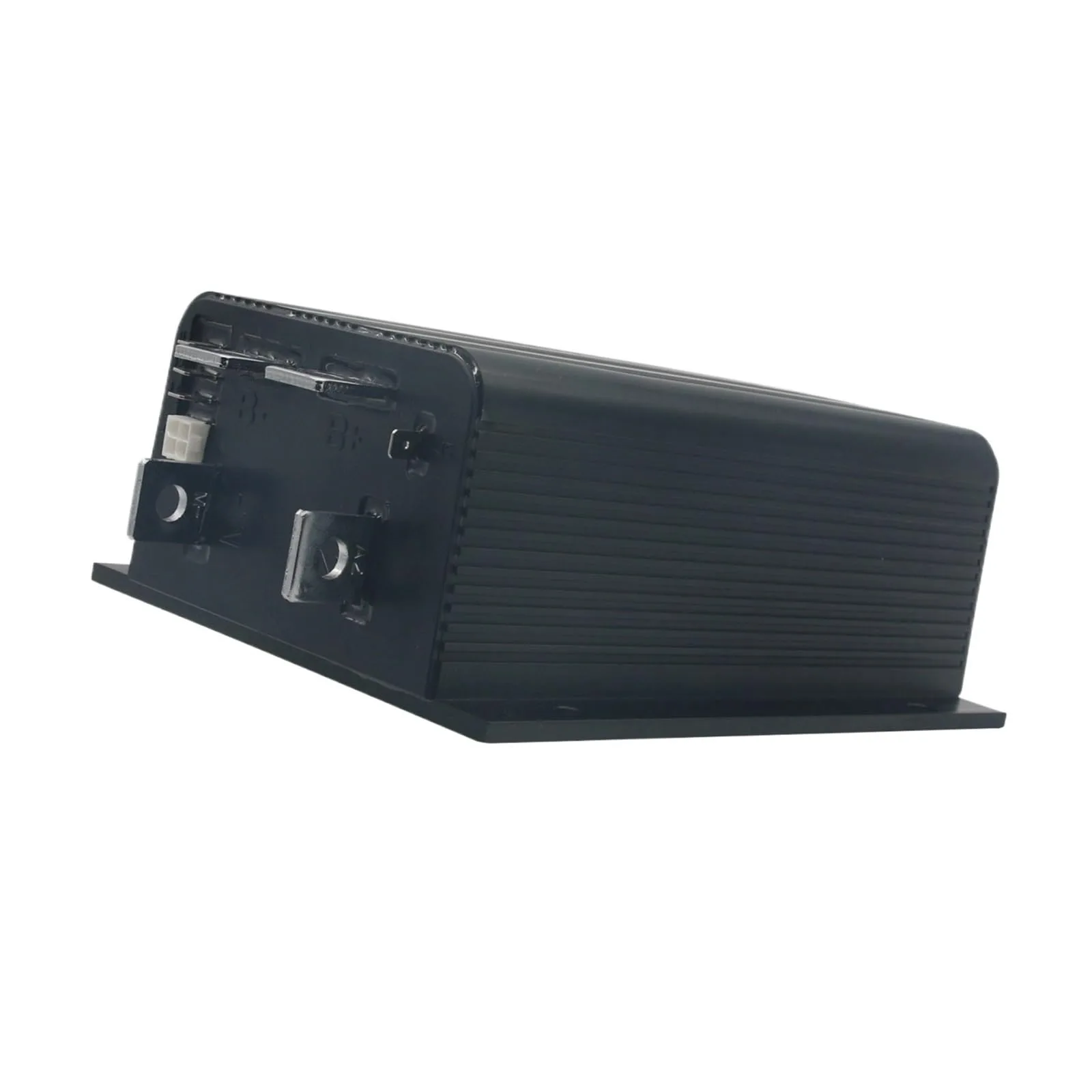

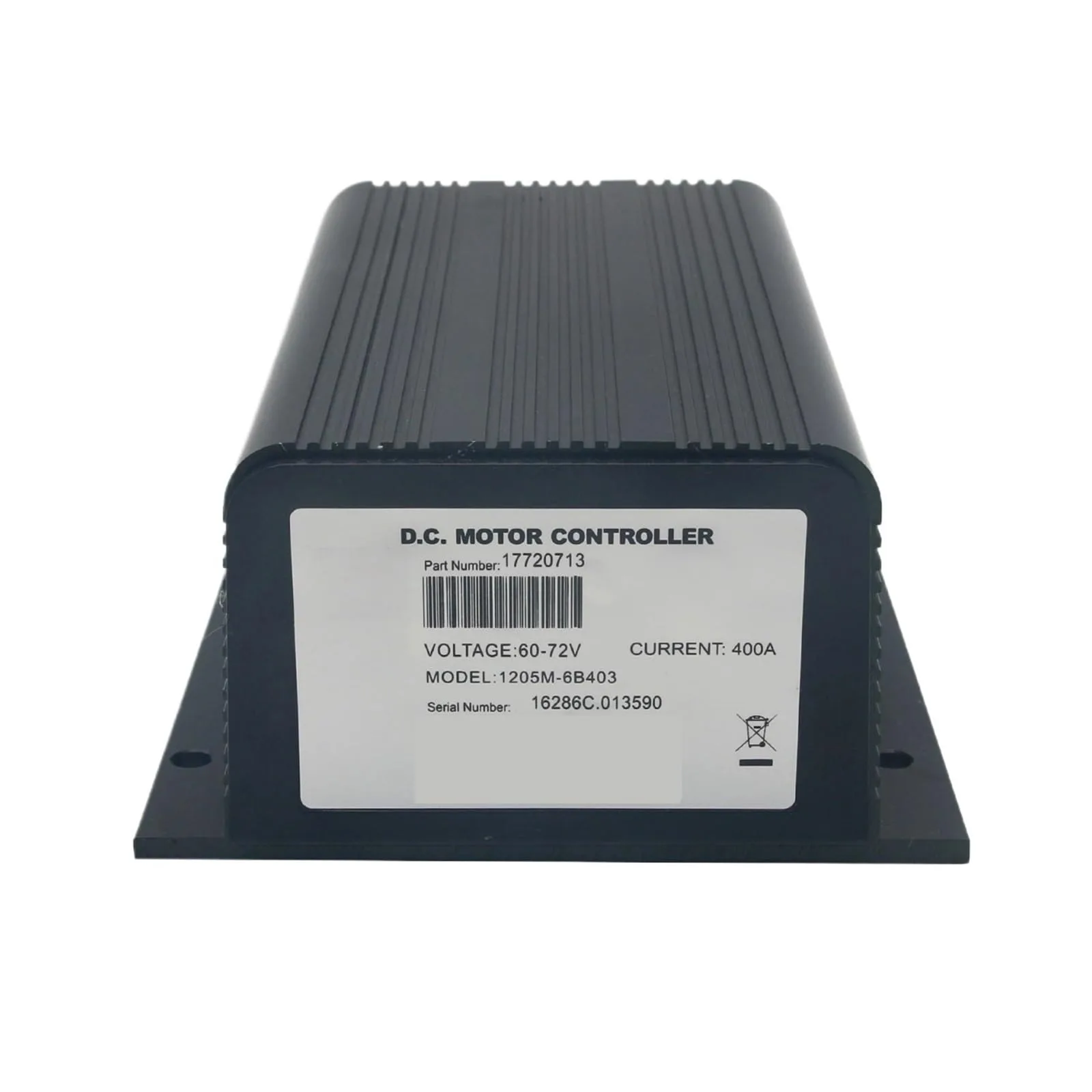

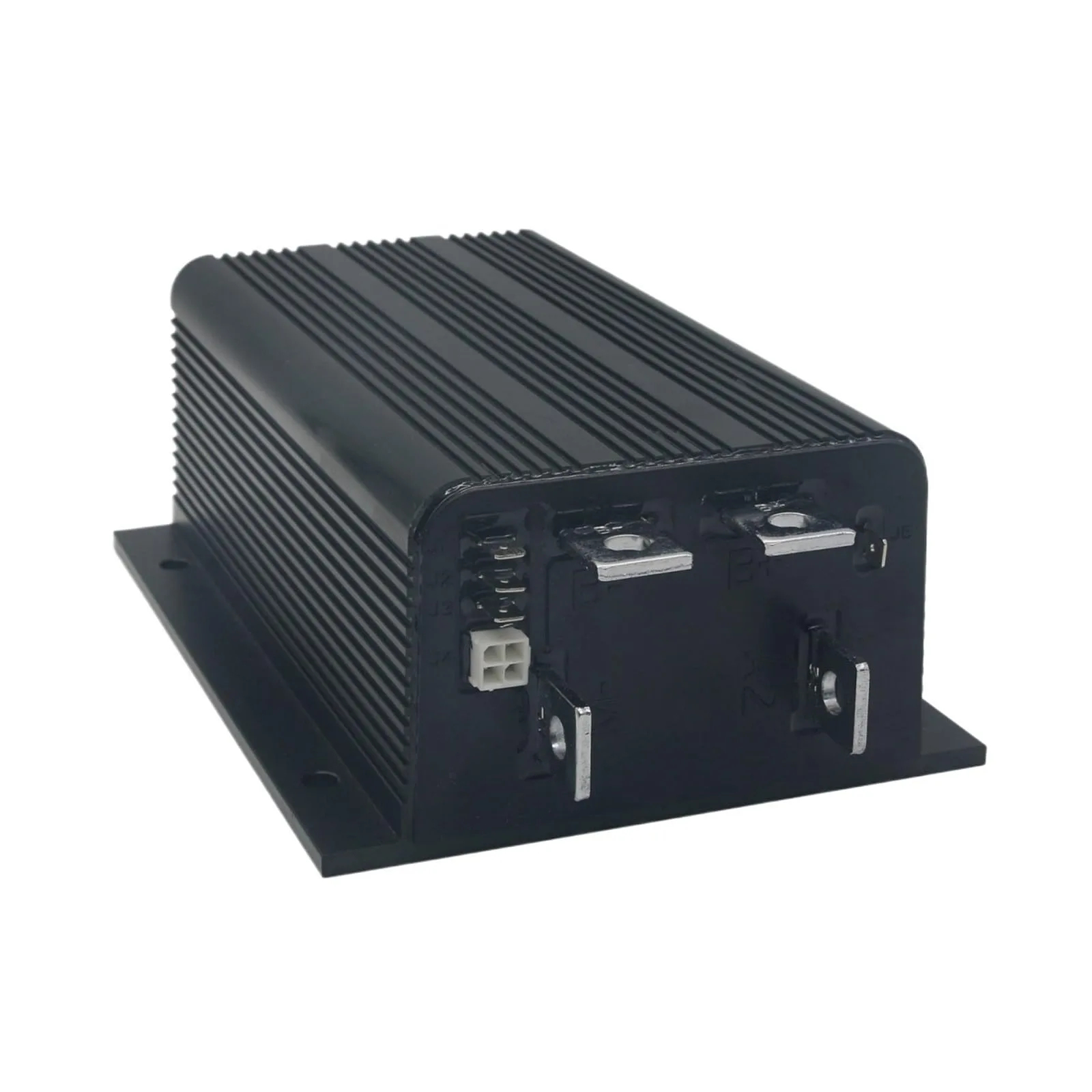

CAARLA 1205M-6B403 60V/72V 400A Motor Controller
$494.99
In stock
✓ Free Shipping
Programmable CAARLA 1205M-6B403 DC series motor controller with 60V/72V operation and a 400A one-minute current rating.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandCAARLA
MPN / Part Number17721701
Part TypeMotor speed controller
Product Description
The CAARLA 1205M-6B403 is a programmable DC series motor speed controller for systems configured for 60V or 72V operation. It provides control of motor speed and torque and supports 0-5k, 5k-0, or 0-5V throttle types, with the default configuration set to 72V, 400A, and 0-5k throttle.
Product Specifications
BrandCAARLA
ManufacturerBrand: CAARLA
Item Model NumberCAARLA
Item Weight5.95 pounds
Controller model1205M-6B403
Part number17721701
Nominal battery voltage60V / 72V
Allowable working range48-72V at 72V setting; 39-60V at 60V setting
Current rating, 1 minute400A
Current rating, 5 minutes275A
Current rating, 1 hour175A
Throttle types0-5k, 5k-0, or 0-5V
Default configuration72V / 400A / 0-5k throttle
Plugs brakingYes
Programmable with1313-4431 handheld programmer or 1314-4402 PC programming station
Item weight5.95 pounds
