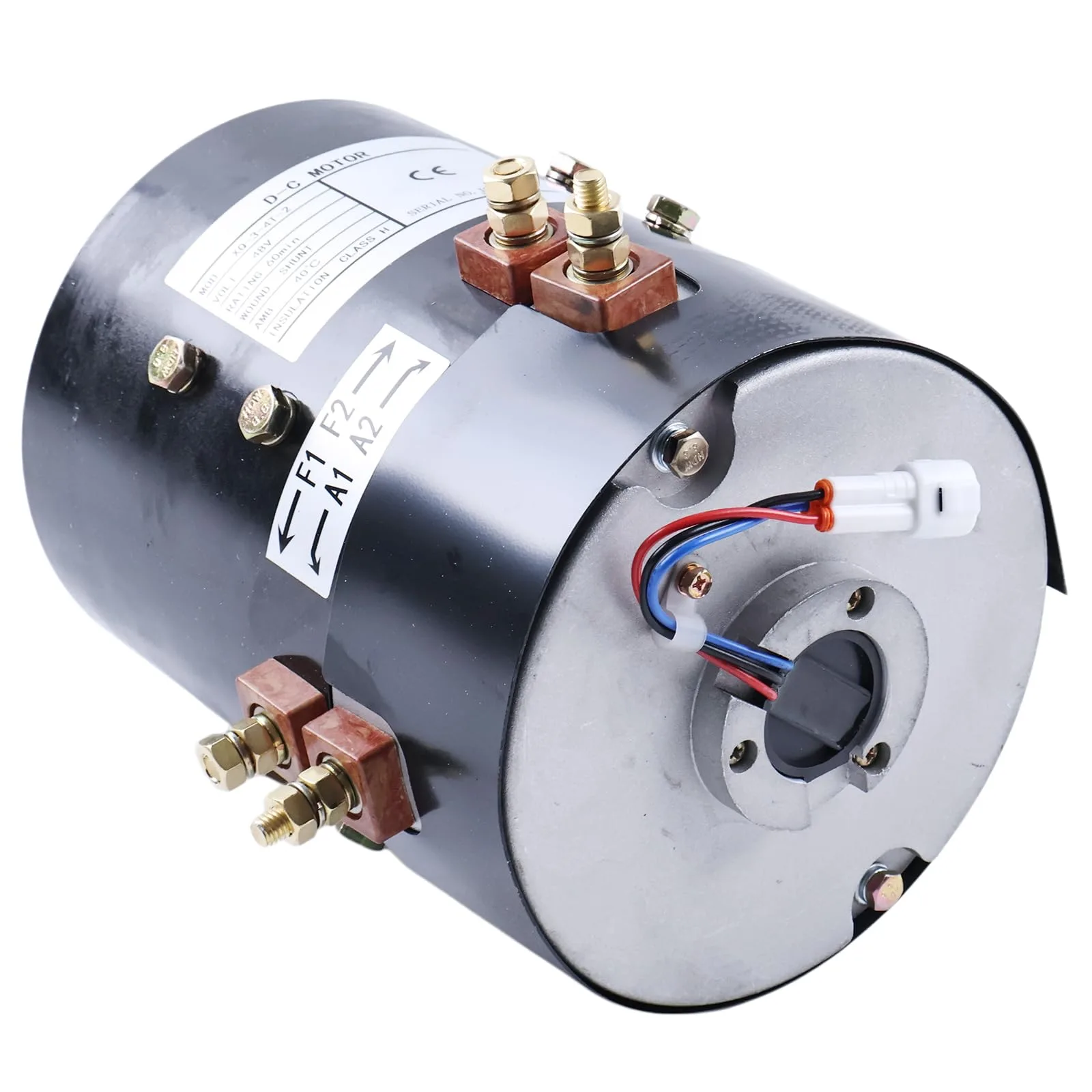

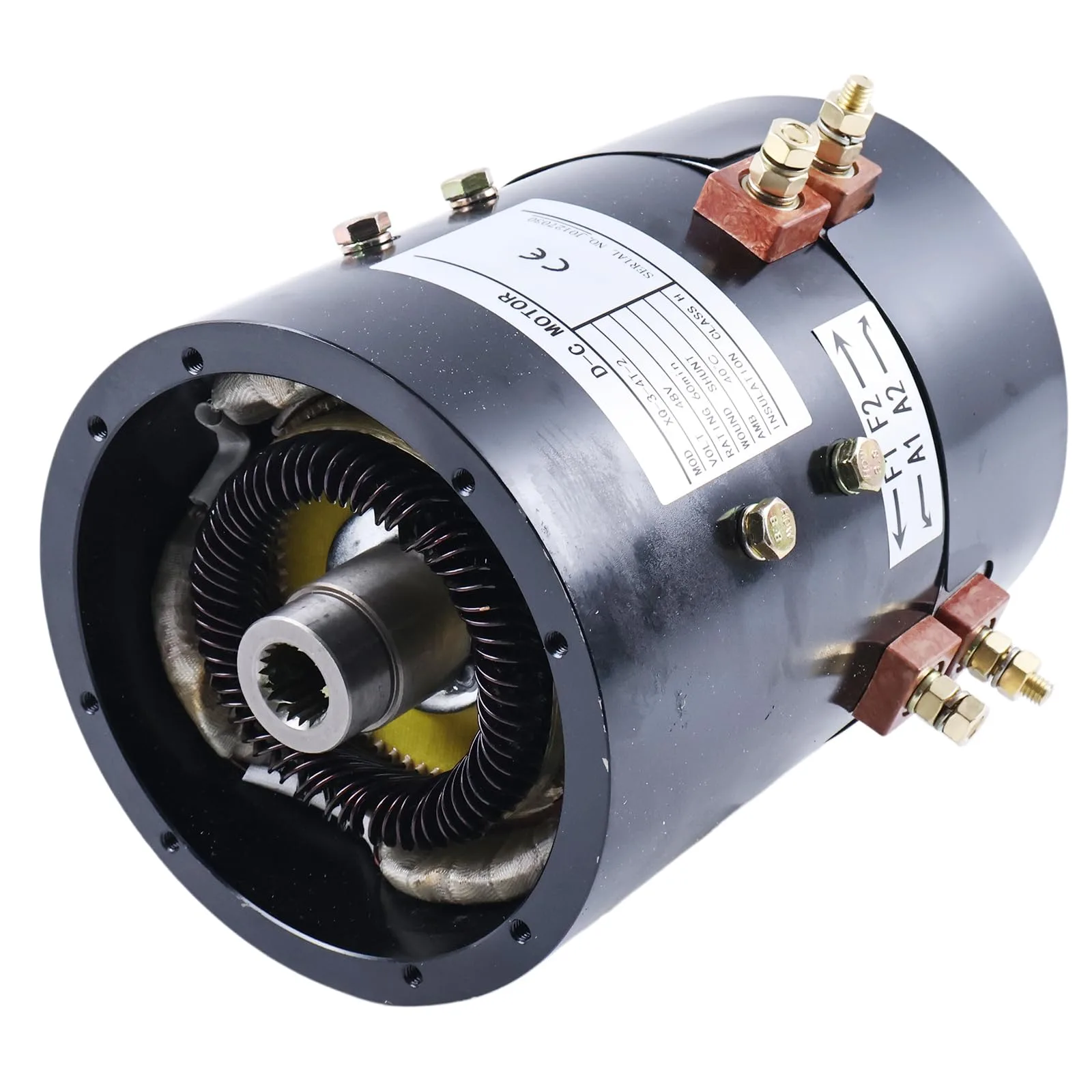

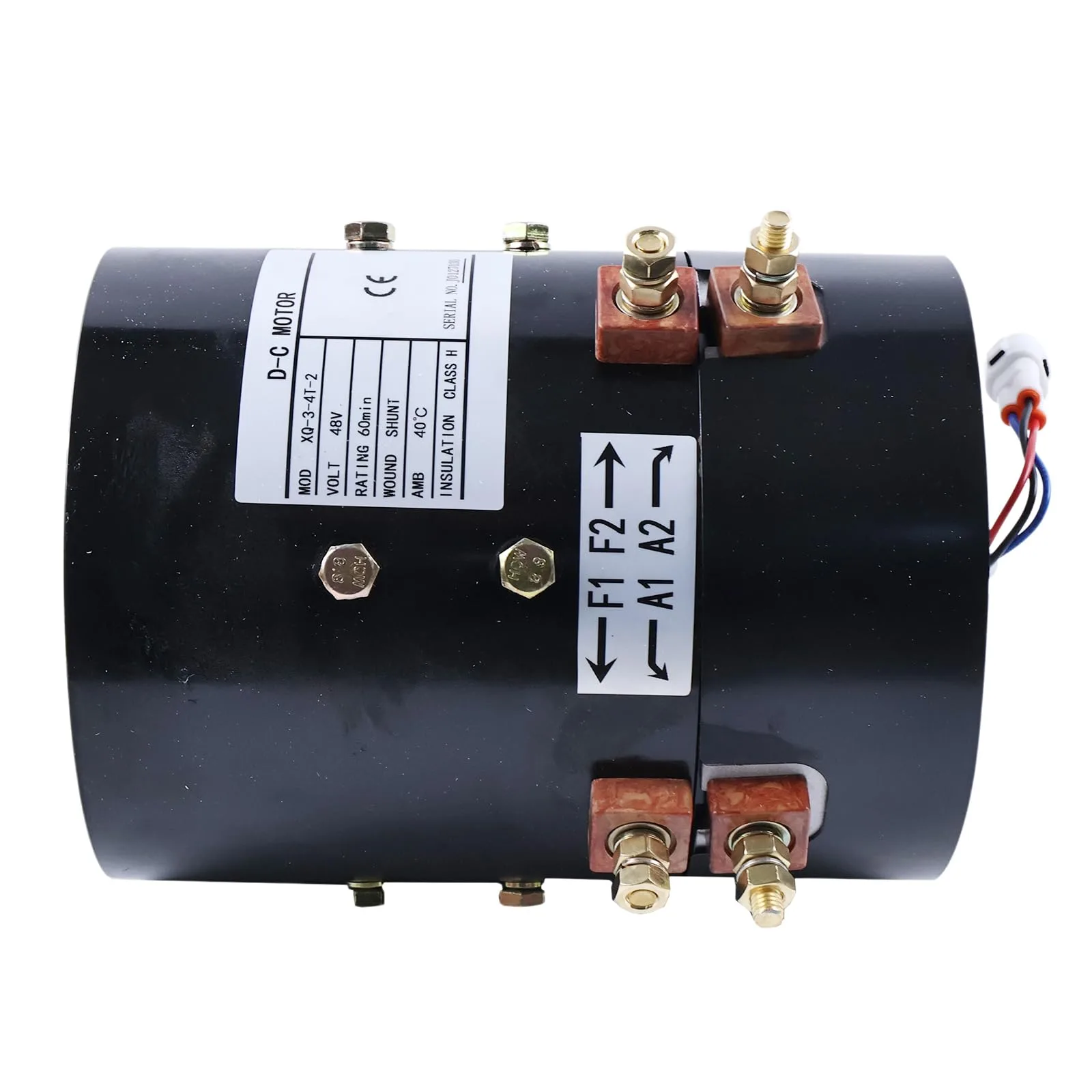

Chamixx 170-505-0001 36V/48V Golf Cart Motor
$1,501.99
In stock
✓ Free Shipping
7 HP Chamixx DC motor for compatible E-Z-GO and Yamaha golf carts, supporting 36V and 48V applications with a 19-tooth spline.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandChamixx
MPN / Part Number170-505-0001
Part TypeDC motor
Product Description
Chamixx 170-505-0001 DC motor for compatible E-Z-GO and Yamaha golf carts. This 7 HP motor is listed for E-Z-GO TXT, PDS, DCS, and KDS carts from 2000 onward, as well as Yamaha G14, G16, G19, G22, and G29 models and Hitachi golf carts.
The motor supports 36V and 48V applications and has a 19-tooth spline. The source lists speeds up to 14 mph at 36V and 17 mph at 48V, with 10% more torque, and describes it as a direct replacement.
The motor supports 36V and 48V applications and has a 19-tooth spline. The source lists speeds up to 14 mph at 36V and 17 mph at 48V, with 10% more torque, and describes it as a direct replacement.
Product Specifications
BrandChamixx
ManufacturerChamixx
Model170-505-0001
Horsepower7 hp
Voltage36V / 48V
Spline19 teeth
Motor typeDC motor
Speed3600 rpm
Included componentSteel motor
Golf Cart Compatibility
| Year | Make | Model | Power / Engine | Variant |
|---|---|---|---|---|
| — | Yamaha | G14 | 36V / 48V | |
| — | Yamaha | G16 | 36V / 48V | |
| — | Yamaha | G19 | 36V / 48V | |
| — | Yamaha | G22 | 36V / 48V | |
| — | Yamaha | G29 | 36V / 48V | |
| 2000 | E-Z-GO | TXT | 36V / 48V | PDS, DCS, KDS |
Always compare the part number, dimensions, specifications, and compatibility details with your original part before ordering.
