Cotether 1204036-24V-5K0 24V 275A Controller
$267.99
In stock
✓ Free Shipping
24V, 275A Cotether speed controller with a 5KΩ–0 throttle configuration for Curtis 1204-036 applications.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandCotether
MPN / Part Number1204036-24V-5K0
Part TypeSpeed controller
Product Description

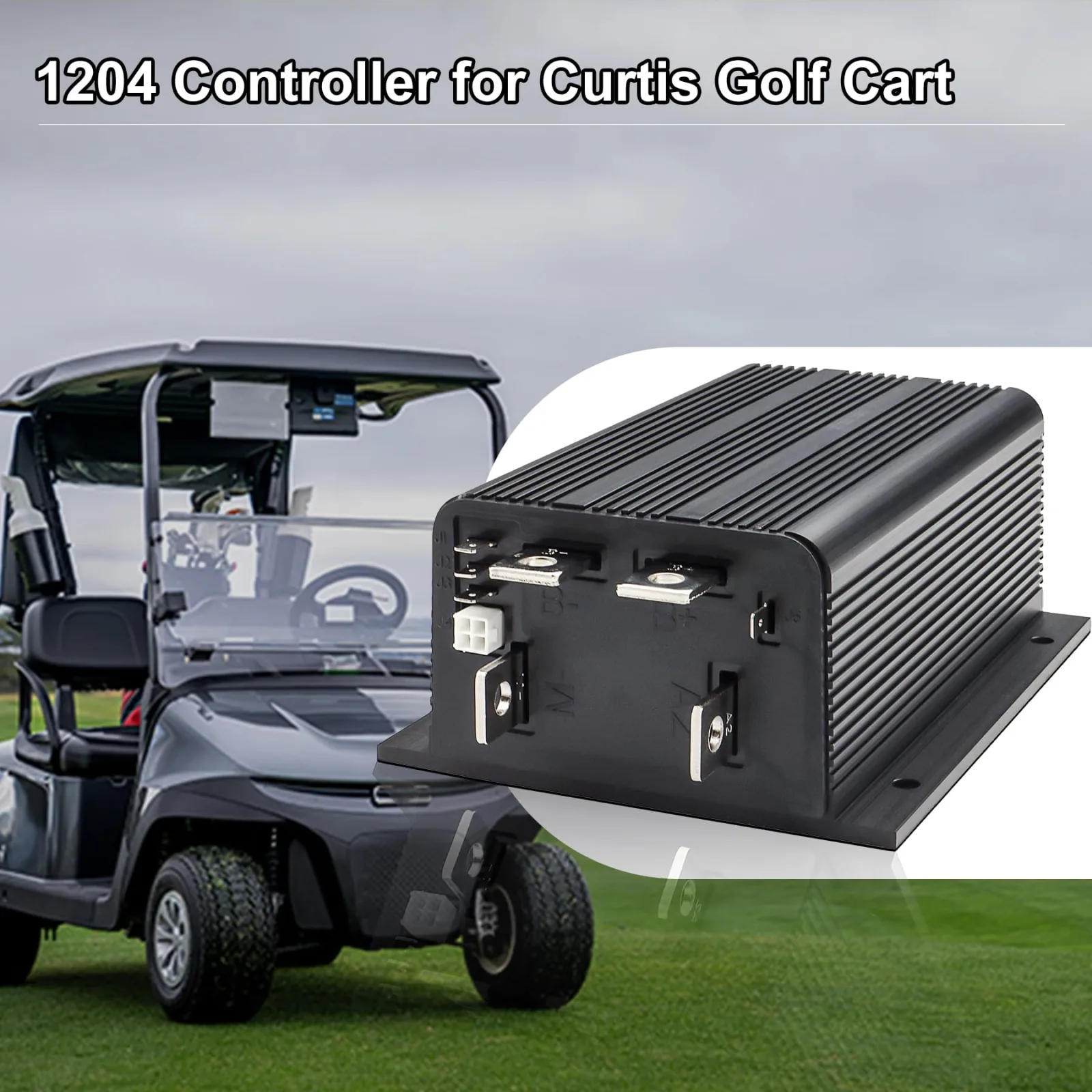

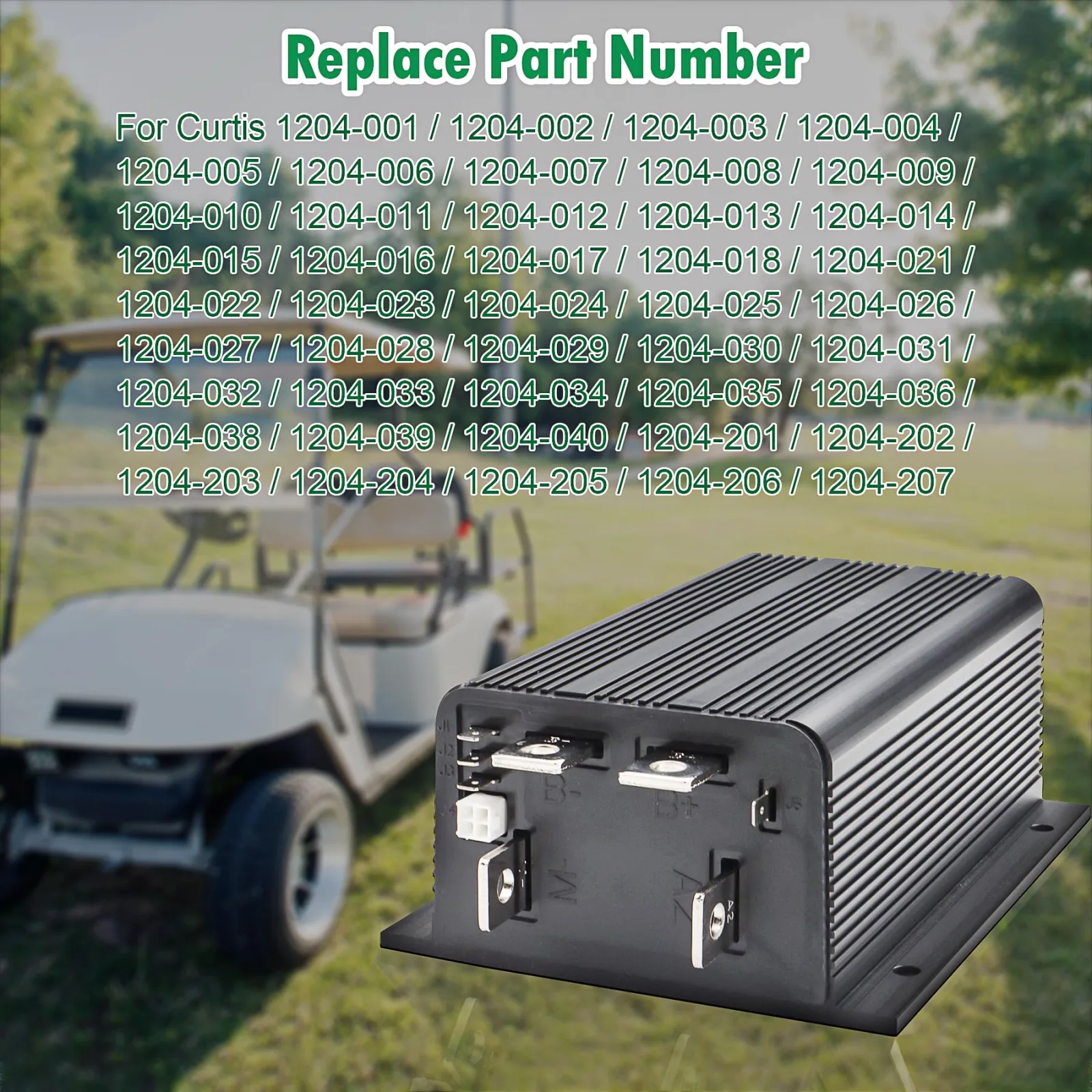

Cotether 1204036-24V-5K0 speed controller for Curtis 1204-036 applications. This controller is configured for 24V operation, a 275A current rating, and a 5KΩ–0 throttle type. It is described as a replacement for compatible 24V controller applications and supports adjustment with Curtis programmer #1313-3301.
Product Specifications
BrandCotether
ManufacturerCotether
Model1204036-24V-5K0
Item Weight2.3 kg
Voltage24V
Current rating275A
Throttle type5KΩ–0
Limit current rating275A
2-minute current rating275A
5-minute current rating200A
1-hour current rating125A
Dimensions174 mm L × 146 mm W × 70 mm D
Item weight2.3 kg
Compatible programmerCurtis #1313-3301
Model1204036-24V-5K0
