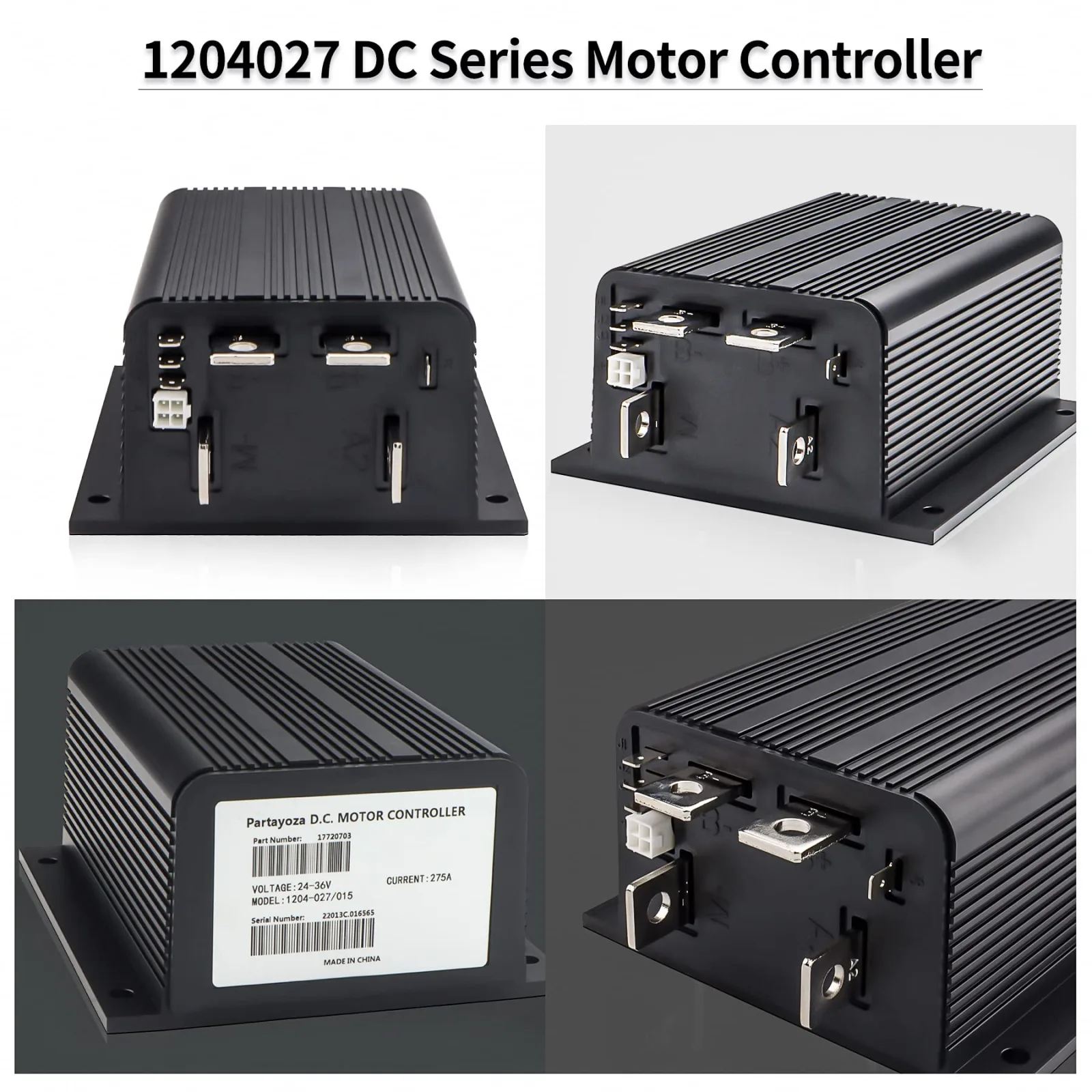

Cotether 1204M-4201 36V Golf Cart Motor Controller
$128.99
In stock
✓ Free Shipping
36V Cotether golf cart motor controller with 275A rating and default 0–5 kΩ throttle input for 1991–1996 E-Z-GO and Club Car carts.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandCotether
MPN / Part Number1204M-4201 1204-027 1204-001
OEM / OE Number1204M-4201
Part TypeMotor controller
Product Description
Cotether 1204M programmable golf cart motor controller for 36-volt applications with a default 0–5 kΩ throttle setting. It is described as a replacement for Curtis 1204-series controllers and is compatible with 1991–1996 E-Z-GO and Club Car golf carts.
The controller has a 275-amp two-minute current rating and four buses. Throttle input and other parameters can be adjusted with a compatible Curtis handheld programmer. The default configuration is 36V, 275A, and 0–5 kΩ.
The controller has a 275-amp two-minute current rating and four buses. Throttle input and other parameters can be adjusted with a compatible Curtis handheld programmer. The default configuration is 36V, 275A, and 0–5 kΩ.

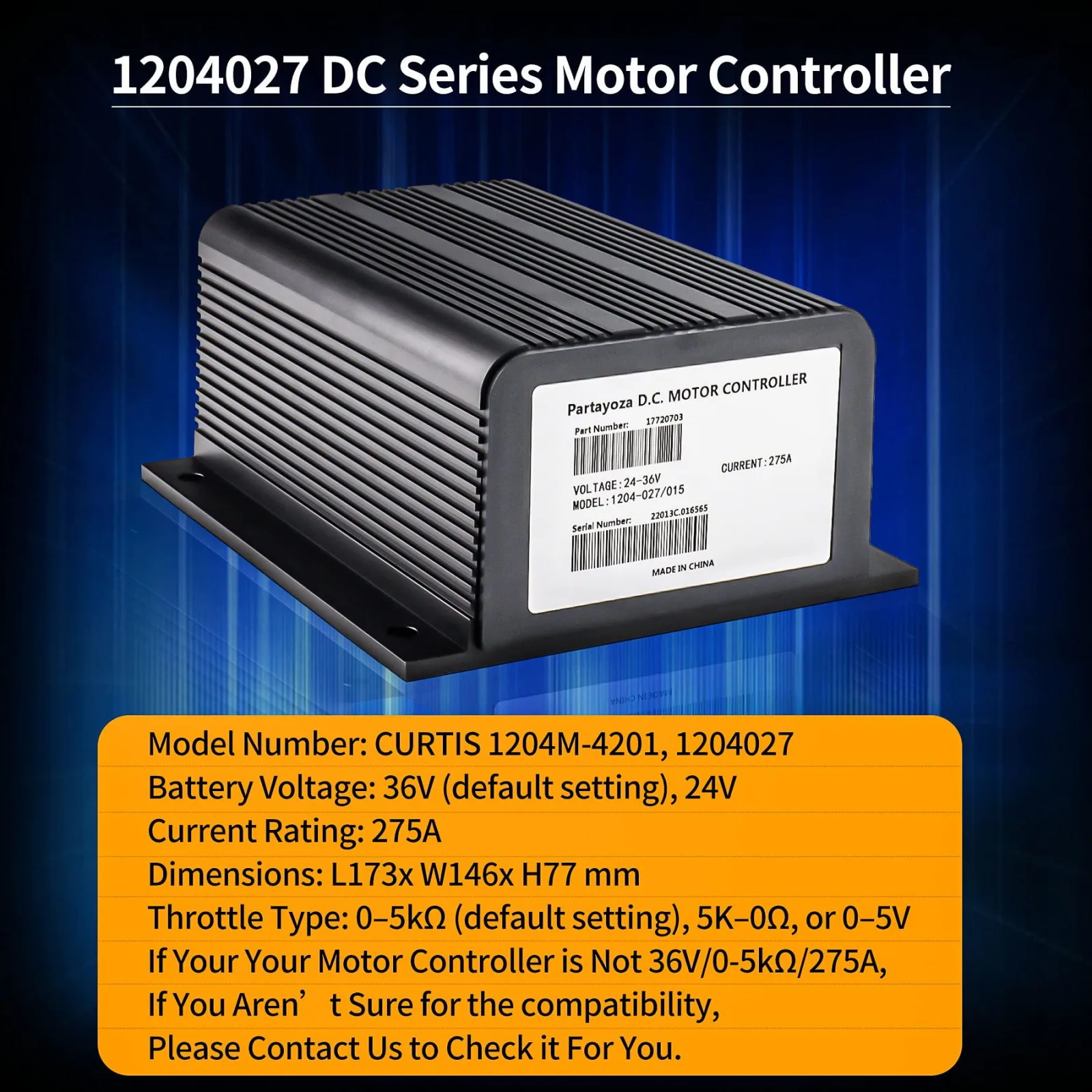

Product Specifications
BrandCotether
ManufacturerCotether
Model1204M-4201 1204-027 1204-001
Item Weight2.33 kg
Nominal voltage36V default; 24V adjustable with a Curtis 1313 programmer
Default throttle input0–5 kΩ, 2-wire potentiometer
Two-minute current rating275A
Five-minute current rating200A
One-hour current rating125A
Throttle types10 adjustable throttle types
Bus configurationFour buses
Item weight2.33 kg

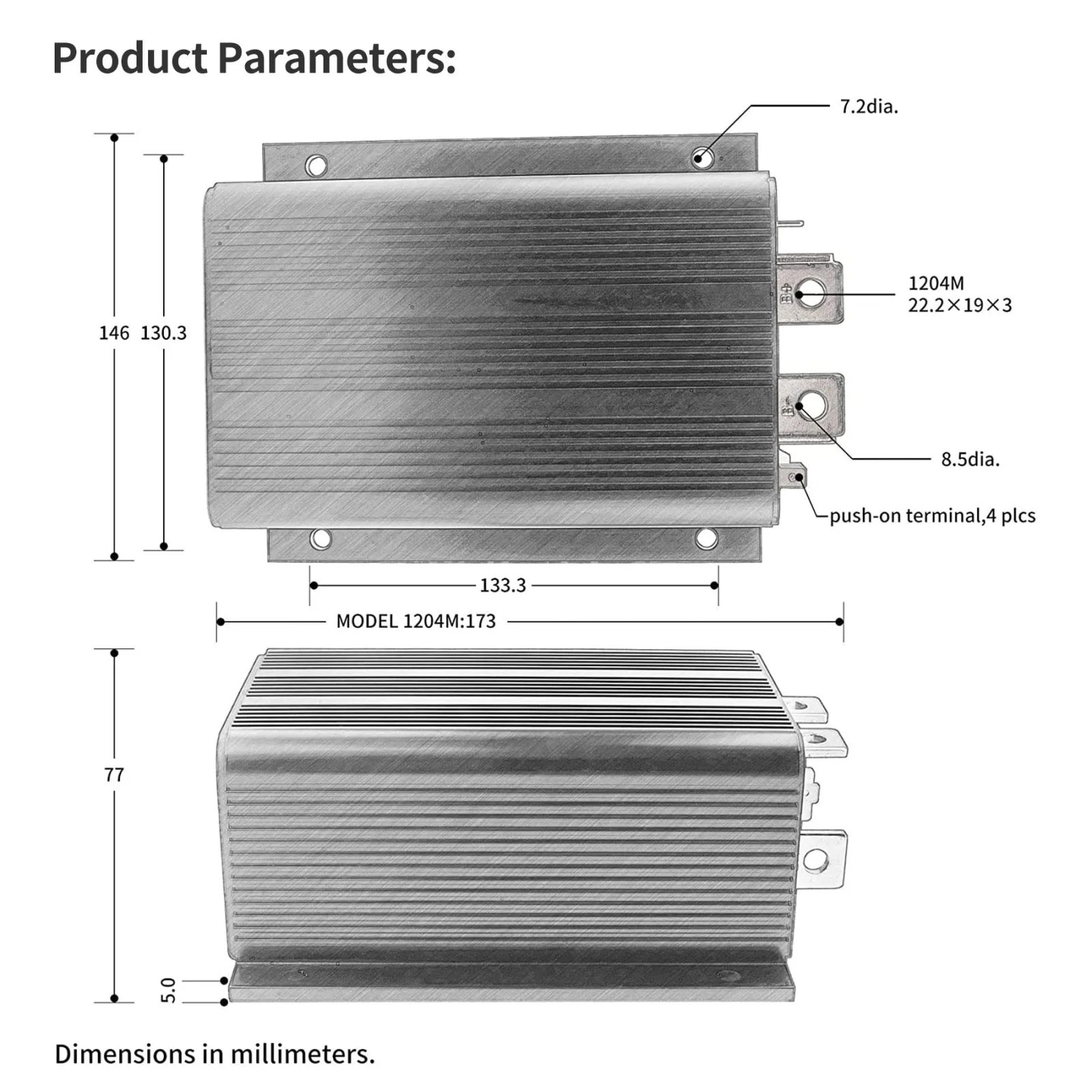

Dimensions8.05 in L x 4.05 in W x 3.12 in H
