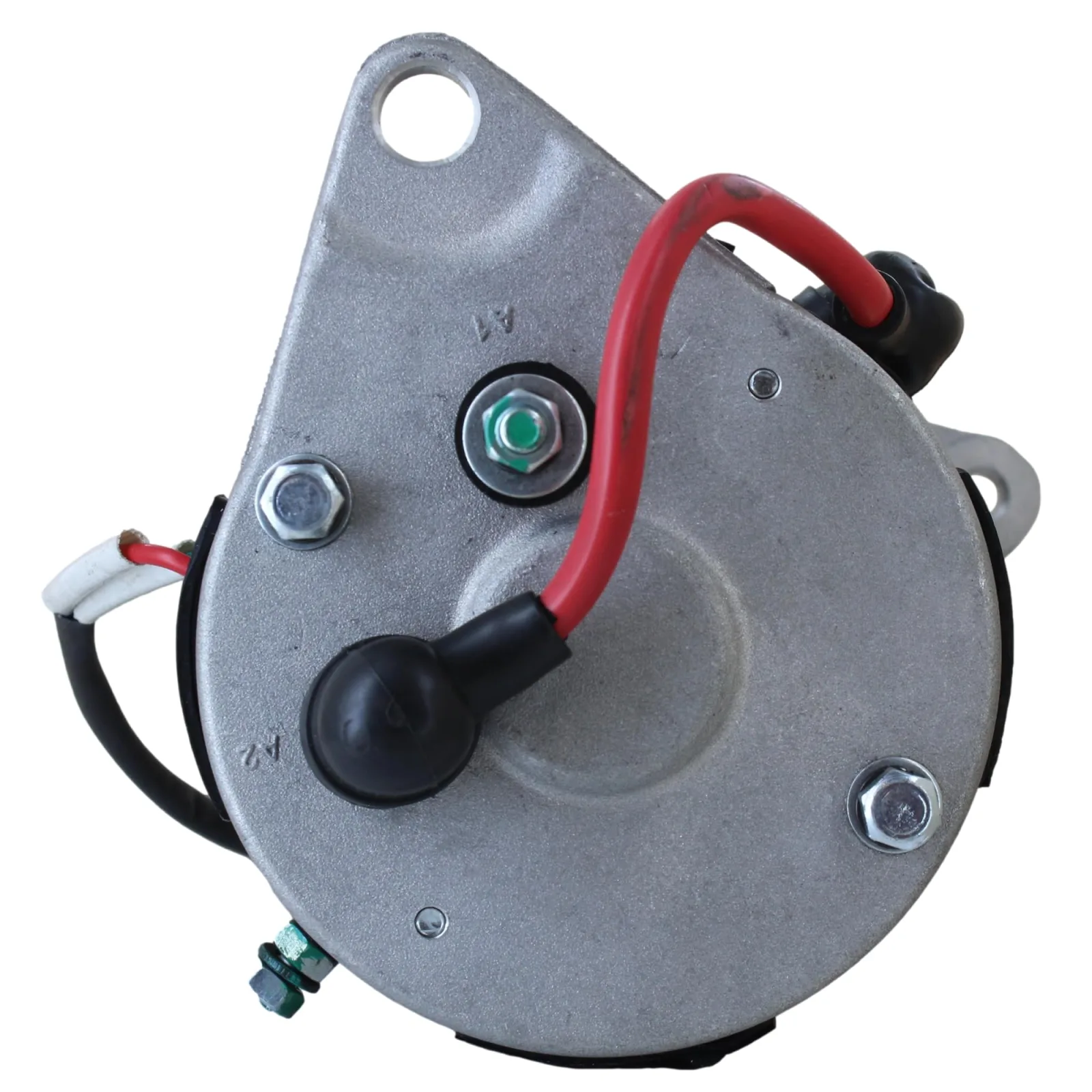

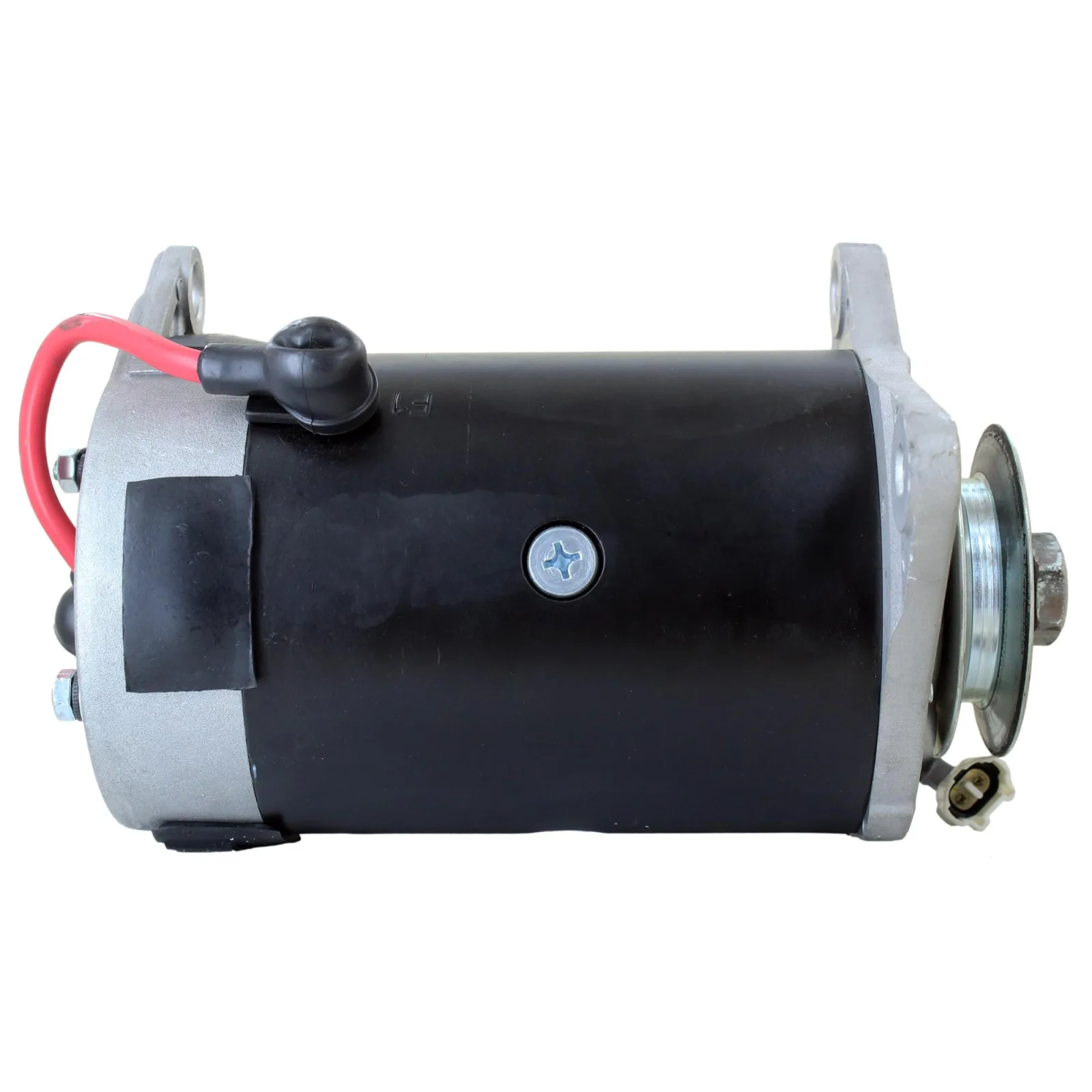

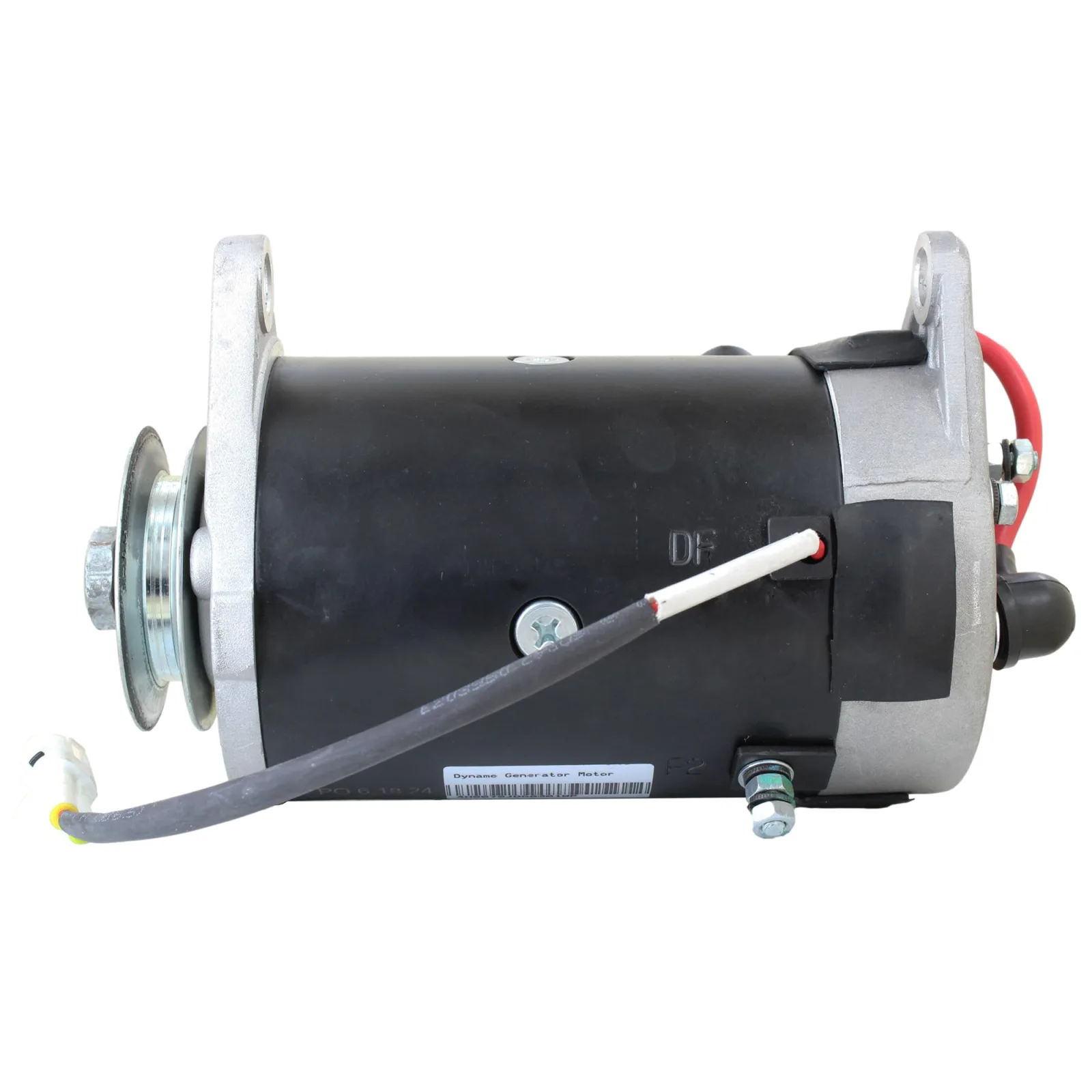

CRANK N CHARGE Starter Generator for Yamaha G16-G22
$177.99
In stock
✓ Free Shipping
12V, 15-amp reversible starter generator for Yamaha G16-G22 golf carts and John Deere 4-cycle gas Turf Gator vehicles.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandCRANK N CHARGE
MPN / Part Number15422N_DSA-ASIN-B017XY3O4O
OEM / OE NumberGSB107-06
Part TypeStarter generator
Product Description
This 12V starter generator is a replacement unit for Yamaha G16 through G22 golf carts from 1996 onward and John Deere 4-cycle gas Turf Gator vehicles. It provides 15 amps, reversible rotation, and a 5-terminal hookup with a threaded shaft and keyway.
The aftermarket starter generator replaces specified Hitachi, Yamaha, John Deere, and Lester numbers, including JN6-H1100-02-00 and Lester 15422. A 2-blade plug is included.
The aftermarket starter generator replaces specified Hitachi, Yamaha, John Deere, and Lester numbers, including JN6-H1100-02-00 and Lester 15422. A 2-blade plug is included.
Product Specifications
BrandCRANK N CHARGE
ManufacturerCrankNCharge
ModelJN6-H1100-02-00
Item Weight18.4 pounds
Voltage12 volts
Amperage15 amps
RotationReversible
Terminal configuration5-terminal hookup
Field housing outside diameter113 mm (4.449 in)
Overall length221.4 mm (8.717 in)
Shaft outside diameter17 mm (0.669 in)
Included componentOne 2-blade plug
Item weight18.4 pounds
Warranty1 year
Golf Cart Compatibility
| Year | Make | Model | Power / Engine | Variant |
|---|---|---|---|---|
| — | John Deere | Turf Gator | Gas | 4 Cycle |
| 1996 | Yamaha | G16-G22 |
Always compare the part number, dimensions, specifications, and compatibility details with your original part before ordering.
