D&D YAM-Series-Speed Golf Cart Motor Controller Combo
$2,379.99
In stock
✓ Free Shipping
High-speed D&D motor and controller combo for Yamaha and compatible E-Z-GO electric series golf carts with a 19-tooth Dana H12 spline.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandD&D Motor Systems
Part TypeElectric motor and controller combo
Product Description

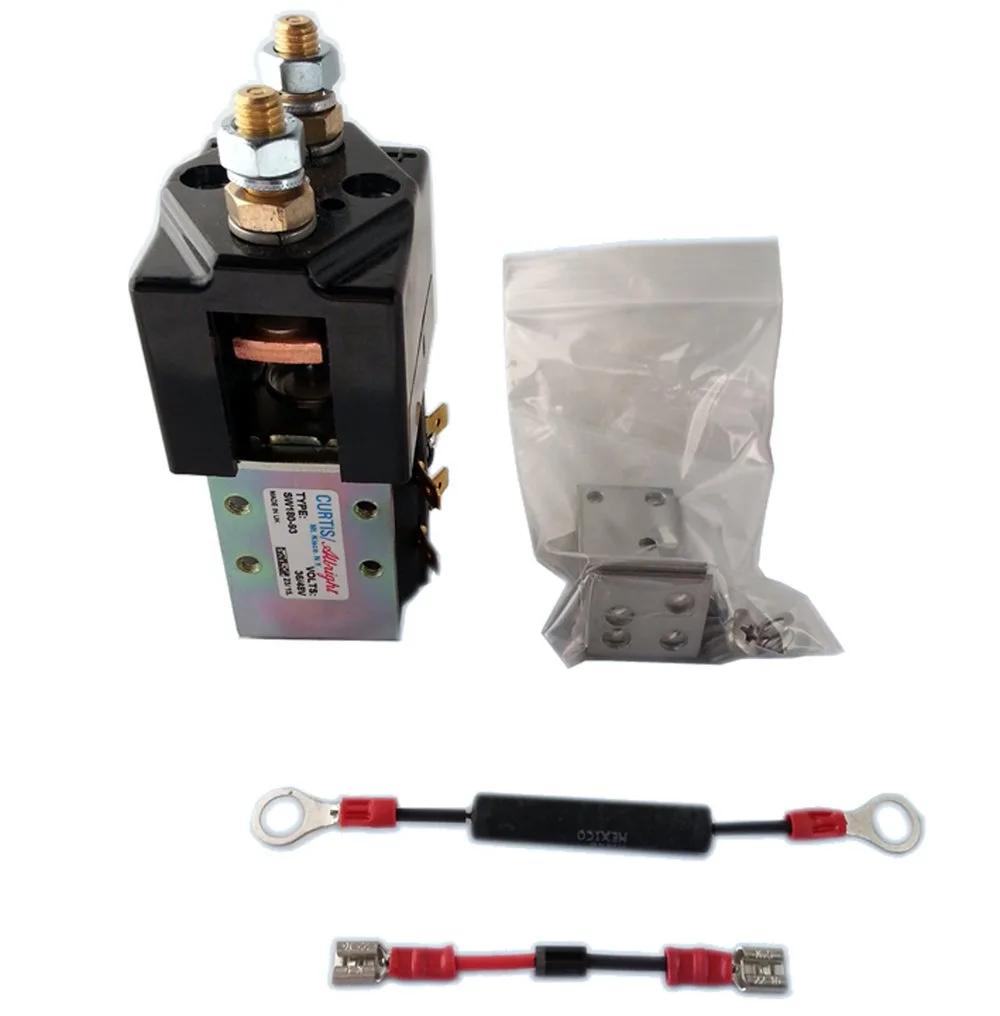

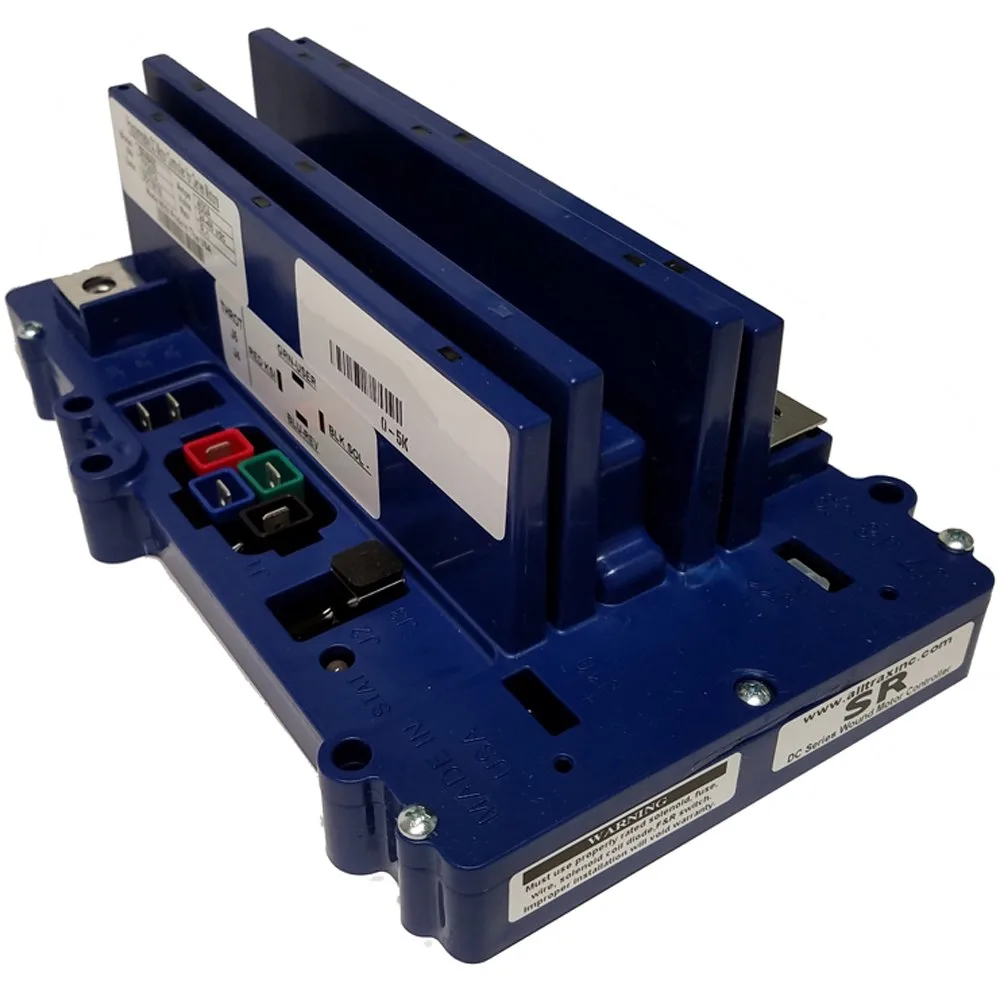

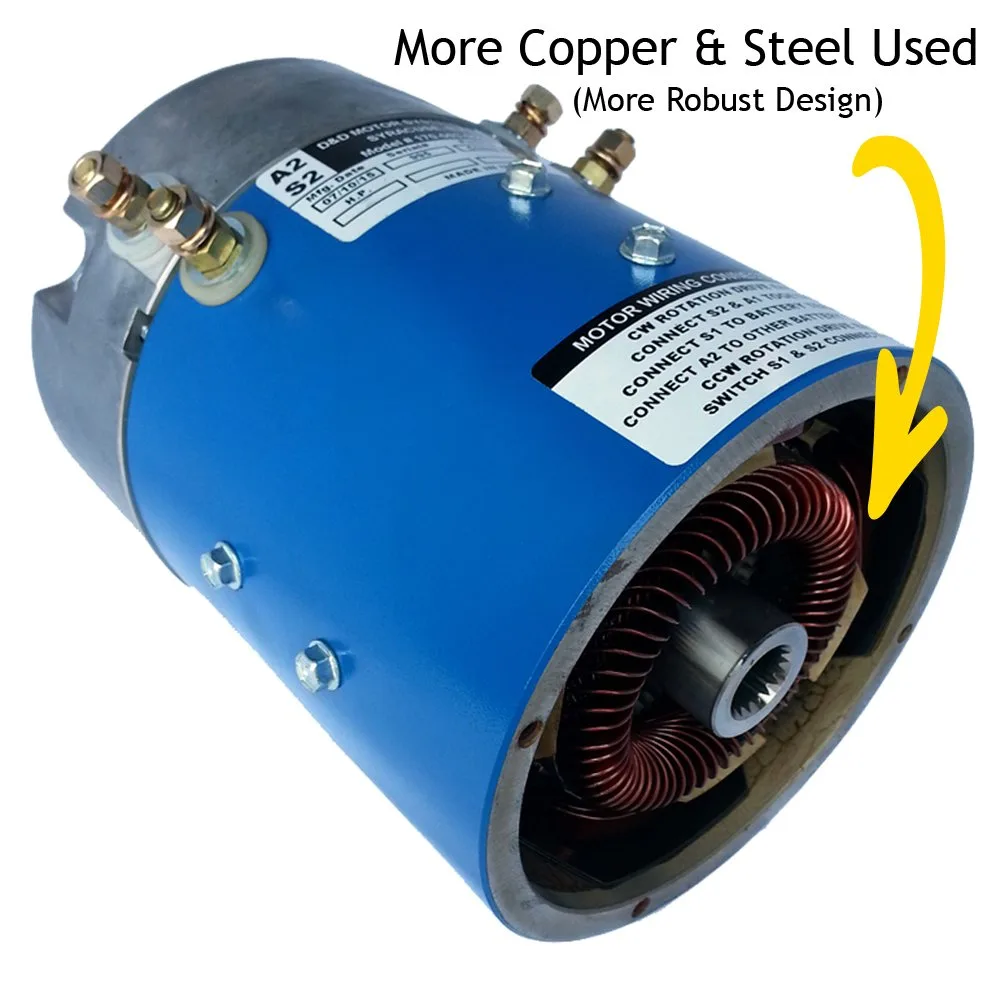

The D&D Motor Systems YAM-Series-Speed high-speed motor and controller combo is designed for Yamaha and compatible E-Z-GO 36V or 48V series golf carts with a standard Dana H12 19-tooth spline differential. It includes a 4400 RPM electric motor, 400-amp Alltrax controller, solenoid, and wiring components.
The setup is specified for approximately 19 MPH, 8.6 horsepower, and a 5% torque increase compared with standard factory performance. The application requires upgraded 4 AWG wiring, a heavy-duty solenoid, and a heavy-duty forward/reverse switch. D&D Motor Systems identifies this motor as made in the USA.
The setup is specified for approximately 19 MPH, 8.6 horsepower, and a 5% torque increase compared with standard factory performance. The application requires upgraded 4 AWG wiring, a heavy-duty solenoid, and a heavy-duty forward/reverse switch. D&D Motor Systems identifies this motor as made in the USA.
Product Specifications
BrandD&D Motor Systems
ManufacturerD D Motor Systems
Horsepower8.6 hp
Motor speed4400 rpm
Voltage48 volts
Supported voltage range36V or 48V
MaterialCopper
Vehicle configurationSeries golf carts
Differential splineStandard Dana H12, 19-tooth spline
Controller400-amp Alltrax controller
Throttle setting0-1K
Performance specification19 MPH vehicle speed; 5% torque enhancement
