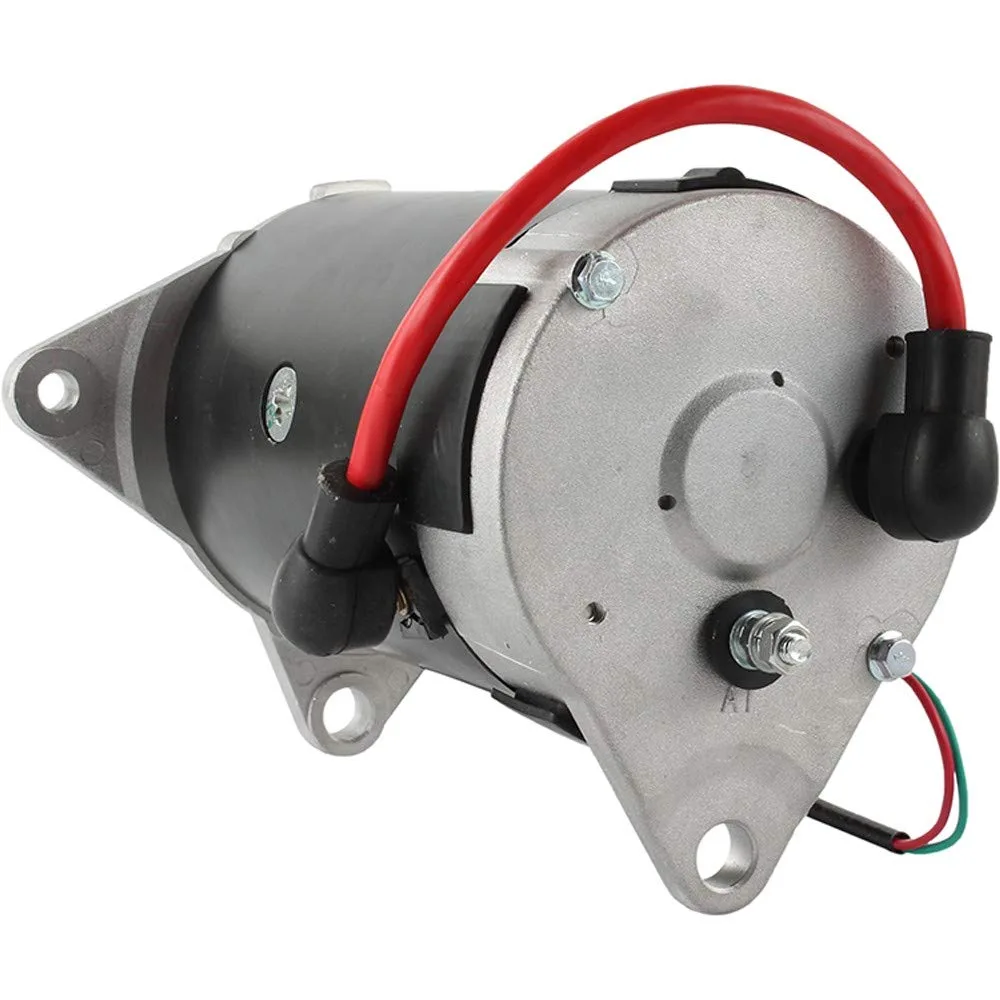

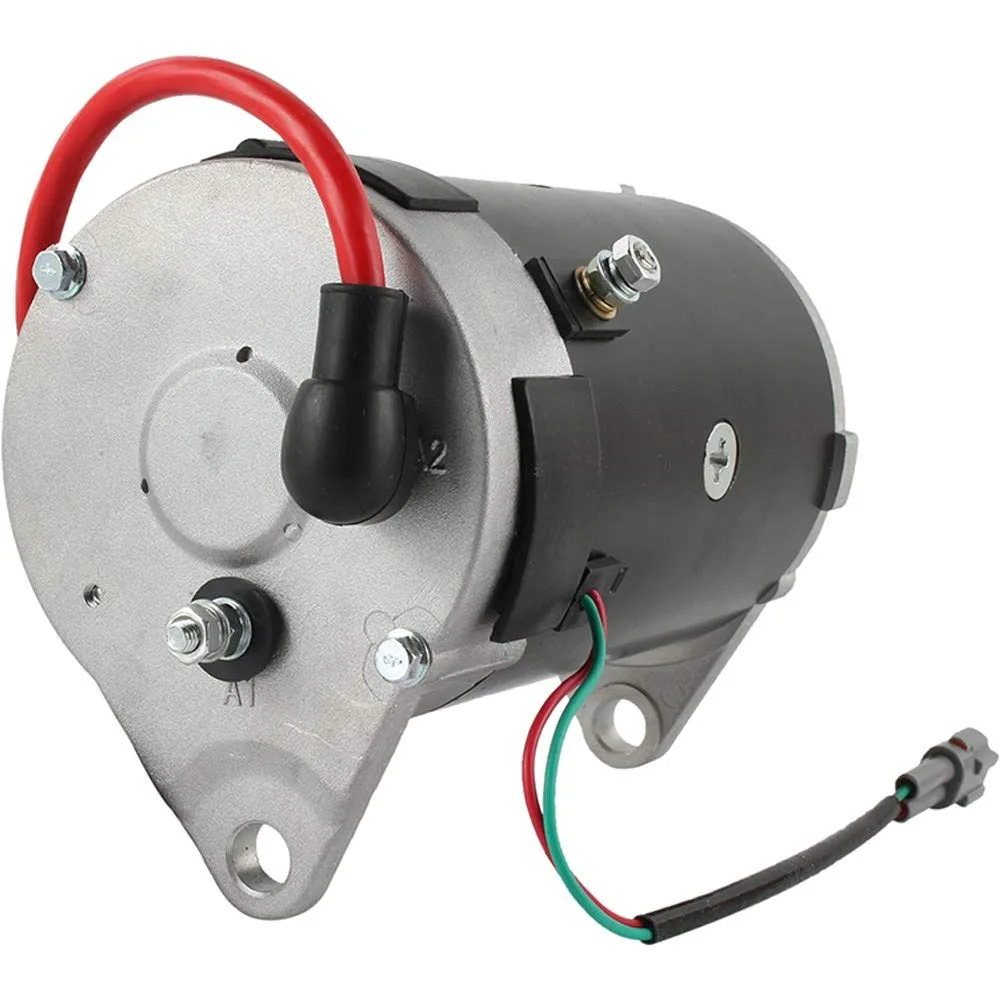

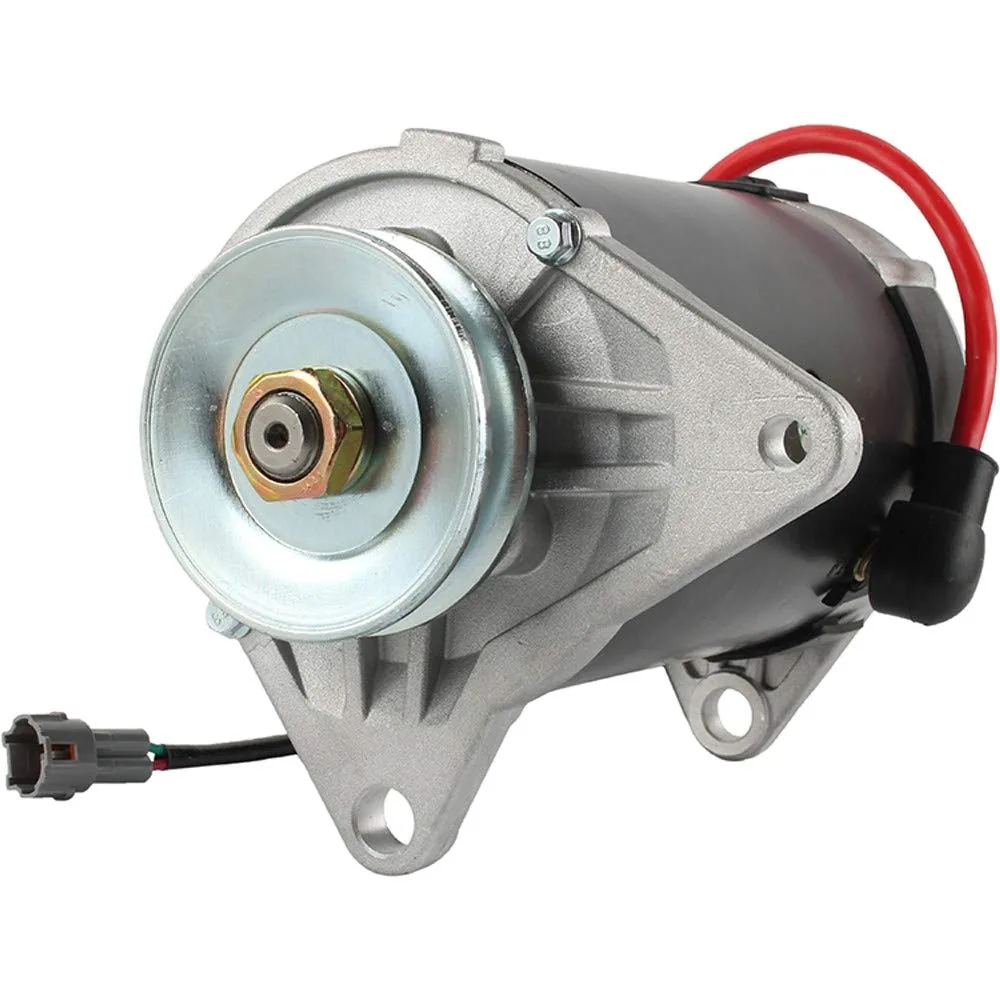

DB Electrical 420-44001 12V Starter-Generator
$233.99
In stock
✓ Free Shipping
12V DB Electrical starter-generator, part number 420-44001, for specified John Deere Gator Turf and Yamaha applications.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandDB Electrical
MPN / Part Number420-44001
OEM / OE NumberGHI0002
Part TypeStarter-generator
Product Description
DB Electrical starter-generator compatible with specified John Deere Gator Turf and Yamaha golf cart and utility vehicle applications. The unit is identified by part number 420-44001 and replaces the listed Arrowhead, Cargo, Hitachi, J & N, John Deere, Lester, and Yamaha numbers.
It operates at 12 volts and 15 amps and features a 4.449-inch outside diameter, 0.669-inch shaft diameter, threaded shaft with keyway, M6-1.0 terminal, and 8.717-inch overall length.
It operates at 12 volts and 15 amps and features a 4.449-inch outside diameter, 0.669-inch shaft diameter, threaded shaft with keyway, M6-1.0 terminal, and 8.717-inch overall length.
Product Specifications
BrandDB Electrical
ManufacturerDBElectrical
Model420-44001
Item Weight19.1 pounds
Unit typeStarter-generator
Voltage12 volts
Amperage15 A
Wattage1.4 KW
Phase typeSingle Phase
Outside diameter4.449 in / 113 mm
Shaft outside diameter0.669 in / 17 mm
Length8.717 in / 221.4 mm
Terminal sizeM6-1.0
Shaft designThreaded with keyway
MaterialMetal
Item weight19.1 pounds
Golf Cart Compatibility
| Year | Make | Model | Power / Engine | Variant |
|---|---|---|---|---|
| — | John Deere | Gator Turf | ||
| 1996 | Yamaha | G16A | Ultima | |
| 1997 | Yamaha | G11A | Yamahauler | |
| 1997 | Yamaha | G16A | Ultima | |
| 1998 | Yamaha | G11A | Yamahauler | |
| 1998 | Yamaha | G16A | Ultima | |
| 1999 | Yamaha | G11A | Yamahauler | |
| 1999 | Yamaha | G16A | Ultima | |
| 2000 | Yamaha | G11A | Yamahauler | |
| 2000 | Yamaha | G16A | Ultima | |
| 2000 | Yamaha | G20A | Concierge | |
| 2001 | Yamaha | G11A | Yamahauler | |
| 2001 | Yamaha | G16A | Ultima | |
| 2001 | Yamaha | G20A | Concierge | |
| 2001 | Yamaha | G21A | Yamahauler | |
| 2002 | Yamaha | G16A | Ultima | |
| 2002 | Yamaha | G20A | Concierge | |
| 2002 | Yamaha | G21A | Yamahauler | |
| 2003 | Yamaha | G21A | Yamahauler | |
| 2003 | Yamaha | G22A | G-Max | |
| 2004 | Yamaha | G21A | Yamahauler | |
| 2004 | Yamaha | G22A | G-Max | |
| 2004 | Yamaha | G23A | U-Max | |
| 2004 | Yamaha | G27A | U-Max | |
| 2004 | Yamaha | G28A | U-Max | |
| 2004 | Yamaha | YXP1000A | Pro Hauler 1000 | |
| 2004 | Yamaha | YXP700A | Pro Hauler 700 | |
| 2005 | Yamaha | G22A | G-Max | |
| 2005 | Yamaha | G23A | U-Max | |
| 2005 | Yamaha | G27A | U-Max | |
| 2005 | Yamaha | G28A | U-Max | |
| 2005 | Yamaha | YXP1000A | Pro Hauler 1000 | |
| 2005 | Yamaha | YXP700A | Pro Hauler 700 | |
| 2006 | Yamaha | G22A | G-Max | |
| 2006 | Yamaha | G23A | U-Max | |
| 2006 | Yamaha | G27A | U-Max | |
| 2006 | Yamaha | G28A | U-Max | |
| 2006 | Yamaha | YXP700A | Pro Hauler 700 | |
| 2007 | Yamaha | G22A | G-Max | |
| 2007 | Yamaha | G23A | U-Max | |
| 2007 | Yamaha | G27A | U-Max | |
| 2007 | Yamaha | G28A | U-Max | |
| 2007 | Yamaha | YDRA | Drive Fleet | |
| 2008 | Yamaha | G23A | U-Max | |
| 2008 | Yamaha | G27A | U-Max | |
| 2008 | Yamaha | G28A | U-Max | |
| 2008 | Yamaha | YDRA | Drive Fleet | |
| 2009 | Yamaha | G23A | U-Max | |
| 2009 | Yamaha | G28A | U-Max | |
| 2009 | Yamaha | YDRA | Drive Fleet | |
| 2009 | Yamaha | YDRA SVL | Drive Concierge 6-Passenger | |
| 2009 | Yamaha | YDRA SVS | Drive Concierge 4-Passenger | |
| 2009 | Yamaha | YTF1A | Adventurer One Carbureted Utility | |
| 2010 | Yamaha | YDRA | Drive Carbureted PTV | |
| 2010 | Yamaha | YDRA | Drive Fleet | |
| 2010 | Yamaha | YDRA SVL | Drive Concierge 6-Passenger | |
| 2010 | Yamaha | YDRA SVS | Drive Concierge 4-Passenger | |
| 2010 | Yamaha | YTF1A | Adventurer One Carbureted Utility | |
| 2011 | Yamaha | YDRA | Drive Carbureted PTV | |
| 2011 | Yamaha | YDRA | Drive Fleet | |
| 2011 | Yamaha | YDRA SVL | Drive Concierge 6-Passenger | |
| 2011 | Yamaha | YDRA SVS | Drive Concierge 4-Passenger | |
| 2011 | Yamaha | YTF1A | Adventurer One Carbureted Utility | |
| 2012 | Yamaha | YDRA | Drive Carbureted PTV | |
| 2012 | Yamaha | YDRA | Drive EFI PTV | |
| 2012 | Yamaha | YDRA | Drive Fleet | |
| 2012 | Yamaha | YDRA SVL | Drive Concierge 6-Passenger | |
| 2012 | Yamaha | YDRA SVS | Drive Concierge 4-Passenger | |
| 2012 | Yamaha | YTF1A | Adventurer One Carbureted Utility | |
| 2013 | Yamaha | YDRA | Drive EFI PTV | |
| 2013 | Yamaha | YDRA | Drive Fleet | |
| 2013 | Yamaha | YDRA SVL EFI | Drive Concierge 6-Passenger | |
| 2013 | Yamaha | YDRA SVS EFI | Drive Concierge 4-Passenger | |
| 2013 | Yamaha | YTF1A | Adventurer One Carbureted Utility | |
| 2014 | Yamaha | YDRA | Drive EFI PTV | |
| 2014 | Yamaha | YDRA | Drive Fleet | |
| 2014 | Yamaha | YDRA SVL EFI | Drive Concierge 6-Passenger | |
| 2014 | Yamaha | YDRA SVS EFI | Drive Concierge 4-Passenger | |
| 2014 | Yamaha | YTF1A | Adventurer One EFI Utility | |
| 2015 | Yamaha | YDRA SVL EFI | Drive Concierge 6-Passenger | |
| 2015 | Yamaha | YDRA SVS EFI | Drive Concierge 4-Passenger | |
| 2015 | Yamaha | YTF1A | Adventurer One EFI Utility | |
| 2016 | Yamaha | YDRA SVL EFI | Drive Concierge 6-Passenger | |
| 2016 | Yamaha | YDRA SVS EFI | Drive Concierge 4-Passenger | |
| 2016 | Yamaha | YTF1A | Adventurer One EFI Utility |
Always compare the part number, dimensions, specifications, and compatibility details with your original part before ordering.
