Dokili 48V Solenoid for Yamaha G22 and G29
$49.99
In stock
✓ Free Shipping

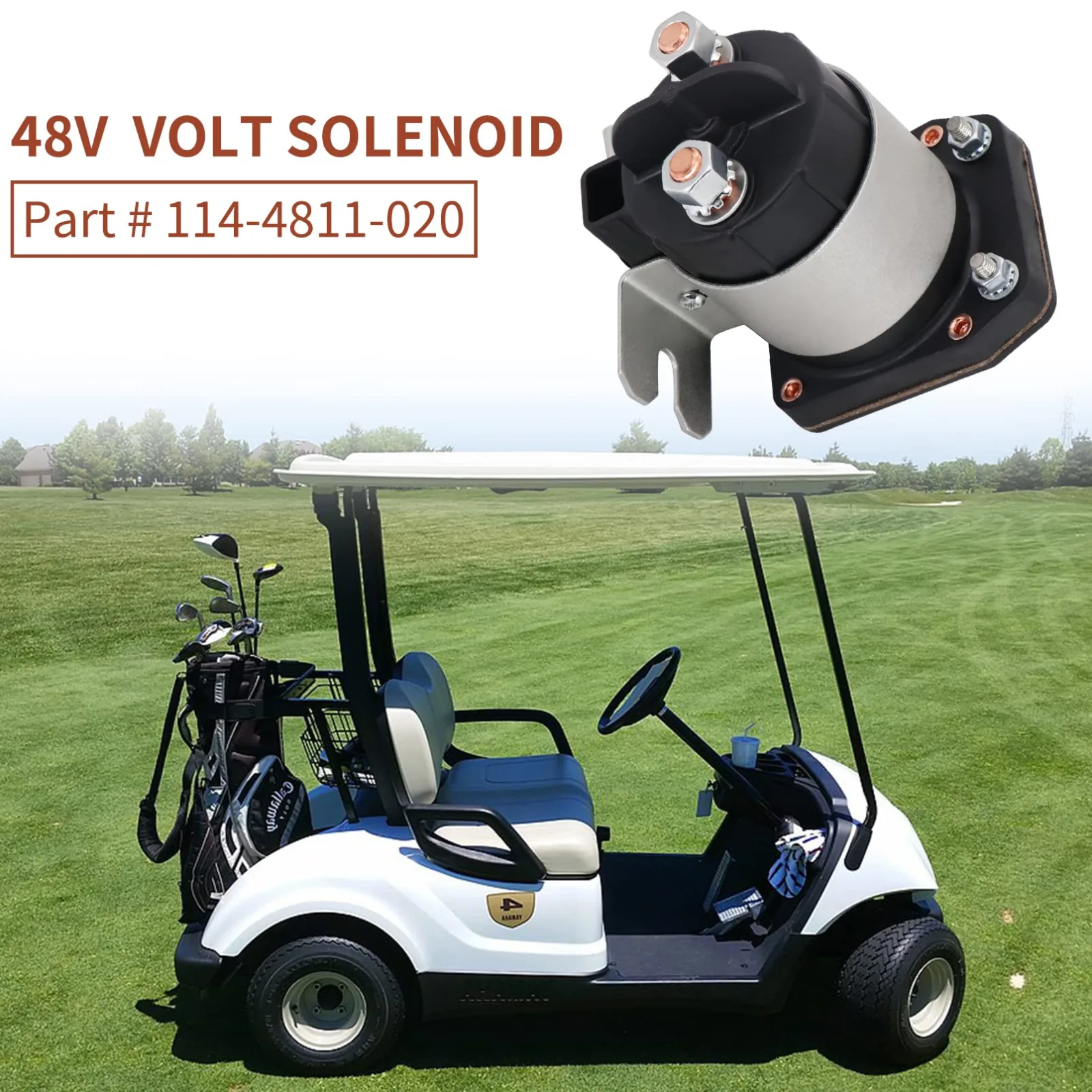

48V Dokili solenoid contactor for Yamaha G22 and G29 (The Drive) electric golf carts, 2007–2016. Replaces Trombetta 114-4811-020 and listed cross-reference numbers.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandDokili
MPN / Part Number114-4811-020
OEM / OE Number114-4811-020
Part TypeSolenoid relay contactor
Product Description
Dokili 48V solenoid relay contactor for Yamaha G22 and G29 (The Drive) electric golf carts from 2007–2016. It is identified as a direct replacement for Trombetta 114-4811-020 and supports 200A continuous operation with up to 800A peak starting current.
The four-terminal contactor uses 5/16-24 main studs and 10-32 coil studs. The source also identifies replacement numbers 114-4811-020-02, 114-4811-020-07, JU6-H1950-00-00, and JR1-H1950-00.
The four-terminal contactor uses 5/16-24 main studs and 10-32 coil studs. The source also identifies replacement numbers 114-4811-020-02, 114-4811-020-07, JU6-H1950-00-00, and JR1-H1950-00.
Product Specifications
BrandDokili
ManufacturerDokili
Manufacturer Part Number114-4811-020
Model114-4811-020
Item Weight1.68 pounds

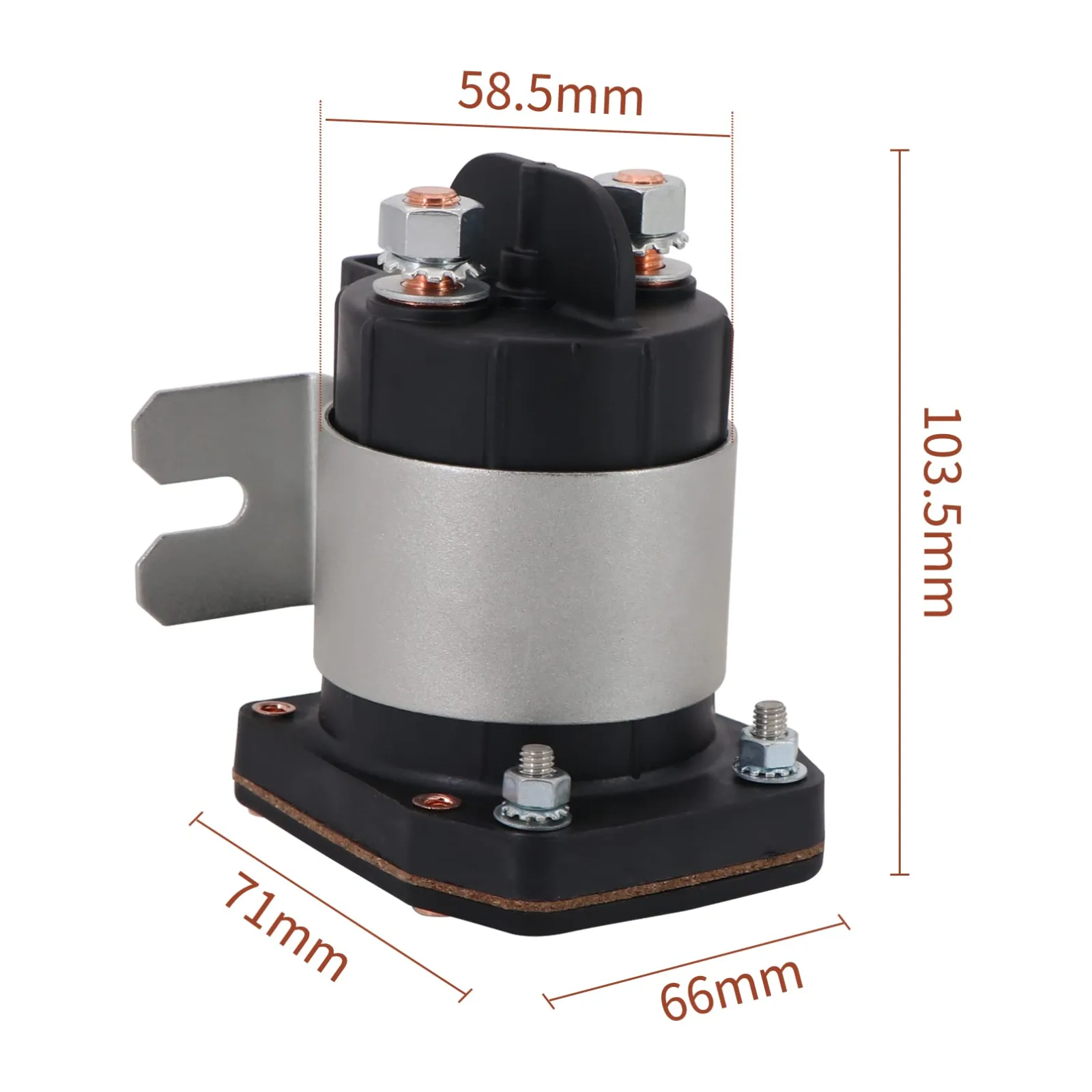

Product Dimensions3.07 x 3.46 x 4.13 inches
Item model number114-4811-020
ExteriorMachined
Voltage48V DC
Continuous load200A
Peak starting current800A
Configuration4-terminal
Main stud size5/16-24
Coil stud size10-32
Protection ratingIP66
Item weight1.68 pounds
Product dimensions3.07 x 3.46 x 4.13 inches
ExteriorMachined
Golf Cart Compatibility
| Year | Make | Model | Power / Engine | Variant |
|---|---|---|---|---|
| 2007 | Yamaha | G22 | 48V Electric | The Drive |
| 2007 | Yamaha | G29 | 48V Electric | The Drive |
| 2008 | Yamaha | G22 | 48V Electric | The Drive |
| 2008 | Yamaha | G29 | 48V Electric | The Drive |
| 2009 | Yamaha | G22 | 48V Electric | The Drive |
| 2009 | Yamaha | G29 | 48V Electric | The Drive |
| 2010 | Yamaha | G22 | 48V Electric | The Drive |
| 2010 | Yamaha | G29 | 48V Electric | The Drive |
| 2011 | Yamaha | G22 | 48V Electric | The Drive |
| 2011 | Yamaha | G29 | 48V Electric | The Drive |
| 2012 | Yamaha | G22 | 48V Electric | The Drive |
| 2012 | Yamaha | G29 | 48V Electric | The Drive |
| 2013 | Yamaha | G22 | 48V Electric | The Drive |
| 2013 | Yamaha | G29 | 48V Electric | The Drive |
| 2014 | Yamaha | G22 | 48V Electric | The Drive |
| 2014 | Yamaha | G29 | 48V Electric | The Drive |
| 2015 | Yamaha | G22 | 48V Electric | The Drive |
| 2015 | Yamaha | G29 | 48V Electric | The Drive |
| 2016 | Yamaha | G22 | 48V Electric | The Drive |
| 2016 | Yamaha | G29 | 48V Electric | The Drive |
Always compare the part number, dimensions, specifications, and compatibility details with your original part before ordering.
