FcotMiue 48V 18A Charger for Yamaha G14-G22
$152.99
In stock
✓ Free Shipping
48V 18A lead-acid golf cart charger with a 2-pin connector for Yamaha G14, G16, G19, and G22 Drive carts.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandFcotMiue
Part TypeGolf cart battery charger
Product Description
The FcotMiue 48-volt, 18-amp golf cart charger is designed for Yamaha G14, G16, G19, and G22 Drive golf carts using 48V conventional lead-acid battery systems with a 2-pin connector. It includes trickle and maintenance charging modes and three-color LED status indicators.

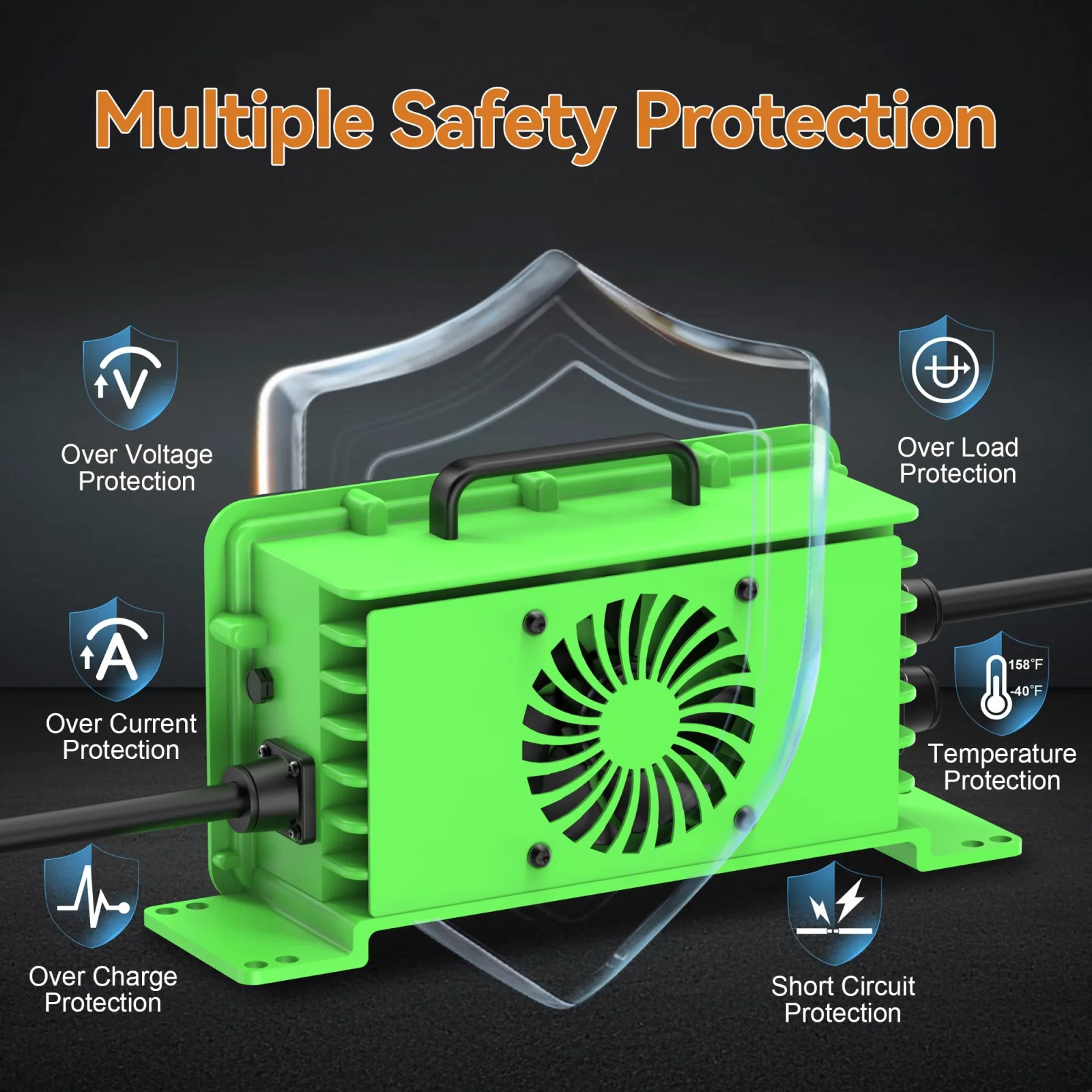

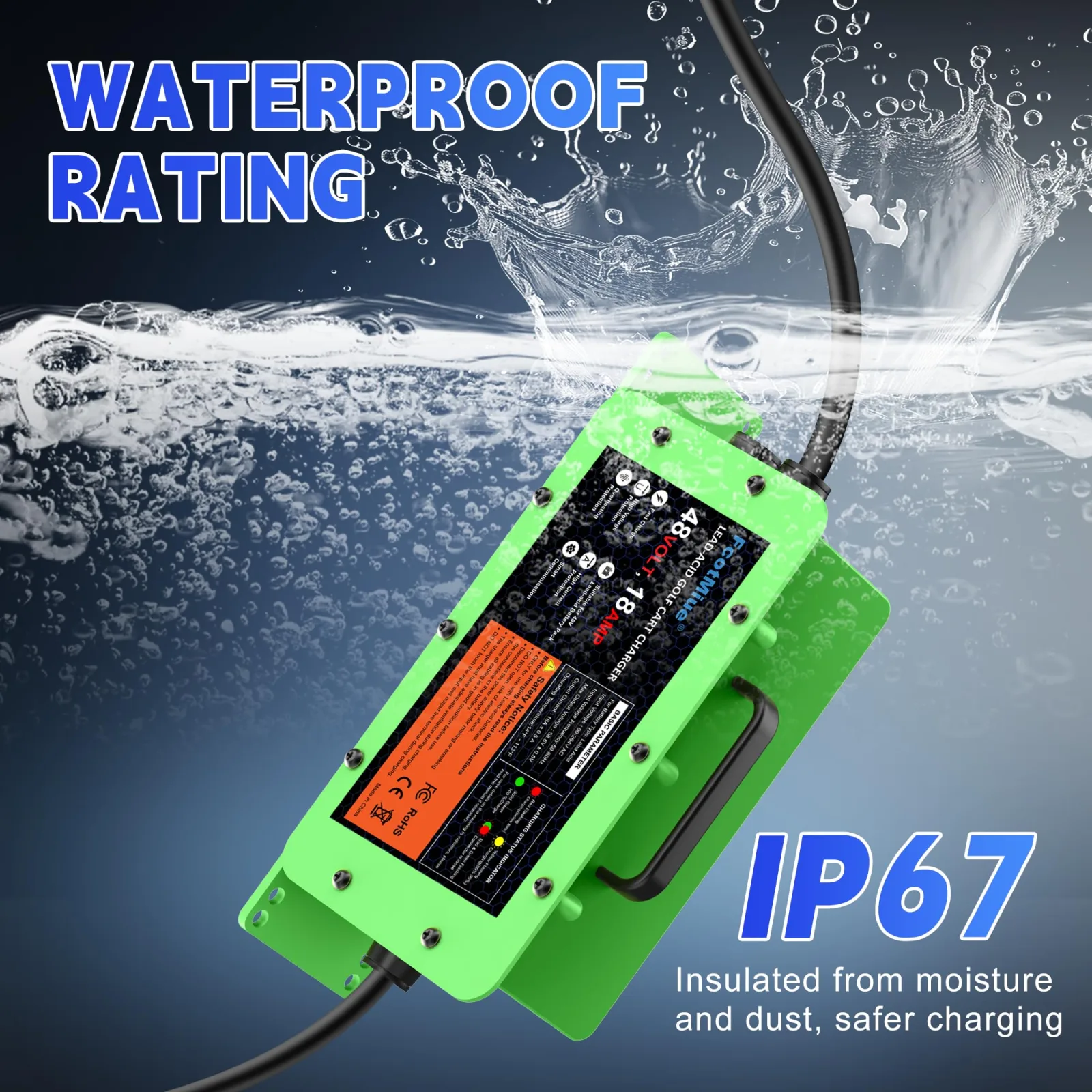

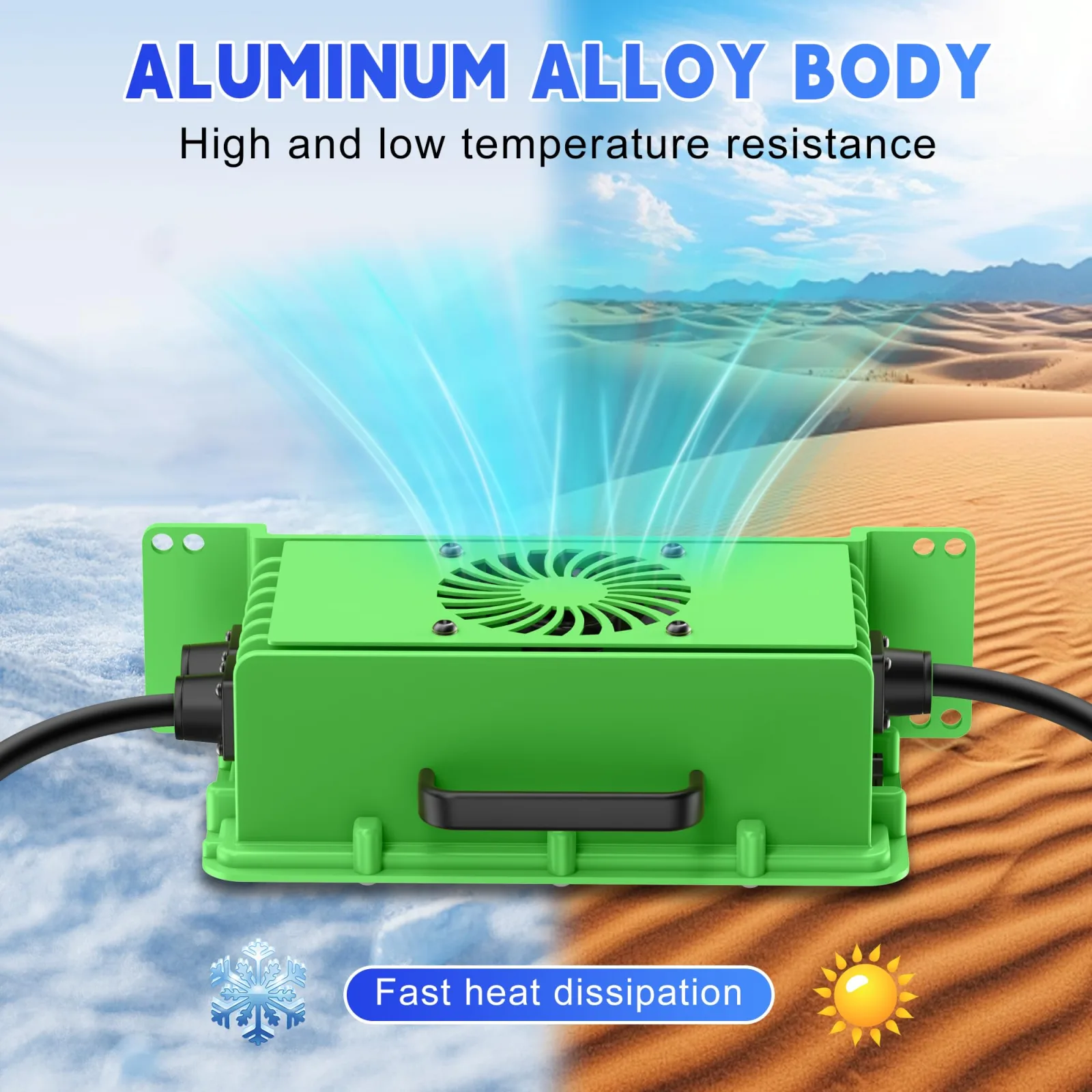

The charger provides protection against short circuits, over-current, over-voltage, reverse polarity, and overheating. It has an IP67 waterproof rating, active fan cooling, and an aluminum die-cast housing. Verify that the 2-pin connector matches your cart's receptacle before ordering.
The charger provides protection against short circuits, over-current, over-voltage, reverse polarity, and overheating. It has an IP67 waterproof rating, active fan cooling, and an aluminum die-cast housing. Verify that the 2-pin connector matches your cart's receptacle before ordering.
Product Specifications
BrandFcotMiue
ManufacturerFcotMiue
Item Weight8.2 pounds
Model number48V 18A for Yamaha G19-G22
Charging voltage48 V nominal; 58.8 V maximum DC output
Current rating18 A
Connector2-pin connector
Battery type48V lead-acid
Charging modeCC, CV, trickle
Waterproof ratingIP67
Input voltage110 volts
Dimensions11 x 5.03 x 3.34 inches
CoolingActive cooling with fan
Golf Cart Compatibility
| Year | Make | Model | Power / Engine | Variant |
|---|---|---|---|---|
| 1996 | Yamaha | G14 | 48V | Drive |
| 1996 | Yamaha | G16 | 48V | Drive |
| 1996 | Yamaha | G19 | 48V | Drive |
| 1996 | Yamaha | G22 | 48V | Drive |
| 1997 | Yamaha | G14 | 48V | Drive |
| 1997 | Yamaha | G16 | 48V | Drive |
| 1997 | Yamaha | G19 | 48V | Drive |
| 1997 | Yamaha | G22 | 48V | Drive |
| 1998 | Yamaha | G14 | 48V | Drive |
| 1998 | Yamaha | G16 | 48V | Drive |
| 1998 | Yamaha | G19 | 48V | Drive |
| 1998 | Yamaha | G22 | 48V | Drive |
| 1999 | Yamaha | G14 | 48V | Drive |
| 1999 | Yamaha | G16 | 48V | Drive |
| 1999 | Yamaha | G19 | 48V | Drive |
| 1999 | Yamaha | G22 | 48V | Drive |
| 2000 | Yamaha | G14 | 48V | Drive |
| 2000 | Yamaha | G16 | 48V | Drive |
| 2000 | Yamaha | G19 | 48V | Drive |
| 2000 | Yamaha | G22 | 48V | Drive |
| 2001 | Yamaha | G14 | 48V | Drive |
| 2001 | Yamaha | G16 | 48V | Drive |
| 2001 | Yamaha | G19 | 48V | Drive |
| 2001 | Yamaha | G22 | 48V | Drive |
| 2002 | Yamaha | G14 | 48V | Drive |
| 2002 | Yamaha | G16 | 48V | Drive |
| 2002 | Yamaha | G19 | 48V | Drive |
| 2002 | Yamaha | G22 | 48V | Drive |
| 2003 | Yamaha | G14 | 48V | Drive |
| 2003 | Yamaha | G16 | 48V | Drive |
| 2003 | Yamaha | G19 | 48V | Drive |
| 2003 | Yamaha | G22 | 48V | Drive |
| 2004 | Yamaha | G14 | 48V | Drive |
| 2004 | Yamaha | G16 | 48V | Drive |
| 2004 | Yamaha | G19 | 48V | Drive |
| 2004 | Yamaha | G22 | 48V | Drive |
| 2005 | Yamaha | G14 | 48V | Drive |
| 2005 | Yamaha | G16 | 48V | Drive |
| 2005 | Yamaha | G19 | 48V | Drive |
| 2005 | Yamaha | G22 | 48V | Drive |
| 2006 | Yamaha | G14 | 48V | Drive |
| 2006 | Yamaha | G16 | 48V | Drive |
| 2006 | Yamaha | G19 | 48V | Drive |
| 2006 | Yamaha | G22 | 48V | Drive |
Always compare the part number, dimensions, specifications, and compatibility details with your original part before ordering.
