Product Description

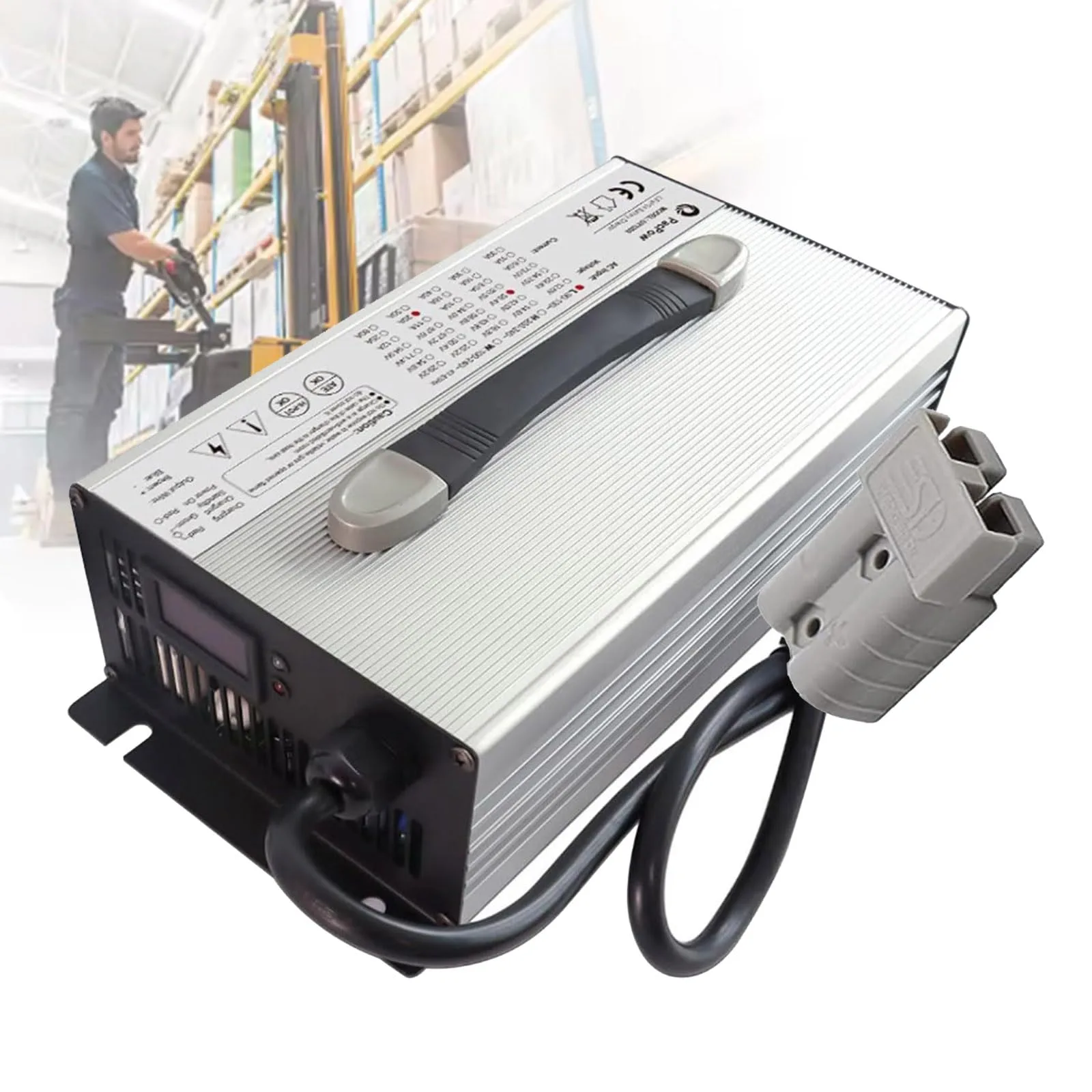

This HYDTGZ 36V lead-acid battery charger (model 50A-66003435) is a fully automatic 1500W charger that provides a 36V / 30A charging output (charging output listed as 44.1V). It accepts 110–220VAC input and offers selectable Anderson-style output connectors (50A, 120A, 175A or 350A). The charger includes an LCD that displays voltage, current, time and charged amp-hours.

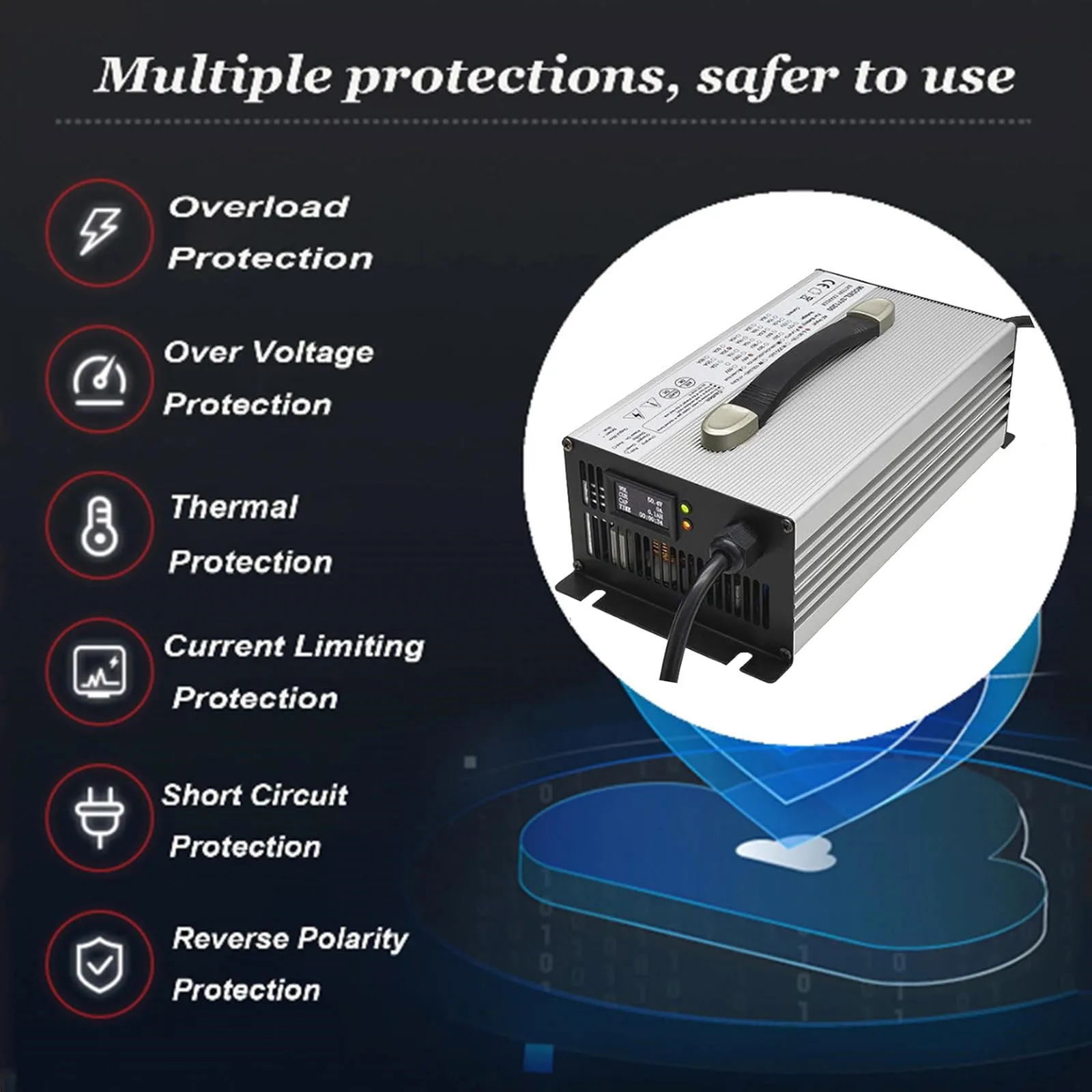

The unit features multiple built-in protections — short circuit, overvoltage, overtemperature, overcurrent and reverse polarity protection — plus a cooling fan and an aluminum-alloy housing with a carrying handle. The listing indicates suitability for various electric vehicles and equipment, including electric forklifts, pallet trucks, sweepers, golf carts and similar machines; verify the battery voltage matches the charger before use.
Product Specifications
BrandHYDTGZ
ManufacturerHYDTGZ
Item Weight4.5 kg
Power1500W
DC Voltage36V (charging output listed as 44.1V)
Output Current30A
AC Input110–220 VAC, 50/60 Hz

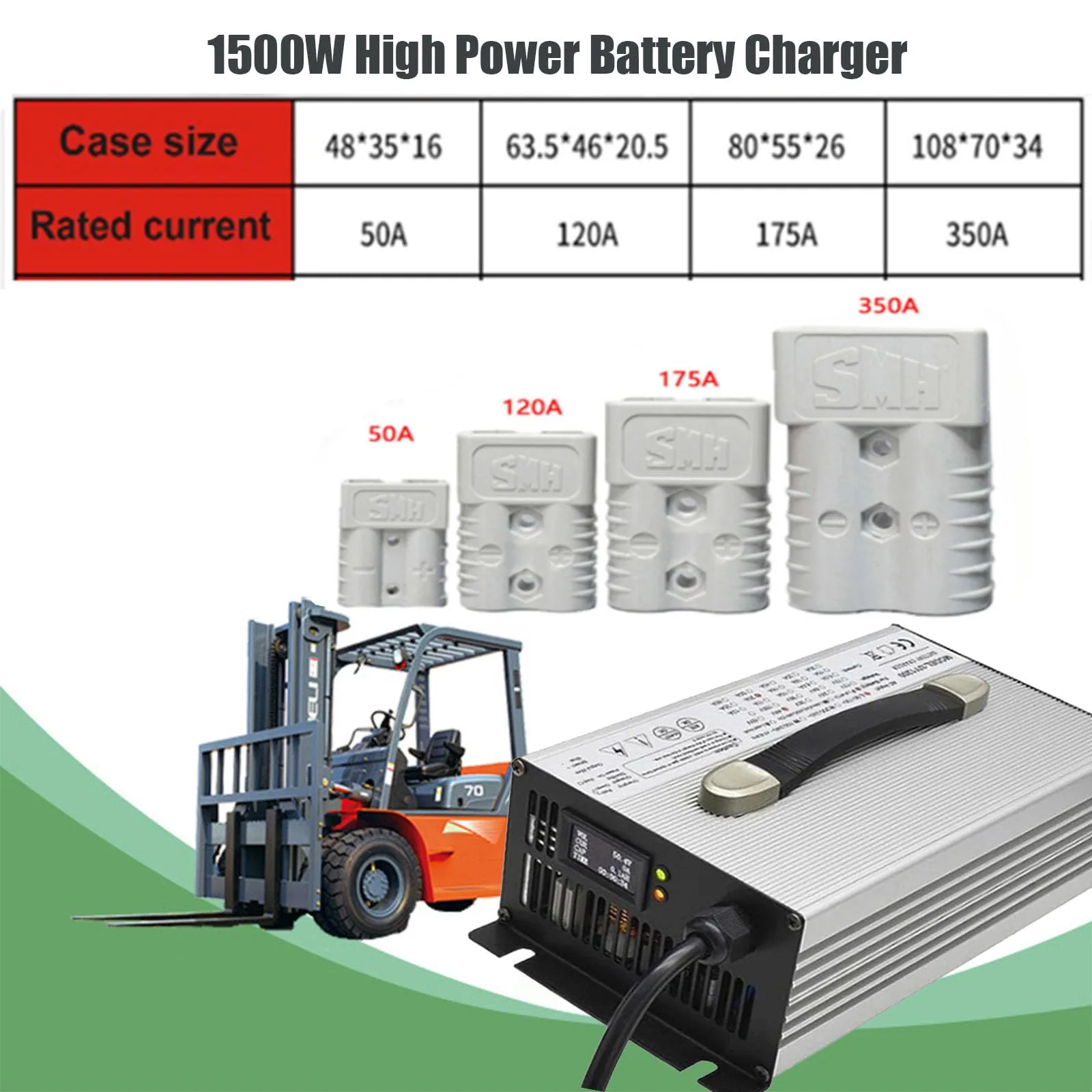

Output Connector Options50A / 120A / 175A / 350A Anderson (gray)
Shell MaterialAluminum alloy
ColorSilver
Item Weight4.5 kg

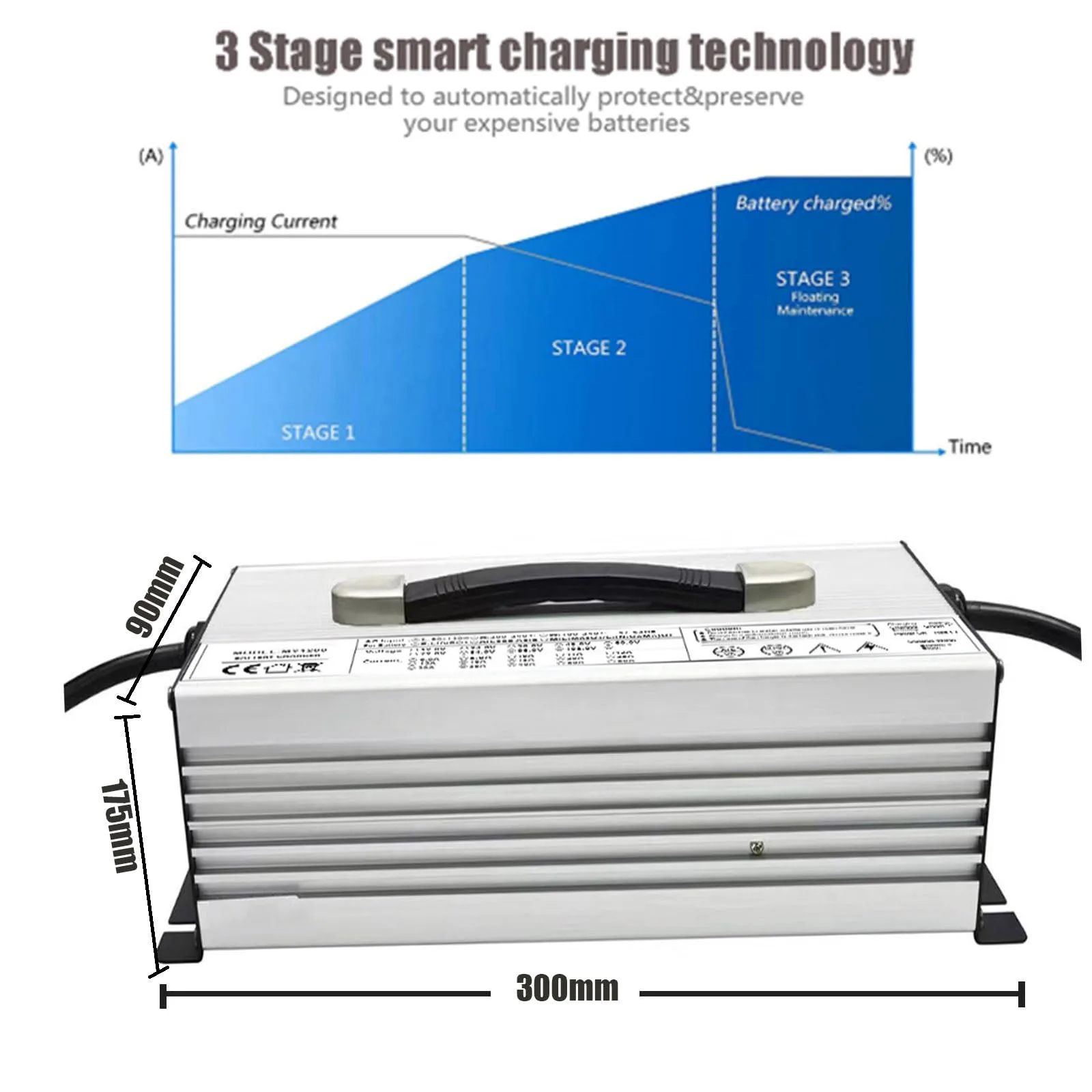

Dimensions300 x 175 x 90 mm
Model / MPN50A-66003435
