Product Description

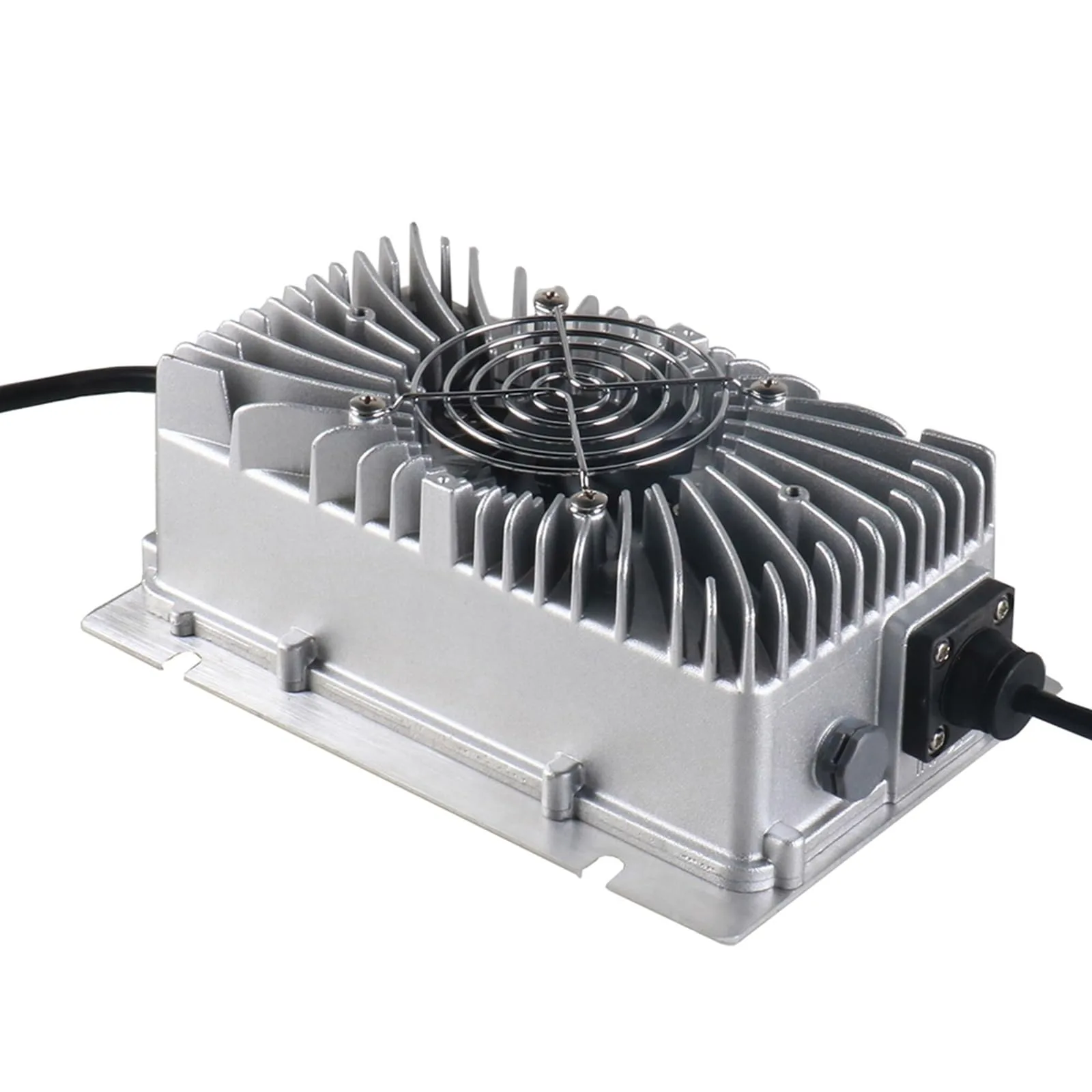

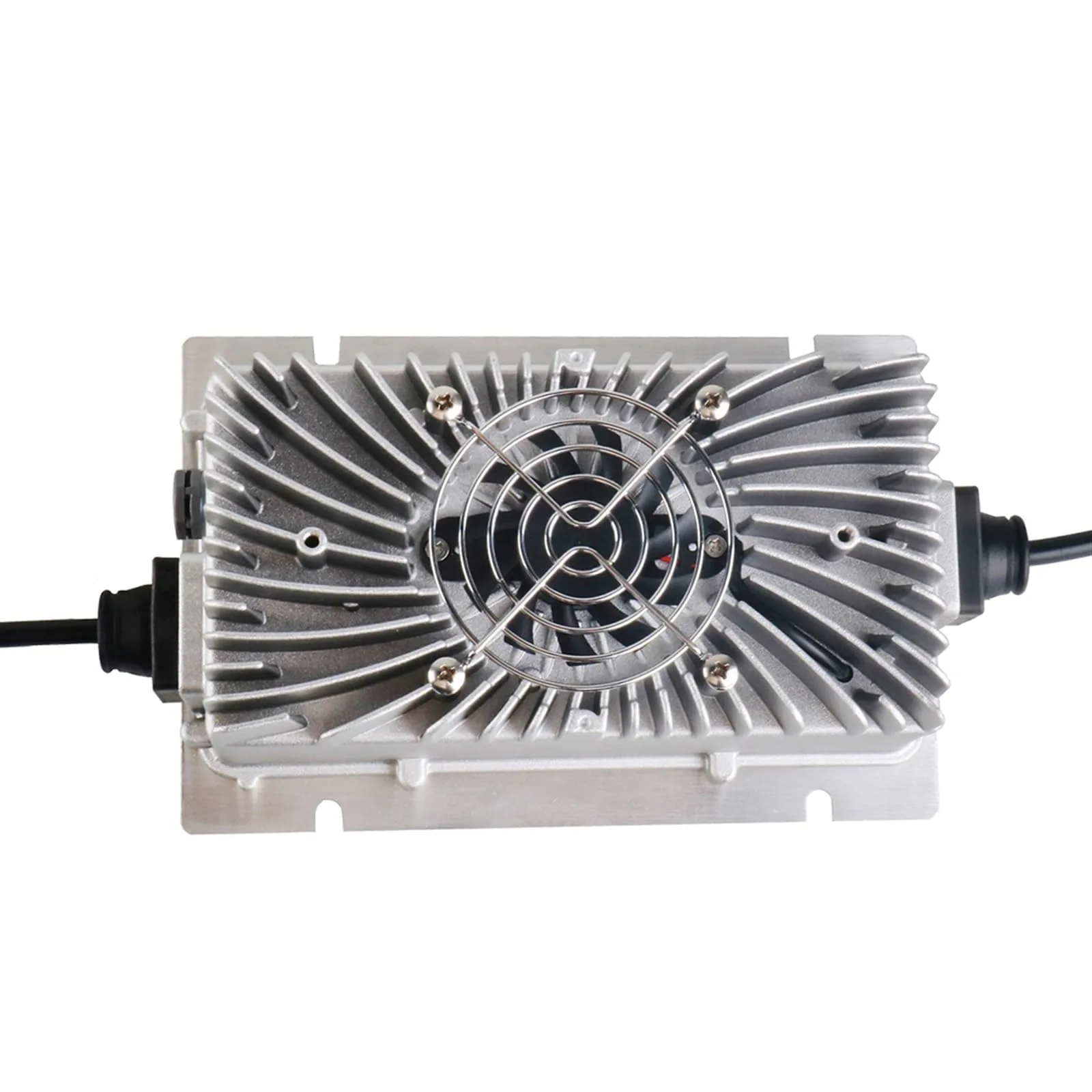

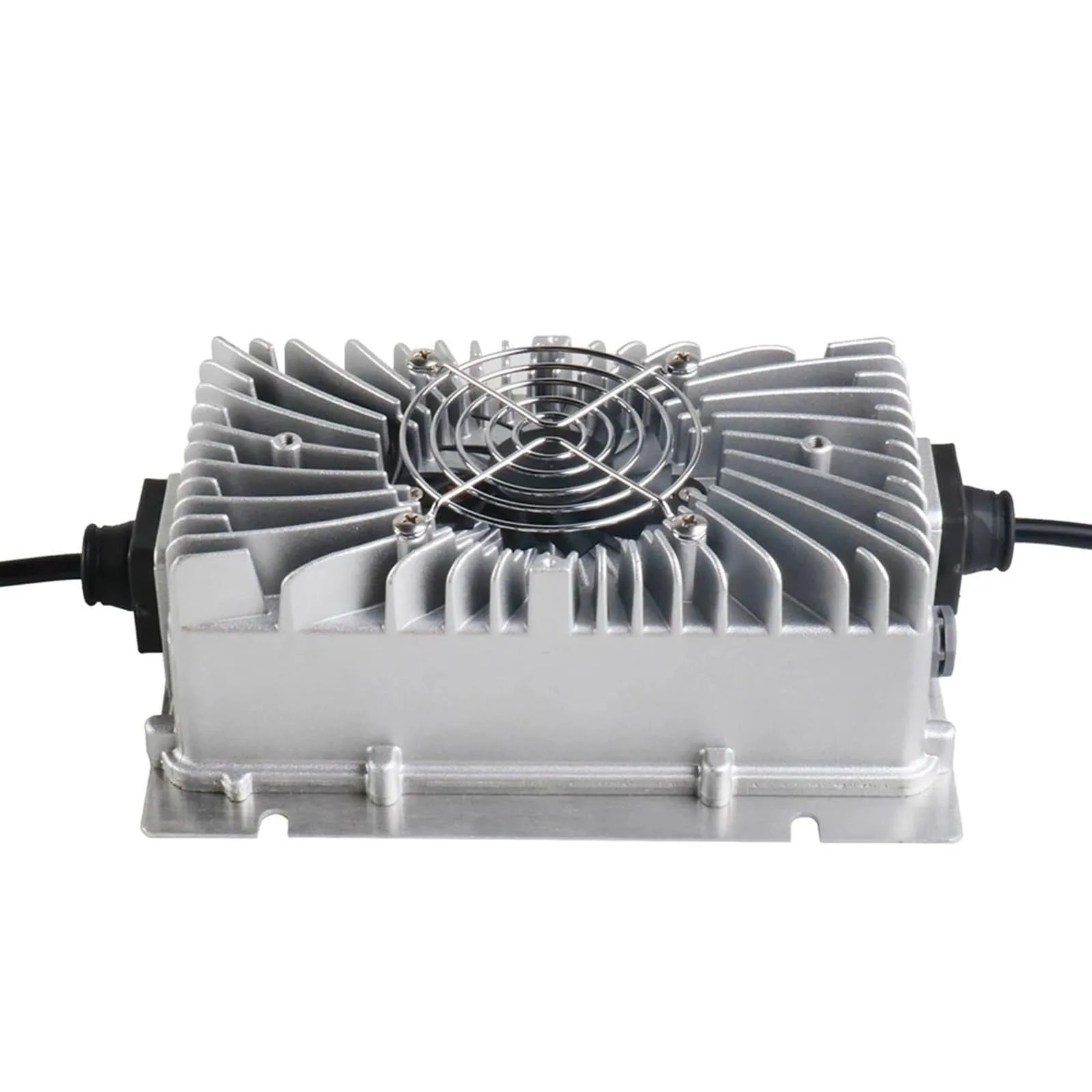

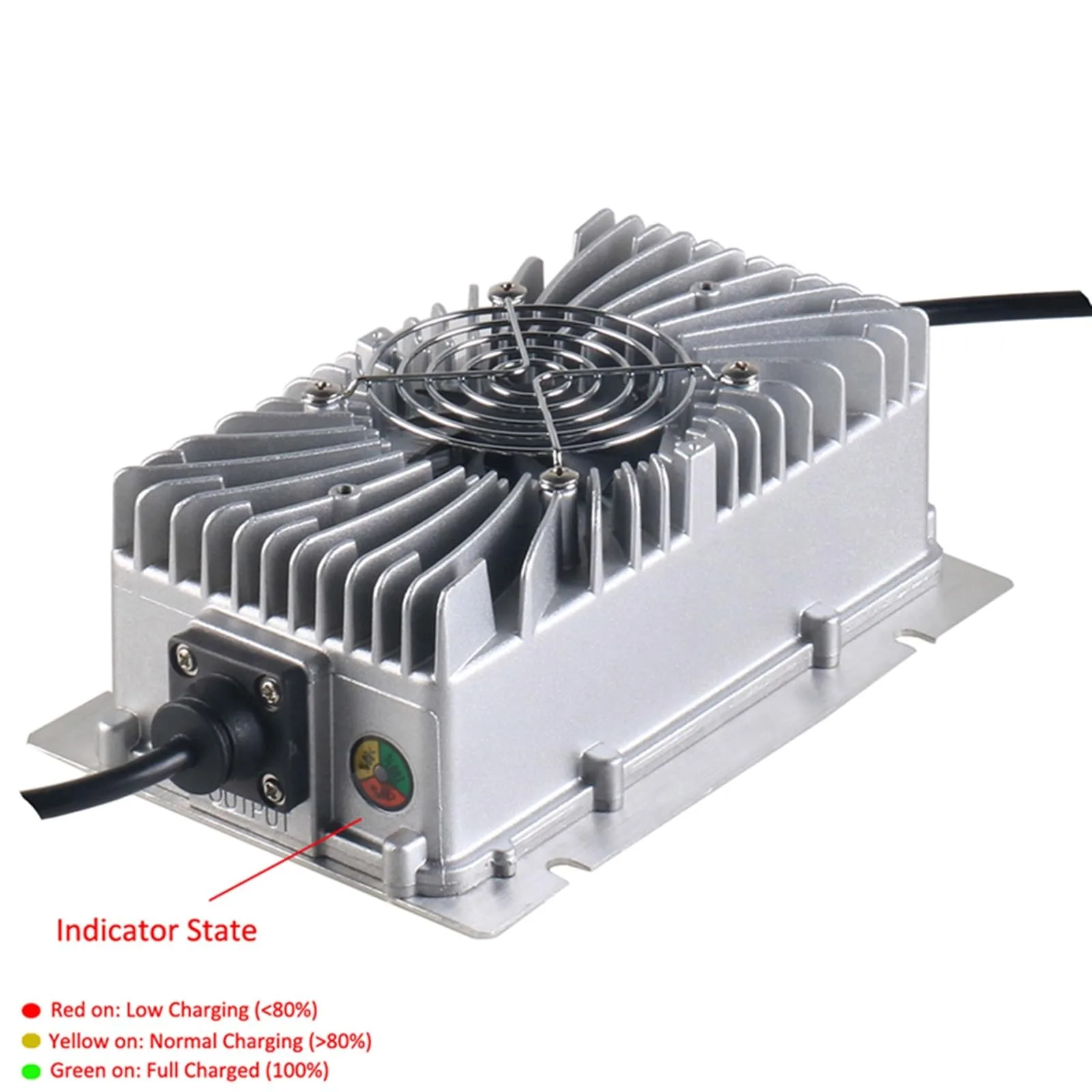

This LIXIAOC charger (model lxc0534) is a waterproof charging unit designed for 29.2V LiFePO4 battery packs used in 24V golf carts and similar equipment. It is offered with 10A or 20A output current options and uses a two-stage CC/CV charge profile suitable for 8S LiFePO4 batteries.
The charger is IP67 rated for waterproofing and includes multiple built-in protections: short-circuit, over-current, over-voltage, reverse polarity, and over-temperature. Confirm the required charging interface when ordering so the seller can verify the correct connector for your application.
Product Specifications
BrandLIXIAOC
ManufacturerBrand: LIXIAOC
Item Weight50 g
Output voltage29.2V
Output current10A or 20A
Power300W / 600W
Charge mode2-stage (CC, CV)
Waterproof ratingIP67
ProtectionsShort-circuit, Over-current, Over-voltage, Reverse polarity, Over-temperature
Model / MPNlxc0534
Sizes185 x 124 x 70 mm or 230 x 130 x 77 mm
Weightabout 1.7 kg or 2.5 kg
ColorSilver
