Nilight 90517B E-Z-GO TXT PDS Console Panel
$44.99
In stock
✓ Free Shipping

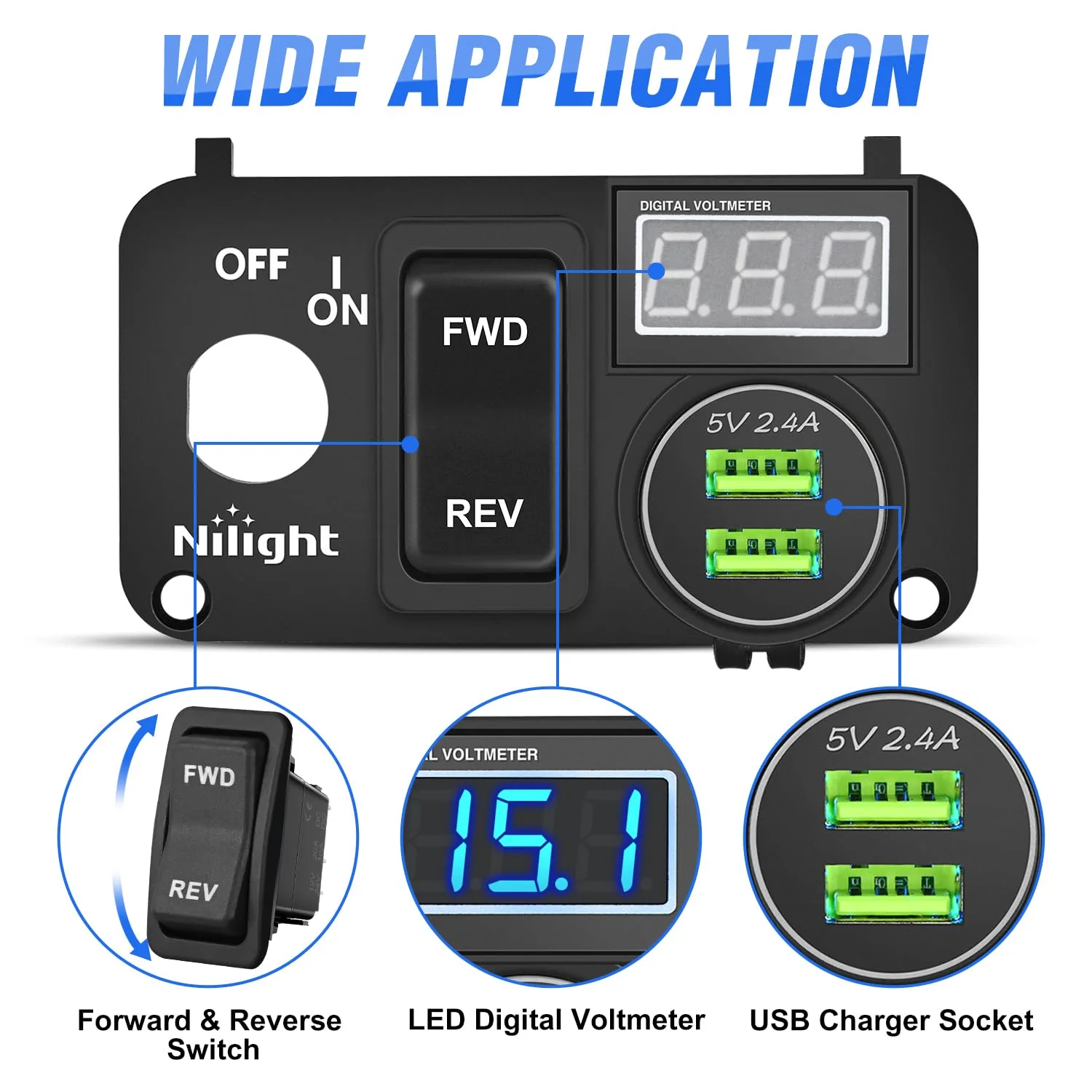

Multifunction Nilight console panel for 2003-up E-Z-GO TXT PDS golf carts with forward/reverse switch, LED voltmeter, and dual USB charging ports.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandNilight
MPN / Part Number90517B
OEM / OE NumberEZGO 74323G01
Part TypeGolf cart console panel
PositionDash
Product Description
Nilight 90517B multifunction golf cart console panel for 2003-up E-Z-GO TXT PDS golf carts. The panel combines a forward/reverse switch, LED voltmeter, and dual USB charging ports in an integrated dash-mounted design. It is not applicable to DCS or series drive system golf carts.

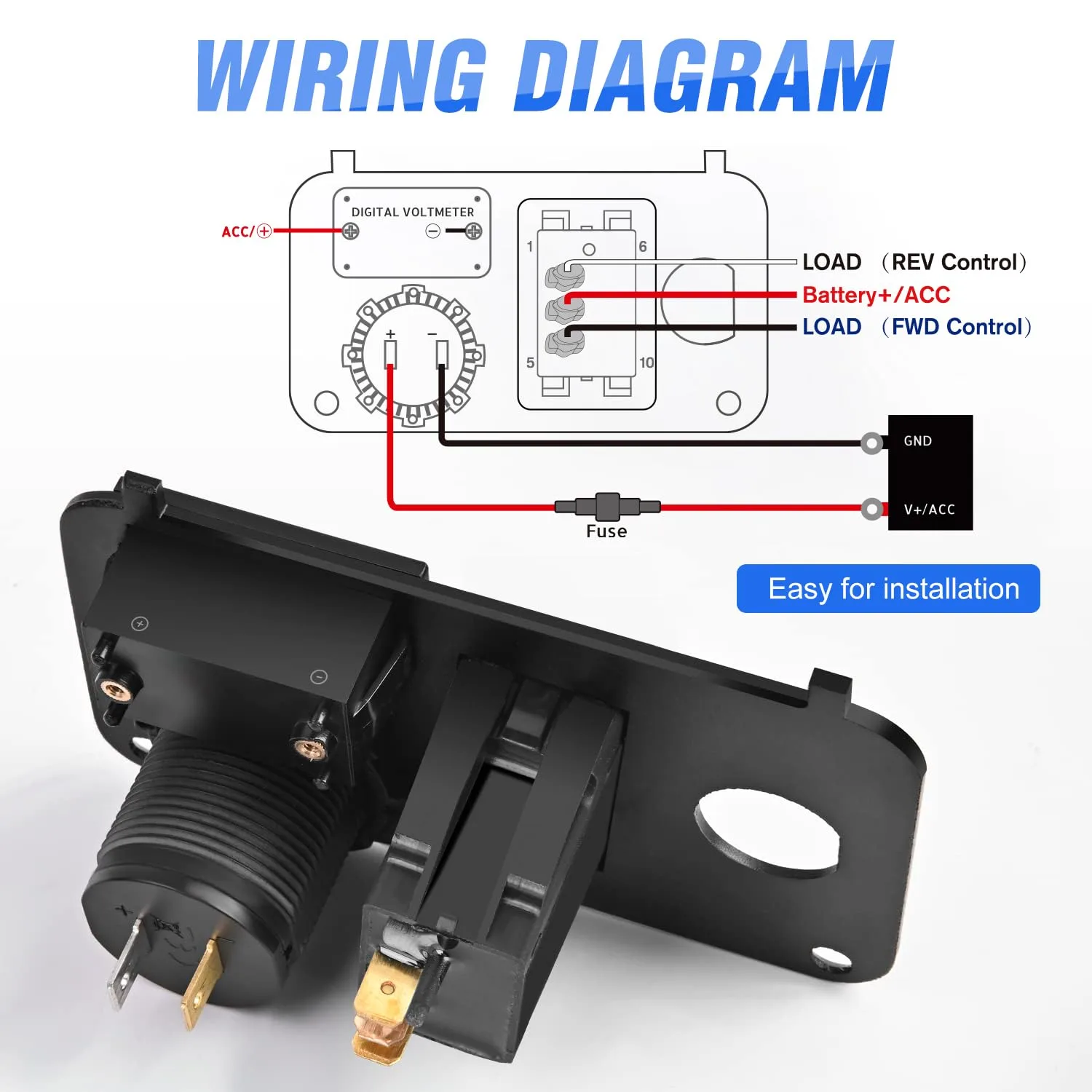

The USB charger accepts 9V-48V DC input and provides 5V DC at 2.4A for charging two devices. The panel also includes a wiring harness, screws, and an LED voltmeter for monitoring battery voltage.
The USB charger accepts 9V-48V DC input and provides 5V DC at 2.4A for charging two devices. The panel also includes a wiring harness, screws, and an LED voltmeter for monitoring battery voltage.
Product Specifications
BrandNilight
ManufacturerNilight
Model90517B
Model90517B
Input voltage9V-48V DC
USB output5V DC, 2.4A
Voltmeter input voltage12-120V DC
Forward/reverse switch rating12V DC 20A; 24V 10A
Protection ratingIP65
Panel materialAluminum alloy
Switch materialABS and PC
Connector typeQuick Connect
Mounting typePanel Mount
Golf Cart Compatibility
| Year | Make | Model | Power / Engine | Variant |
|---|---|---|---|---|
| 2003 | E-Z-GO | TXT | PDS |
Always compare the part number, dimensions, specifications, and compatibility details with your original part before ordering.
