Product Description

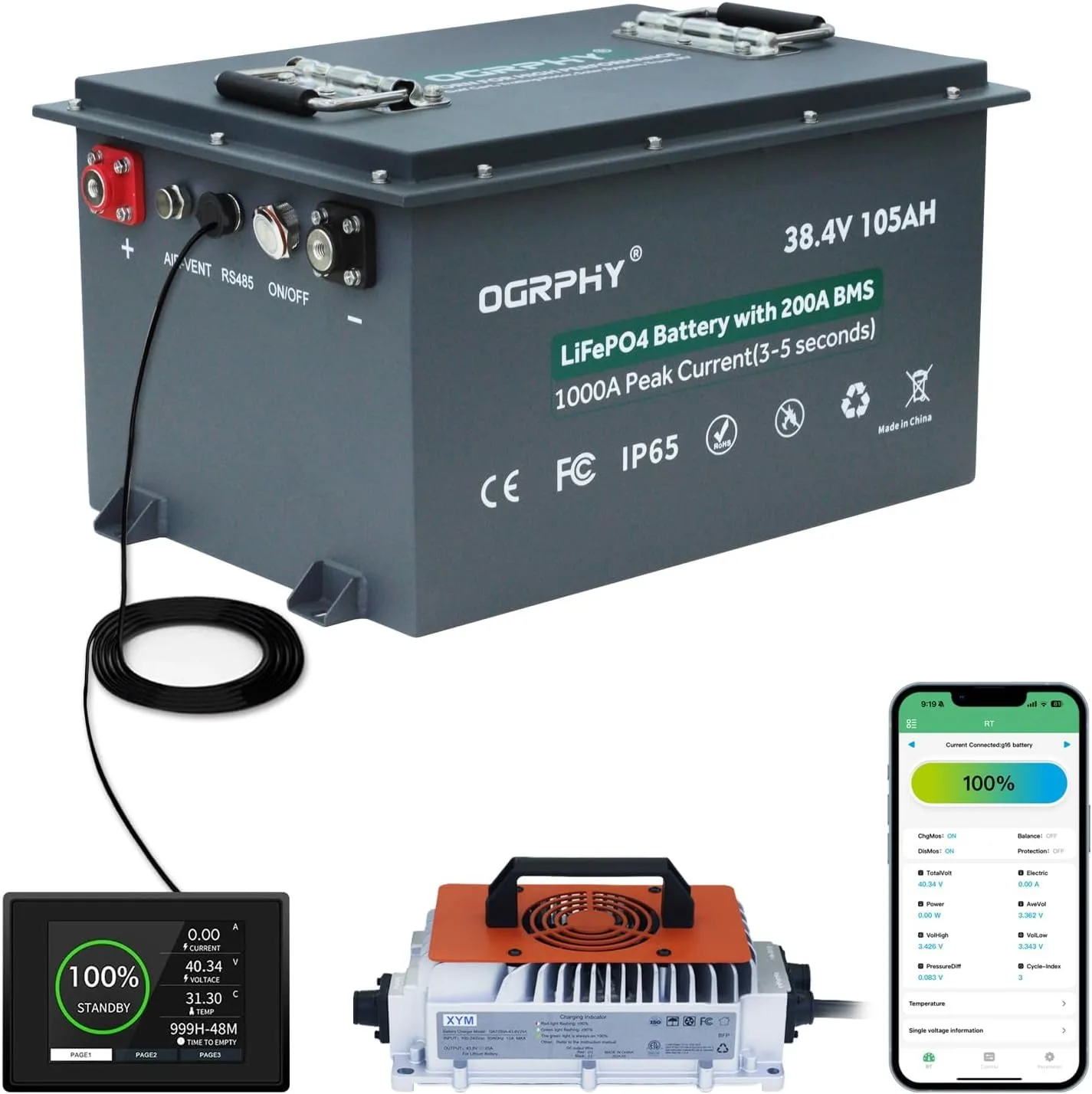

This is an OGRPHY 36V 105Ah LiFePO4 battery kit (OG-36V 105AH) intended for use in 36V golf carts and suitable for trolling motors. The battery includes a built-in 200A BMS with peak current capability up to 1000A for short bursts, an LCD touch monitor and a mobile app for real-time status monitoring. A 38.4V 25A lithium battery charger and M8 terminals are included.
The battery is specified at 105Ah (4.03 kWh nominal capacity), uses prismatic LiFePO4 cells, and lists more than 4000 deep cycles at 80% depth-of-discharge. The kit lists item dimensions of 15.7L x 11.6W x 8.66H inches, weight 77.1 pounds, and a 5-year manufacturer warranty.
Product Specifications
BrandOGRPHY
ManufacturerOGRPHY
Manufacturer Part NumberOG-36V 105AH
Item Weight77.1 pounds
Voltage38.4 V DC
Capacity105 Ah (4.03 kWh)
Battery ChemistryLiFePO4 (prismatic cells)
BMS Rating200A continuous, peak up to 1000A (short bursts)
Included Charger38.4V 25A lithium battery charger

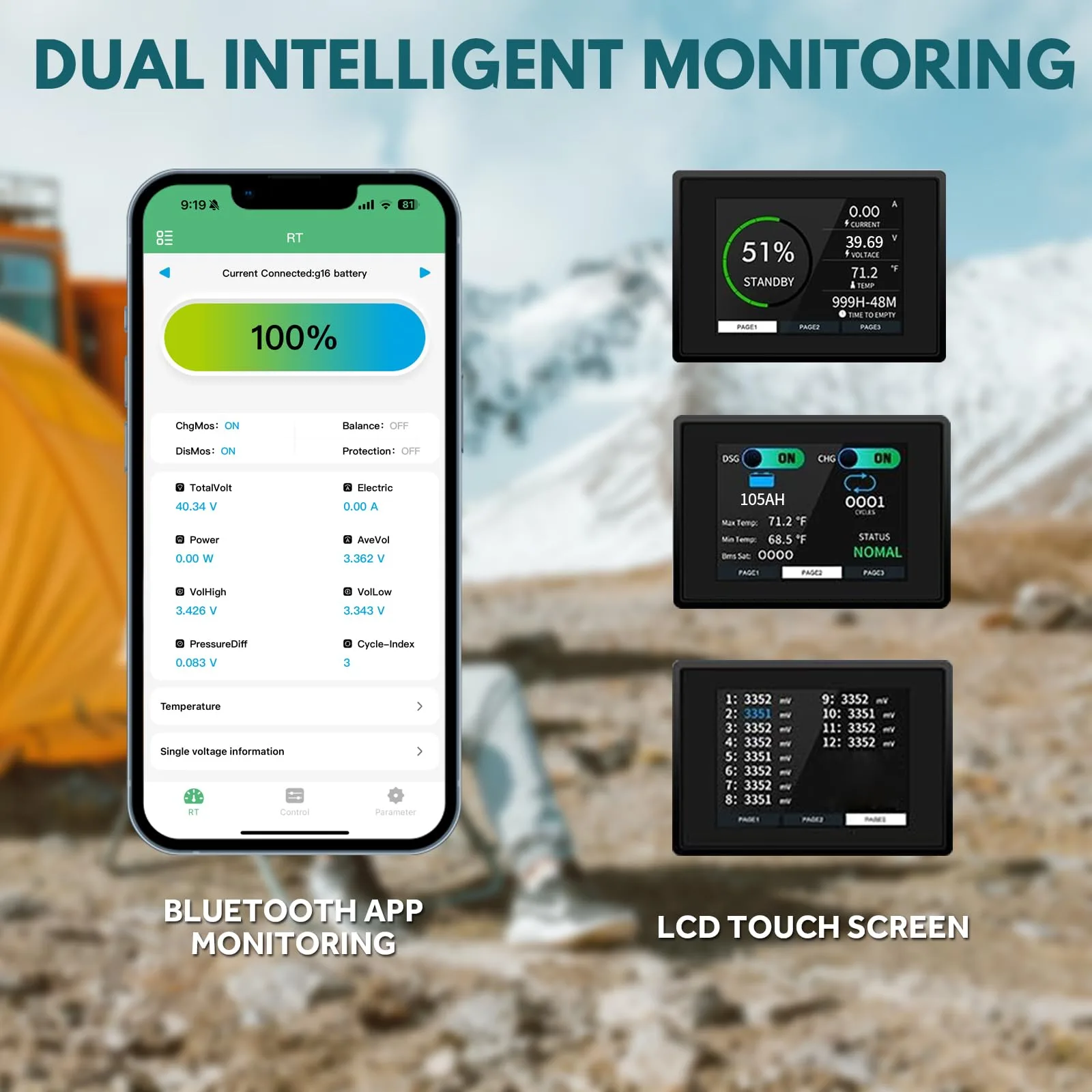

MonitorLCD touch monitor with mobile app
TerminalsM8

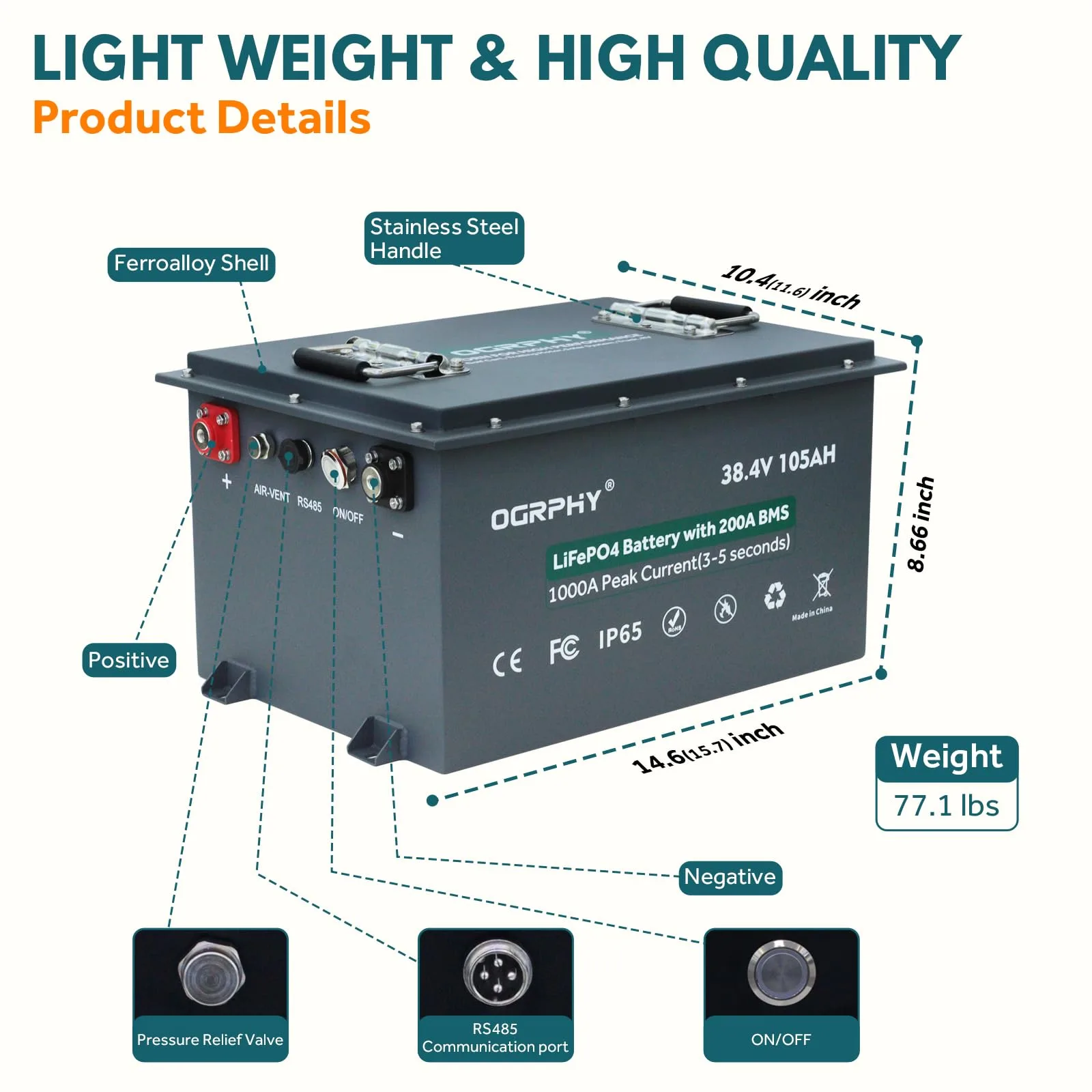

Item Dimensions15.7 x 11.6 x 8.66 inches (L x W x H)
Item Weight77.1 pounds
Manufacturer Part NumberOG-36V 105AH
Model NumberGC36105
ManufacturerShenzhen Grenergy Technology Co., Ltd
Cycles4000+ deep cycles (80% DOD)
Suitable For36V golf carts and trolling motors (recommended for 101–112 lbs / up to 120A thrust trolling motors)
