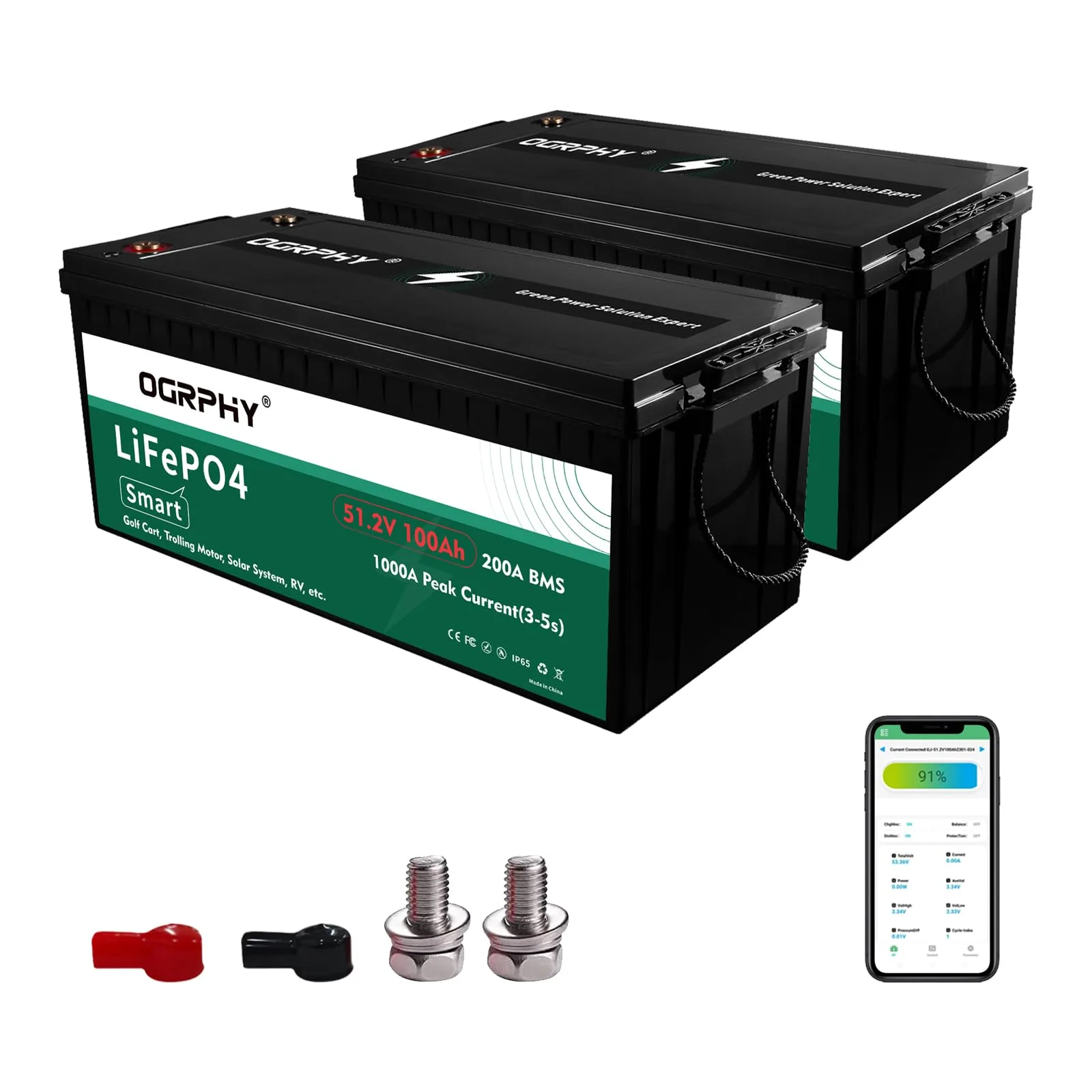

OGRPHY 48V 100Ah LiFePO4 Golf Cart Battery LAF48100
$2,245.99
In stock
✓ Free Shipping
48V 100Ah LiFePO4 (51.2V) golf cart battery from OGRPHY with 200A BMS, Bluetooth monitoring, 5.12 kWh capacity and high continuous and peak discharge ratings.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandOGRPHY
MPN / Part NumberLAF48100
Part Type48V LiFePO4 Battery
Product Description
The OGRPHY LAF48100 is a 48V (nominal 51.2V) 100Ah LiFePO4 battery providing 5.12 kWh of usable energy. It includes an integrated 200A battery management system (BMS) with Bluetooth monitoring for real-time parameters and protection functions such as over/under voltage, overcurrent, short circuit and temperature protections.
Electrical highlights include a 200A maximum continuous discharge current, short-duration peak discharge capability up to 1000A (3–5 s), recommended charge current 30A, and charge voltage range 56.8–58.4V. The pack is intended for 48V applications such as golf carts, RVs, boats (48V trolling motors), marine and off-grid systems.
Electrical highlights include a 200A maximum continuous discharge current, short-duration peak discharge capability up to 1000A (3–5 s), recommended charge current 30A, and charge voltage range 56.8–58.4V. The pack is intended for 48V applications such as golf carts, RVs, boats (48V trolling motors), marine and off-grid systems.
Product Specifications
BrandOGRPHY
ManufacturerOGRPHY
Item Weight88.1 pounds
Nominal Voltage51.2 V
Capacity100 Ah
Energy5120 Wh
BMS Continuous Discharge200 A
Peak Discharge1000 A (3-5 s)
Cycle Life>2000 cycles @ 100% DOD; >5000 cycles @ 80% DOD
Charge Voltage56.8–58.4 V
Recommended Charge Current30 A
Max Charge Current150 A
Cell ChemistryLiFePO4
Case MaterialABS

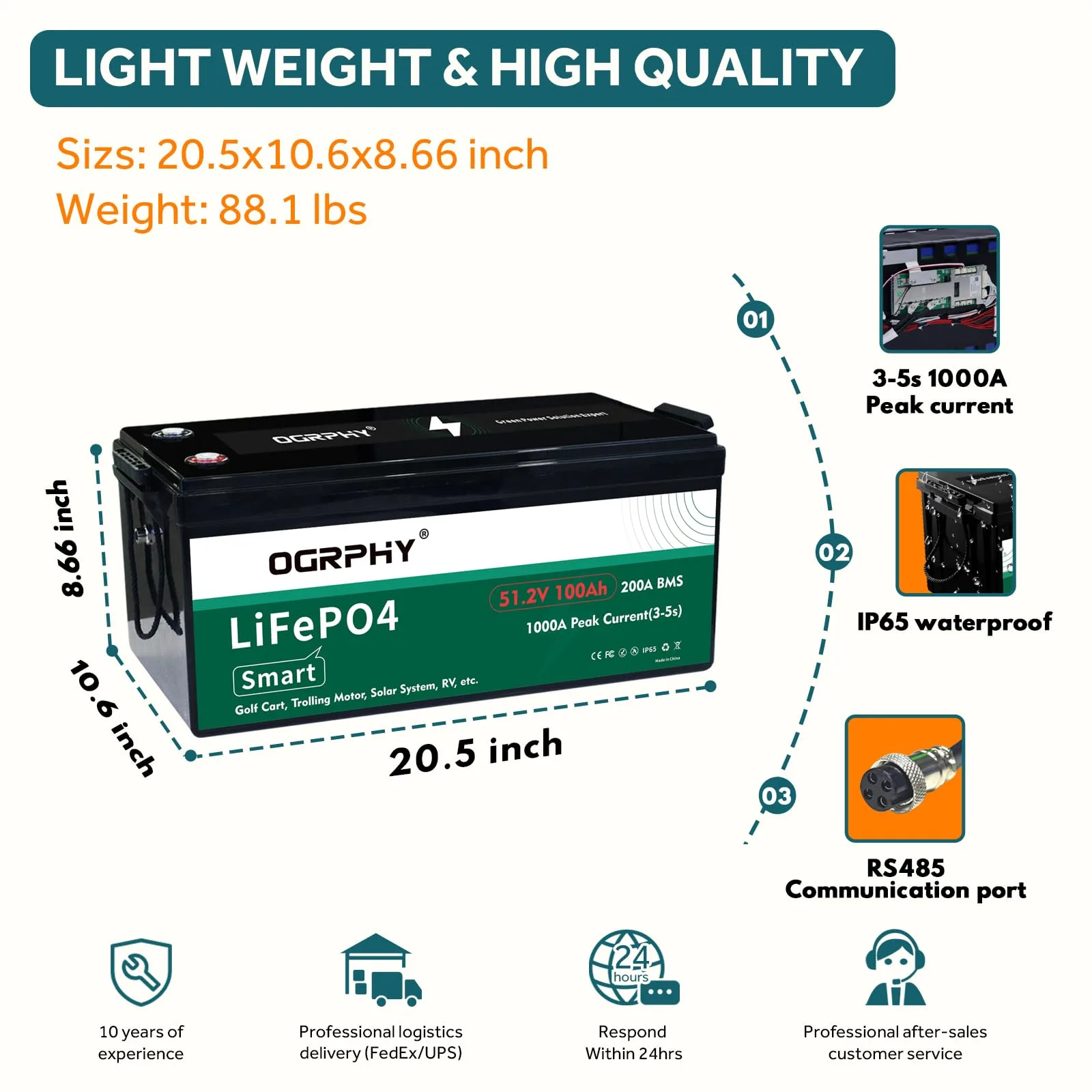

Dimensions (approx)20.4 x 10.6 x 8.66 in
Item Weight88.1 pounds
Terminal TypeM8
Model NumberLAF48100
IP RatingIP65
