Partayoza 36V 275A Golf Cart Speed Controller
$159.99
In stock
✓ Free Shipping
36V, 275A Partayoza golf cart speed controller with a default 0–5KΩ throttle setting, listed for Club Car, Columbia, E-Z-GO, Nordskop, and Melex applications.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandPartayoza
MPN / Part Number1204M027,1204-4201
OEM / OE Number1204-027
Part TypeSpeed controller
Product Description

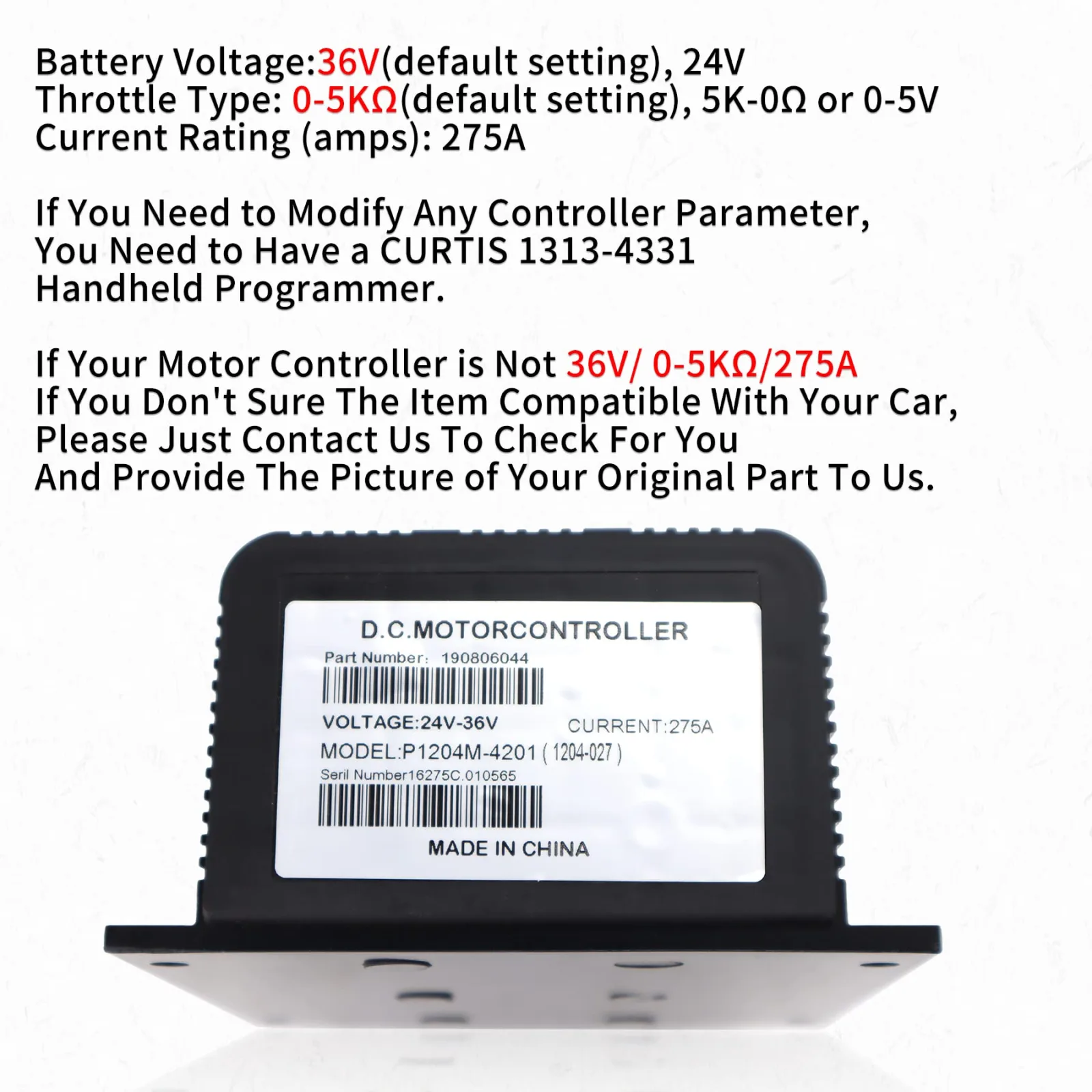

Partayoza 36V, 275A golf cart speed controller with a default 0–5KΩ throttle setting. It is listed as a replacement for Curtis 1204 controller numbers 1204-027, 1204-009, and 1204-032, as well as E-Z-GO 20972-G1.
The controller is identified as compatible with Club Car, Columbia, E-Z-GO, Nordskop, and Melex golf carts. It supports adjustable throttle inputs and controller parameters when used with a compatible Curtis handheld programmer.
The controller is identified as compatible with Club Car, Columbia, E-Z-GO, Nordskop, and Melex golf carts. It supports adjustable throttle inputs and controller parameters when used with a compatible Curtis handheld programmer.
Product Specifications
BrandPartayoza
ManufacturerPartayoza
Voltage36 volts default; 24V setting also supported
Current rating275 amps for 2 minutes; 200 amps for 5 minutes; 125 amps for 1 hour
Default throttle type0–5KΩ
Throttle inputsSupports ten throttle types, including 0–5KΩ potentiometer and single-ended voltage inputs
Plug brakingYes, A2 busbar
Status LED output currentLess than 2 mA maximum
Operating ambient temperature-40°C to 50°C
Storage ambient temperature-40°C to 85°C
Display typeLCD or LED
MaterialPlastic
ColorBlack
