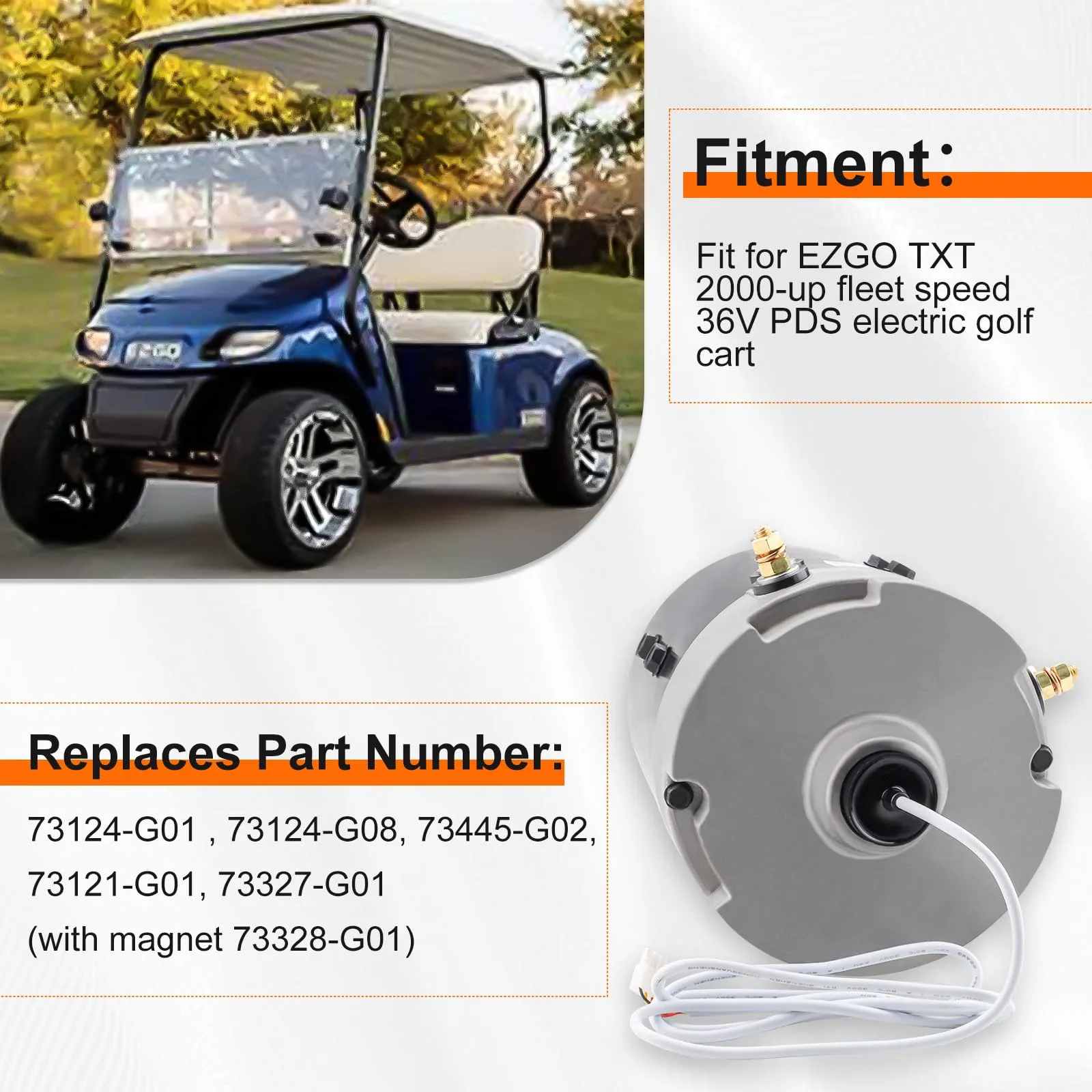

PARTAYOZAS 36V Motor for E-Z-GO TXT PDS Golf Carts
$776.99
In stock
✓ Free Shipping
36V SepEx DC motor for 2000-2009 E-Z-GO TXT PDS electric golf carts, with speed sensor and magnet included.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandPARTAYOZAS
MPN / Part NumberPART-006
OEM / OE Number73124-G01
Part TypeDC motor
Product Description

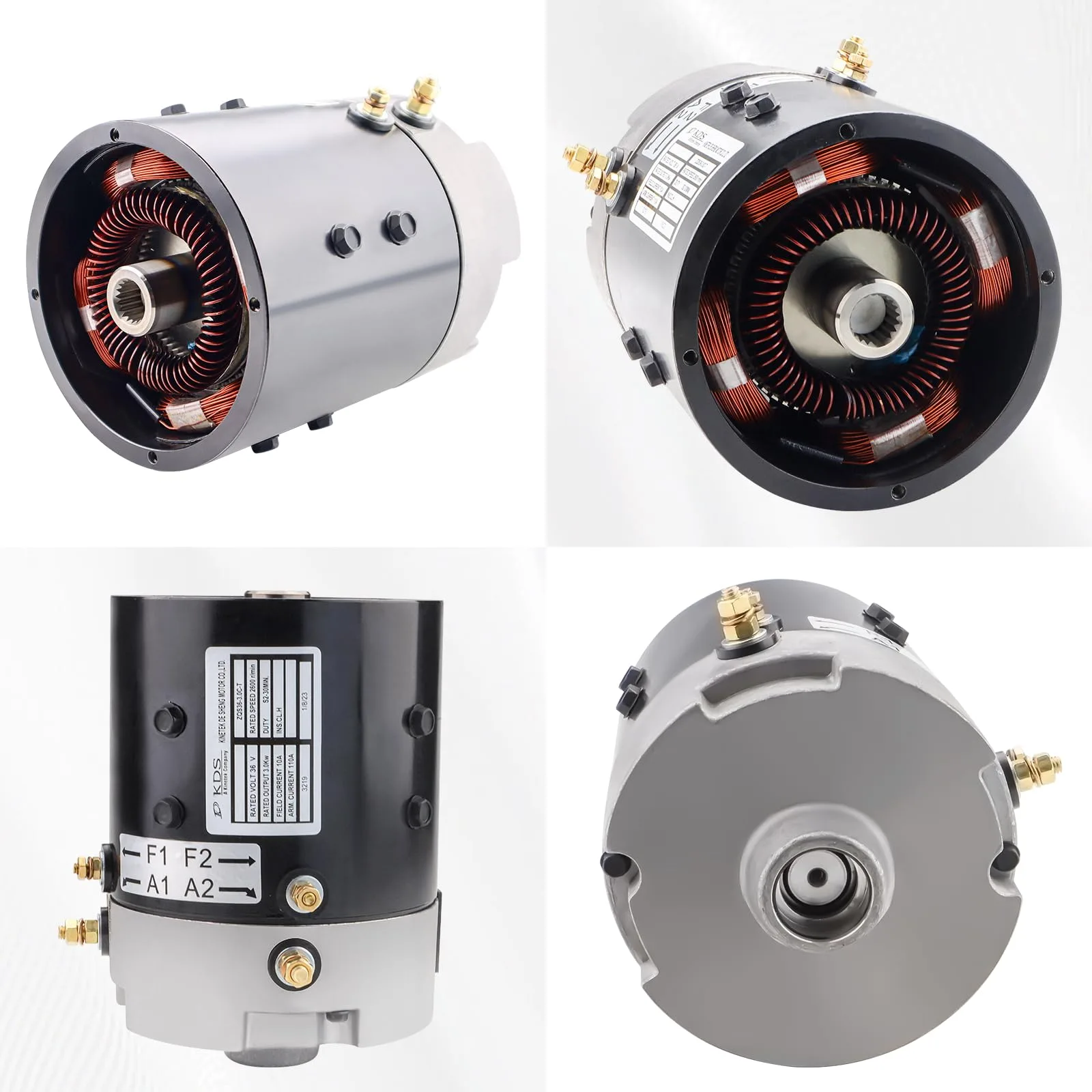

PARTAYOZAS 36-volt SepEx DC motor for E-Z-GO TXT PDS electric golf carts from 2000 through 2009. The motor is rated at 3.0 kW and 2,600 r/min, with a 19-tooth spline and an included speed sensor with magnet. It is identified by part number PART-006 and model 73124-G08.
Product Specifications
BrandPARTAYOZAS
ManufacturerBrand: PARTAYOZAS
Model73124-G08
Item Weight40 pounds
Voltage36 volts
Rated speed2600 r/min
Rated output3.0 kW
DutyS2-30MIN
Field current10 A
Armature current110 A
Spline19 teeth
Included sensorSpeed sensor 73327-G01 with magnet 73328-G01
MaterialMetal
Item weight40 pounds

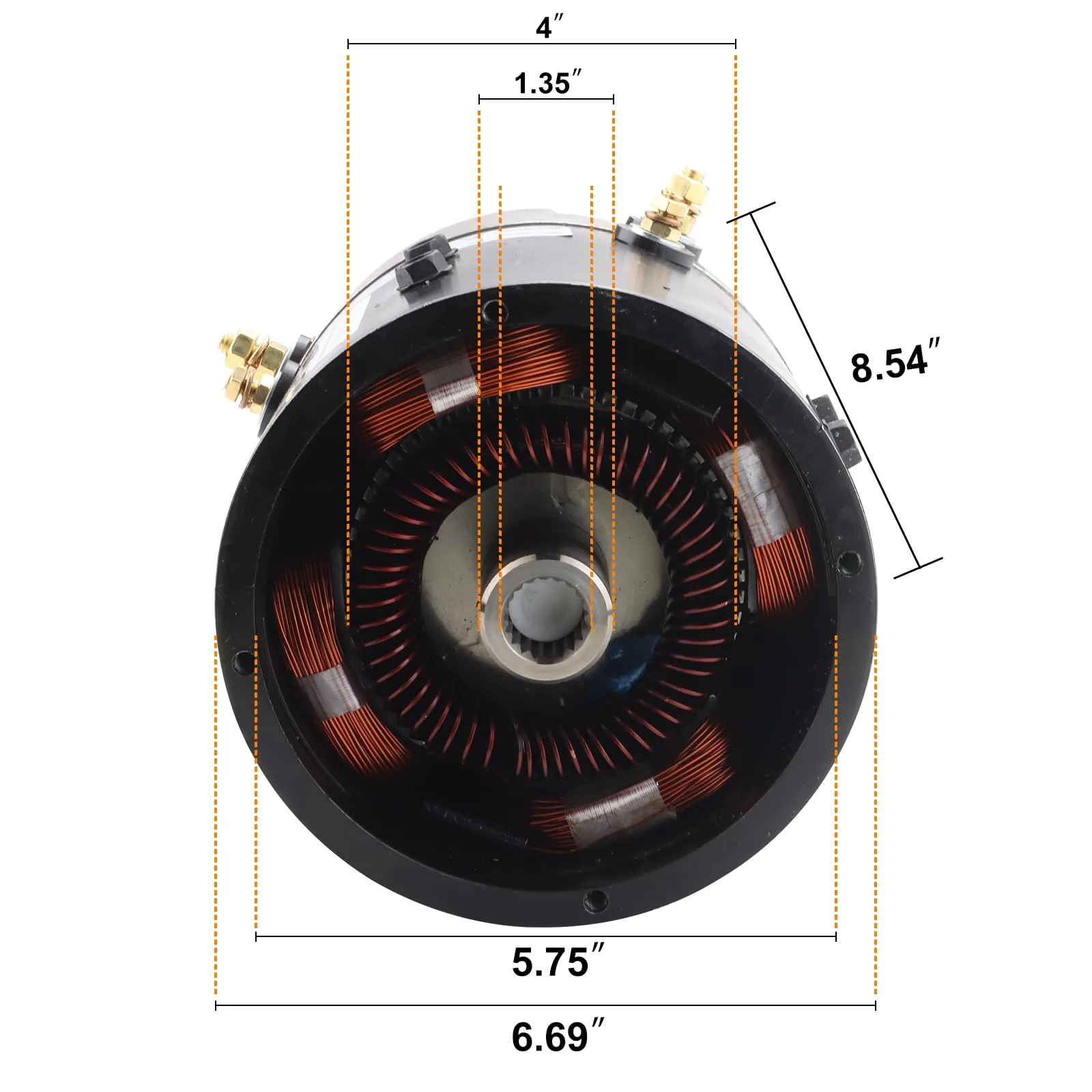

Dimensions11 in W x 15 in H
Horsepower4 hp
Golf Cart Compatibility
| Year | Make | Model | Power / Engine | Variant |
|---|---|---|---|---|
| 2000 | E-Z-GO | TXT PDS | Electric, 36V | PDS |
| 2001 | E-Z-GO | TXT PDS | Electric, 36V | PDS |
| 2002 | E-Z-GO | TXT PDS | Electric, 36V | PDS |
| 2003 | E-Z-GO | TXT PDS | Electric, 36V | PDS |
| 2004 | E-Z-GO | TXT PDS | Electric, 36V | PDS |
| 2005 | E-Z-GO | TXT PDS | Electric, 36V | PDS |
| 2006 | E-Z-GO | TXT PDS | Electric, 36V | PDS |
| 2007 | E-Z-GO | TXT PDS | Electric, 36V | PDS |
| 2008 | E-Z-GO | TXT PDS | Electric, 36V | PDS |
| 2009 | E-Z-GO | TXT PDS | Electric, 36V | PDS |
Always compare the part number, dimensions, specifications, and compatibility details with your original part before ordering.
