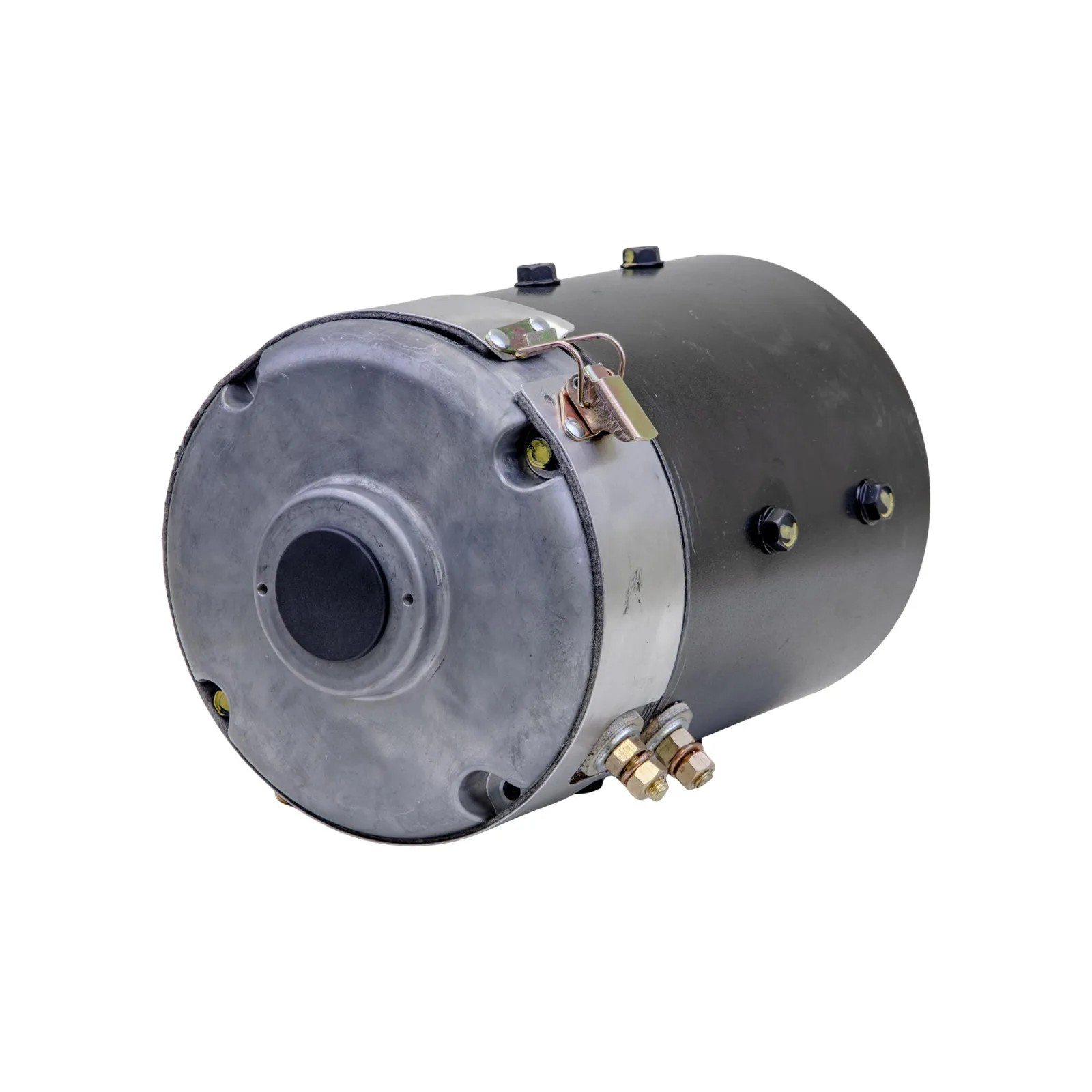

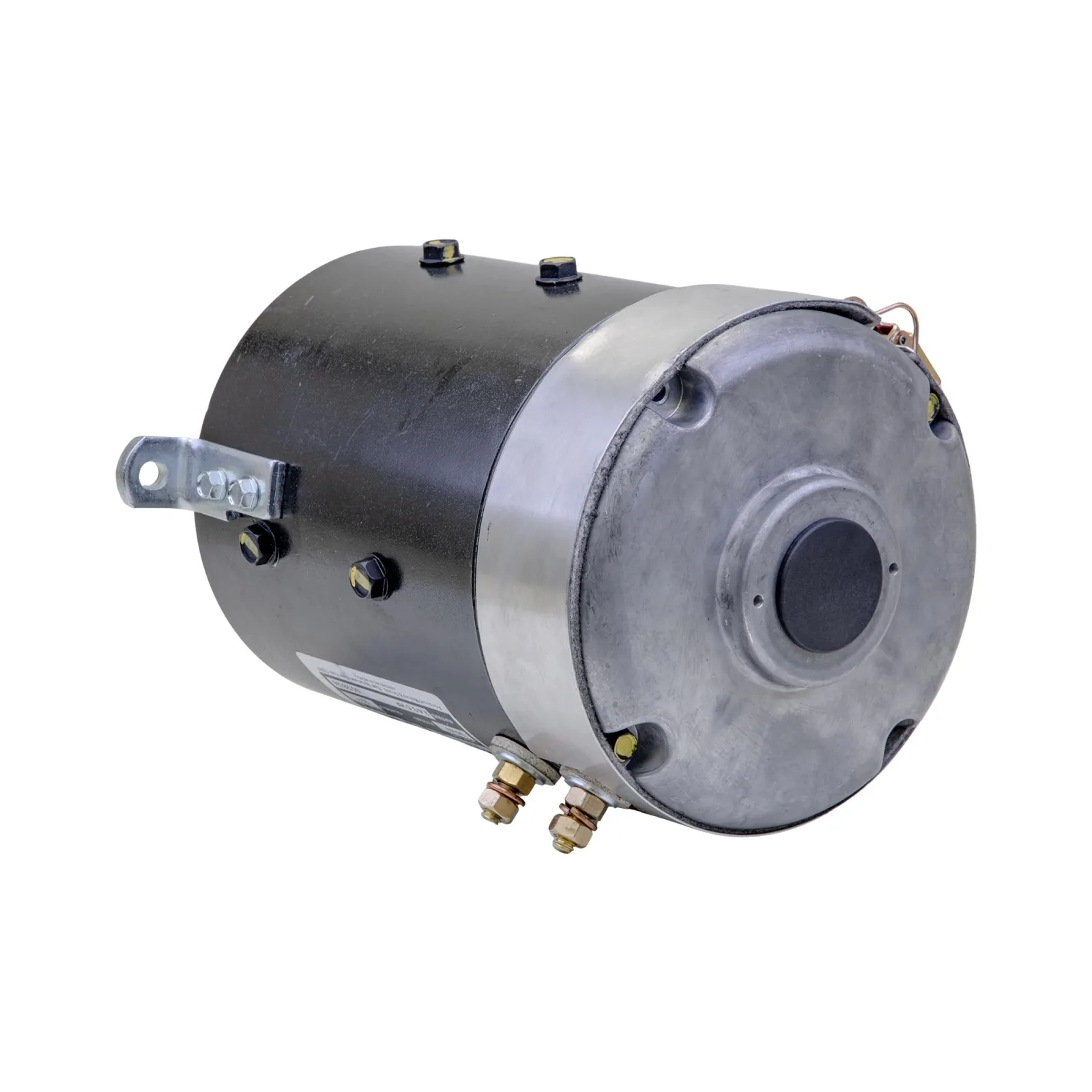

Performance Plus Carts 7175 Motor for Club Car DS 36V/48V

Performance Plus Carts 7175 Motor for Club Car DS 36V/48V

$998.99
In stock
✓ Free Shipping

Stock-grade 10-spline Nidec/AMD DC motor for 1984-2015 Club Car DS 36V and 48V Series golf carts.

Price shown is the online purchase price. Free shipping · 30-day return policy

BrandPerformance Plus Carts
MPN / Part Number7175
OEM / OE NumberGR1-4001
Part TypeDC motor

Product Description

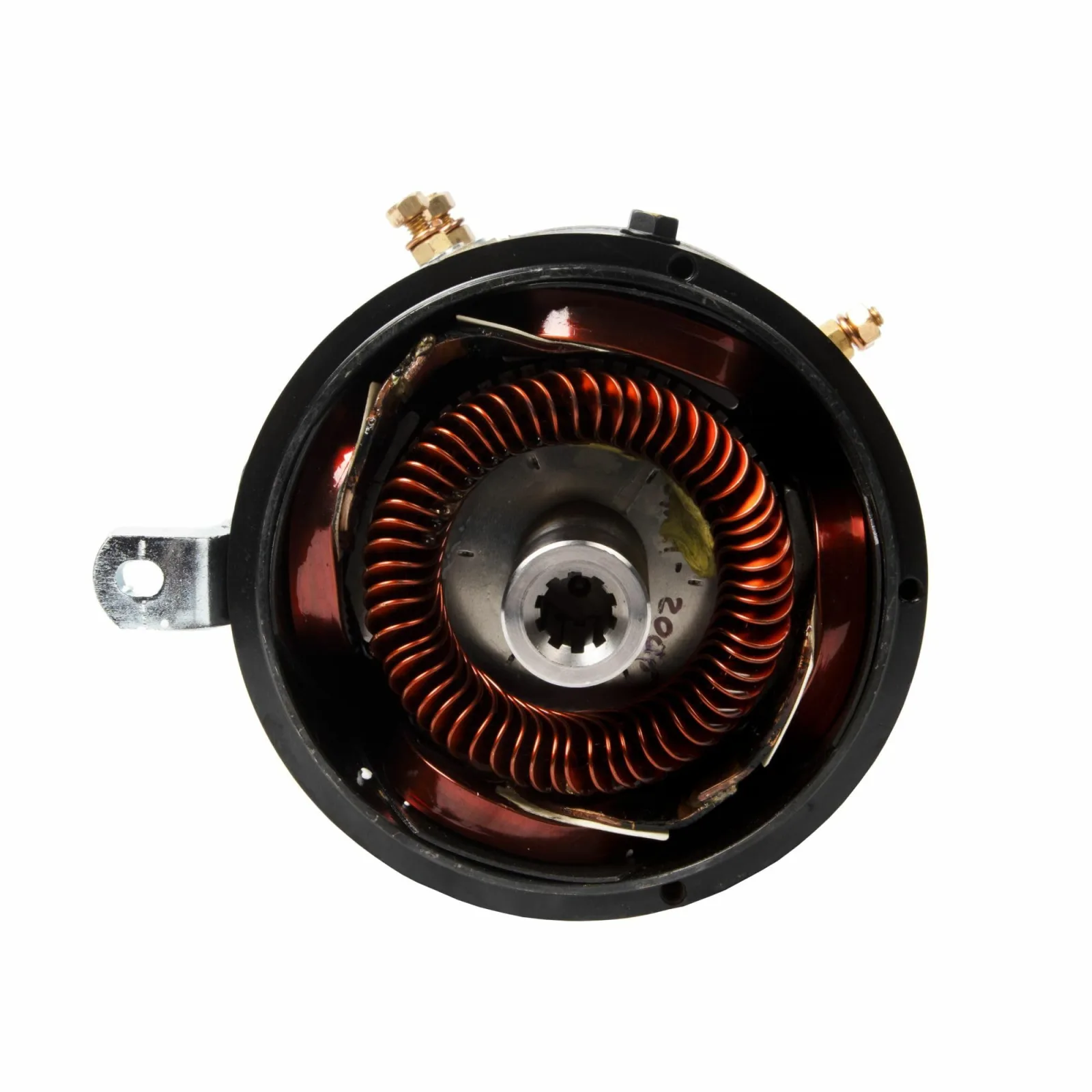

The Performance Plus Carts stock-grade Nidec/AMD DC motor is designed for 36V and 48V Club Car DS golf carts with Series systems. It features a 10-spline configuration and is compatible with golf cars using resistor coils or solid-state controllers.

The motor is rated at 2.4 HP at 2,750 RPM for 36V applications and 3.5 HP at 3,750 RPM for 48V applications. It is identified by Performance Plus Carts part number 7175, AMD part GR1-4001, and replaces Club Car OEM 1022377-01.

Product Specifications

BrandPerformance Plus Carts
ManufacturerPerformance Plus Carts
Item Weight58 pounds
Item Package Dimensions L x W x H16 x 11.25 x 10.5 inches
Package Weight58 pounds
Brand NamePerformance Plus Carts
Part Number7175
Item weight58 pounds
Package dimensions16 x 11.25 x 10.5 inches
Spline count10 spline
36V rating2.4 HP at 2,750 RPM
48V rating3.5 HP at 3,750 RPM
System typeSeries
Compatible controller systemsResistor coils or solid-state controllers

Golf Cart Compatibility

YearMakeModelPower / EngineVariant
1984Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
1985Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
1986Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
1987Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
1988Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
1989Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
1990Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
1991Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
1992Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
1993Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
1994Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
1995Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
1996Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
1997Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
1998Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
1999Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
2000Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
2001Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
2002Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
2003Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
2004Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
2005Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
2006Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
2007Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
2008Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
2009Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
2010Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
2011Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
2012Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
2013Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
2014Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers
2015Club CarDS36V / 48VSeries system; resistor coils or solid-state controllers

Always compare the part number, dimensions, specifications, and compatibility details with your original part before ordering.
