RJSQ-001 0–5V Electronic Throttle Pedal — DTUsryW
$248.99
In stock
✓ Free Shipping
Electronic foot throttle (RJSQ-001) by DTUsryW with 0–5V output and 48V working voltage. Includes 500mm leads and 2×8mm mounting holes.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandDTUsryW
MPN / Part NumberRJSQ-001
Part TypeElectronic Throttle Pedal
Product Description

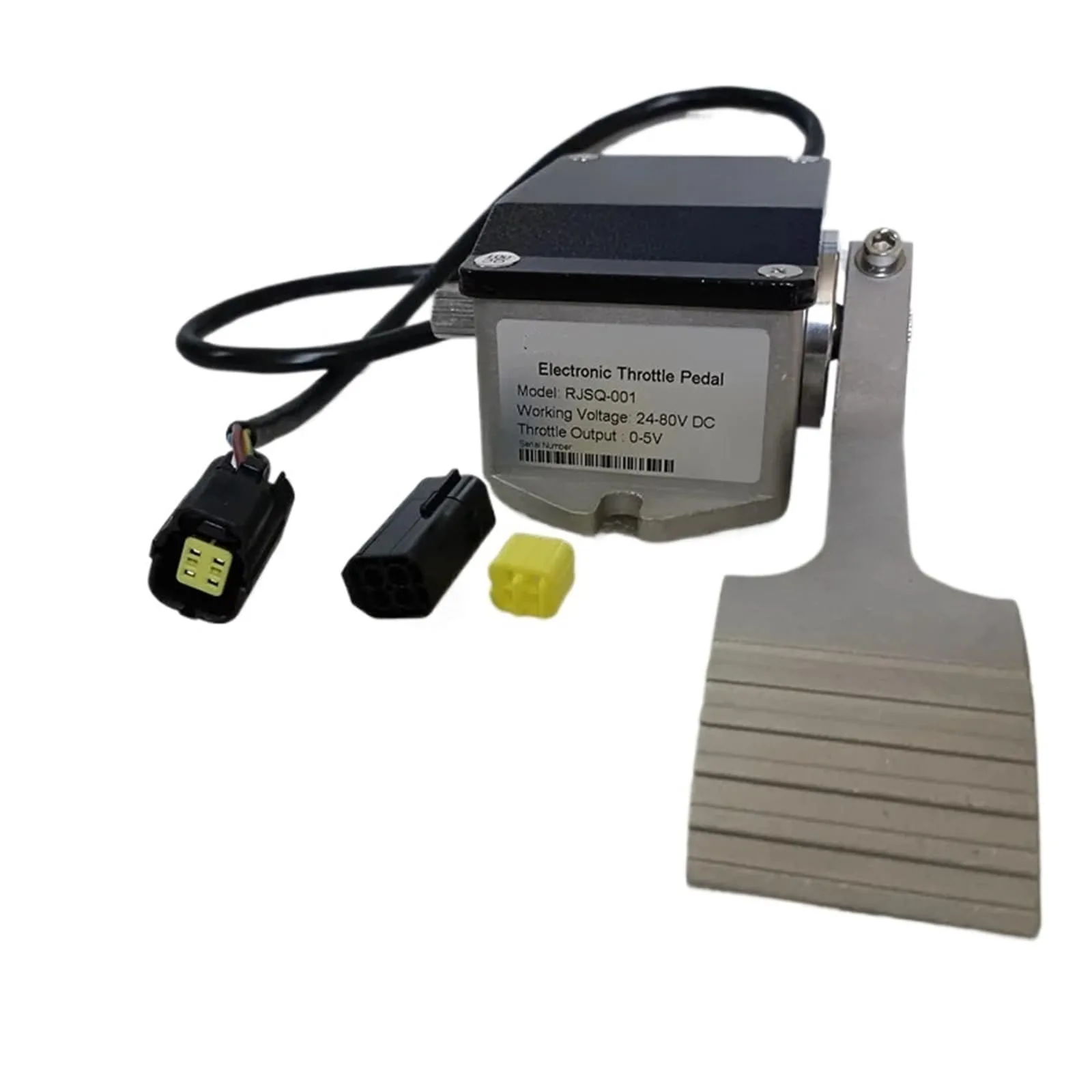

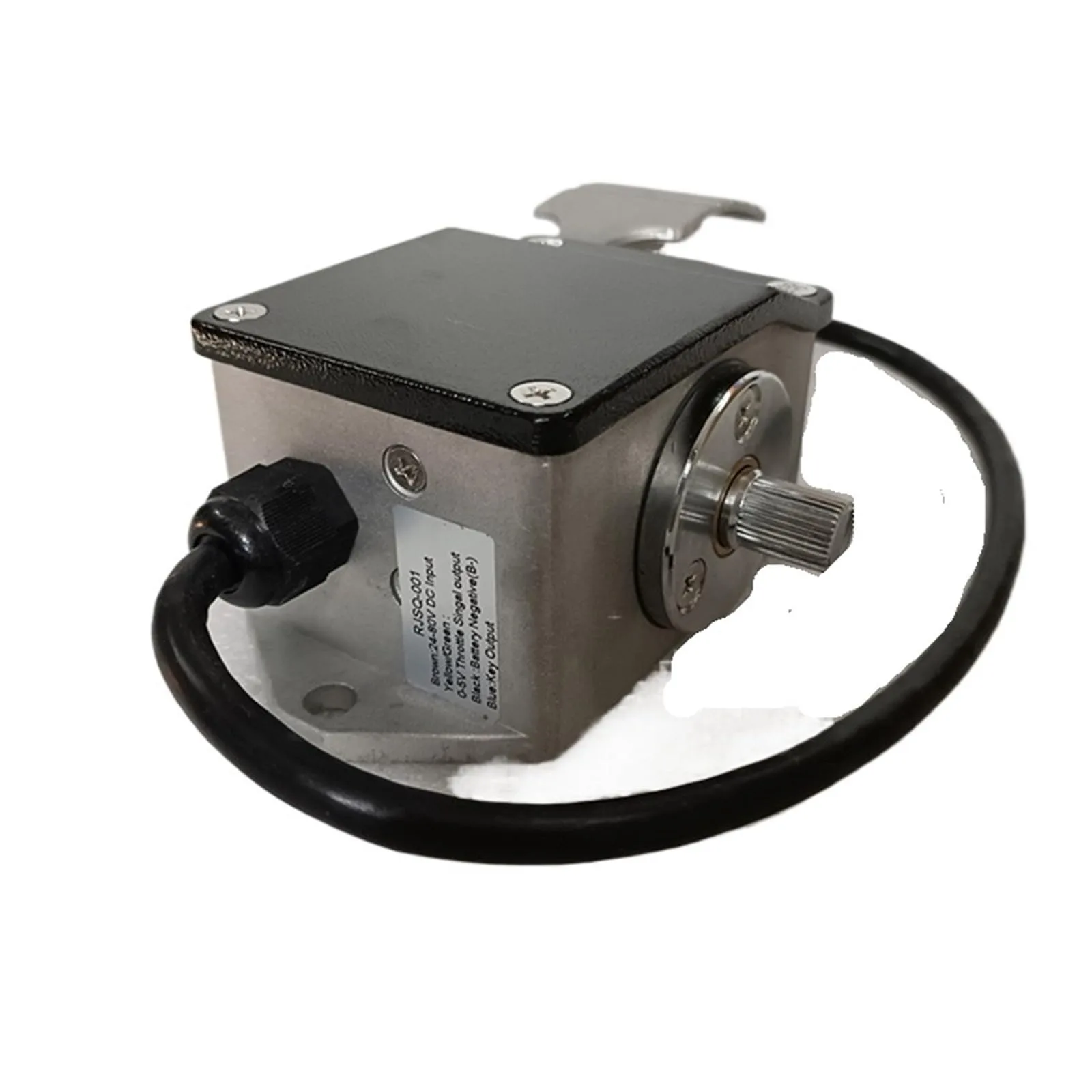

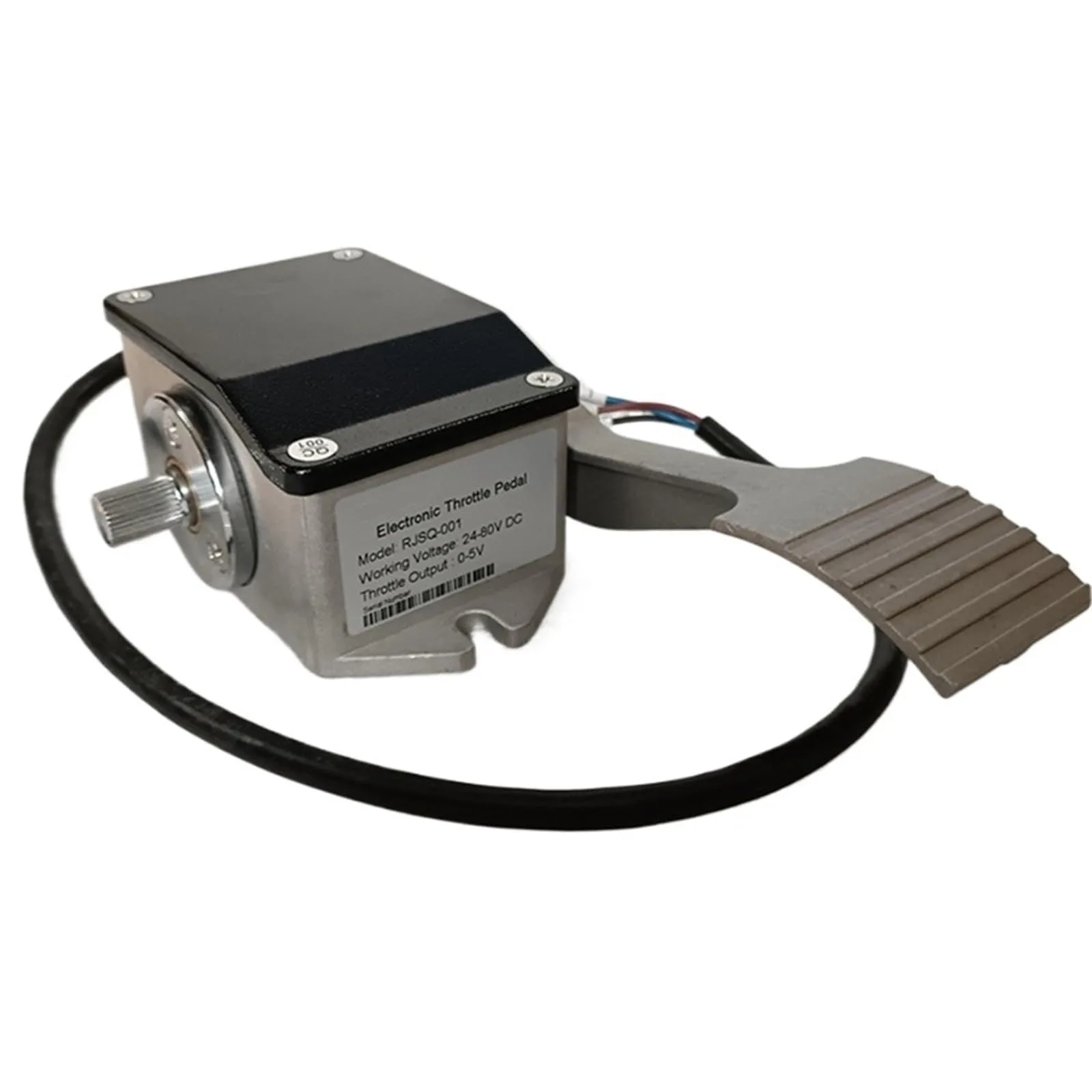

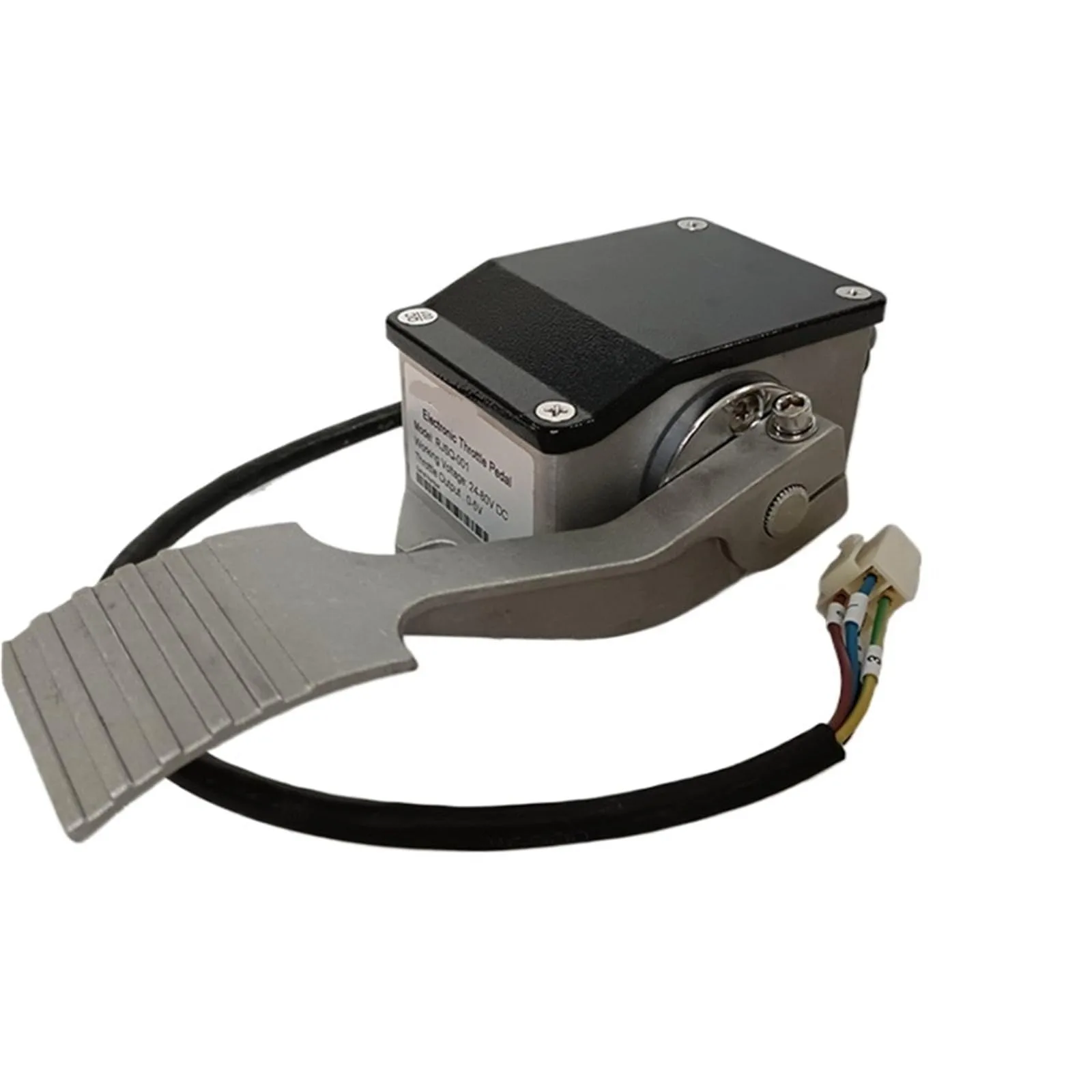

The RJSQ-001 is an electronic foot throttle pedal from DTUsryW that provides a 0–5V throttle output for compatible electric vehicles and equipment. The unit is specified with a 48V throttle working voltage and a rated current of 300mA.
The pedal includes approximately 500mm leads, two 8mm fixing holes in the base for mounting, and a four-pin wiring arrangement (pin functions supplied). Operating temperature range is -20°C to +60°C. Manufacturer part number: RJSQ-001 (DTUsryW).
The pedal includes approximately 500mm leads, two 8mm fixing holes in the base for mounting, and a four-pin wiring arrangement (pin functions supplied). Operating temperature range is -20°C to +60°C. Manufacturer part number: RJSQ-001 (DTUsryW).
Product Specifications
BrandDTUsryW
ManufacturerBrand: DTUsryW
Manufacturer Part NumberDTUsryW
ModelDTUsryW
Item Weight3 ounces
Package Dimensions1.18 x 0.79 x 0.39 inches
Item model numberDTUsryW
ExteriorBrushed
Throttle output0–5V
Throttle working voltage48V
Rated current300mA
Leads length500mm
Mounting2 × 8mm fixing holes in base
Operating temperature-20°C to +60°C
Wiring / PinoutPin1 Blue +48V output; Pin2 Brown +48V input; Pin3 Yellow/Green 0–5V throttle output; Pin4 Black Battery Negative (B-)
Exterior finishBrushed
Manufacturer part numberDTUsryW
Item weight3 ounces
Package dimensions1.18 x 0.79 x 0.39 inches
