Rzcazzide EZGO TXT Brake Drum Hub 19186G1P
$46.99
In stock
✓ Free Shipping

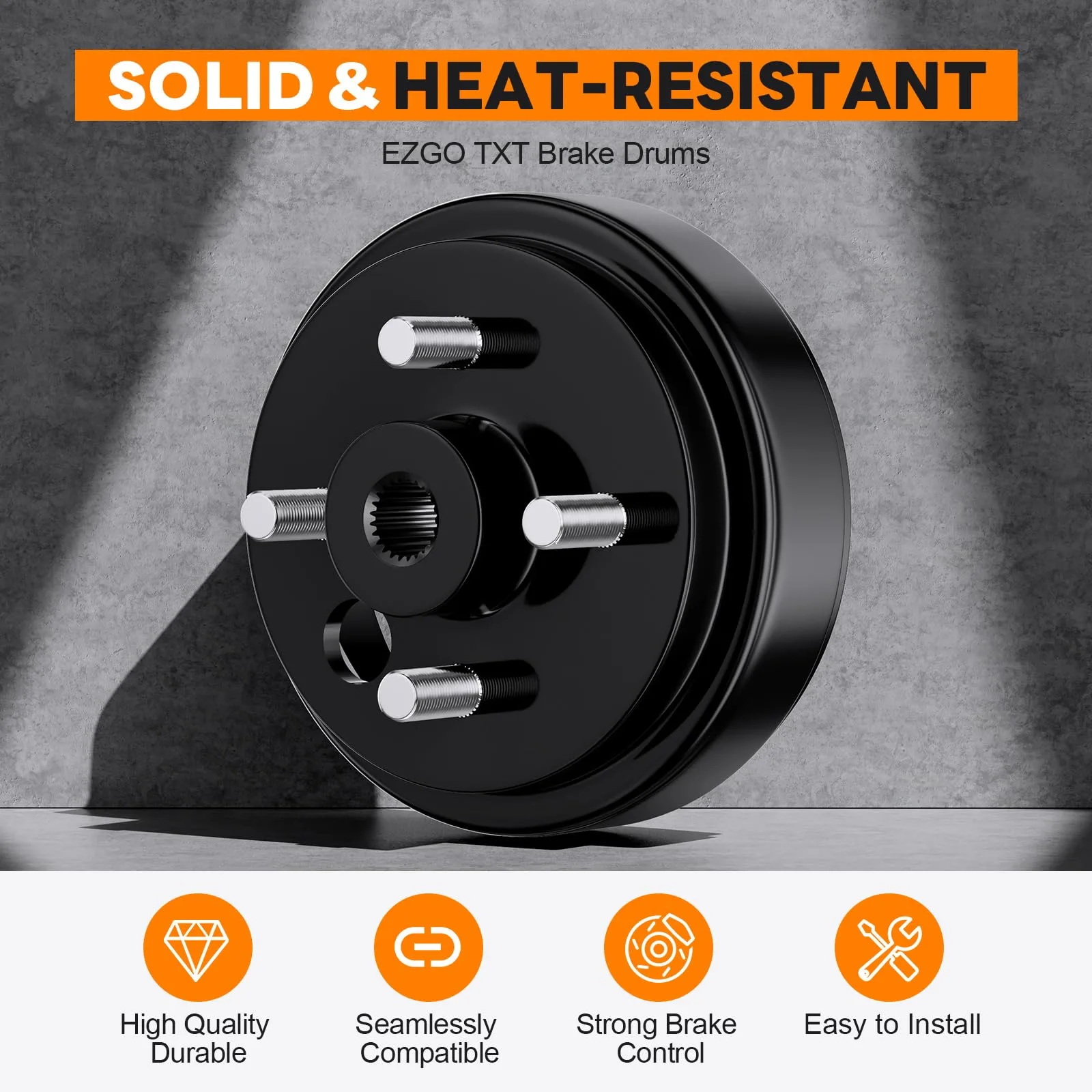

Brake drum hub assembly for E-Z-GO TXT golf carts with a 0.75-inch center hole and 24-tooth star splines.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandRzcazzide
OEM / OE Number19186G1P
Part TypeBrake drum hub assembly
PositionRear
Product Description
Rzcazzide brake drum hub assembly for EZGO TXT golf carts. It is identified as a replacement for EZGO OEM numbers 19186G1P, 19186-G1, 19186-G1P, 17082-G2, and 17298-G1, with fitment for 1982-up electric models and 1982–1993 2-cycle gas models.

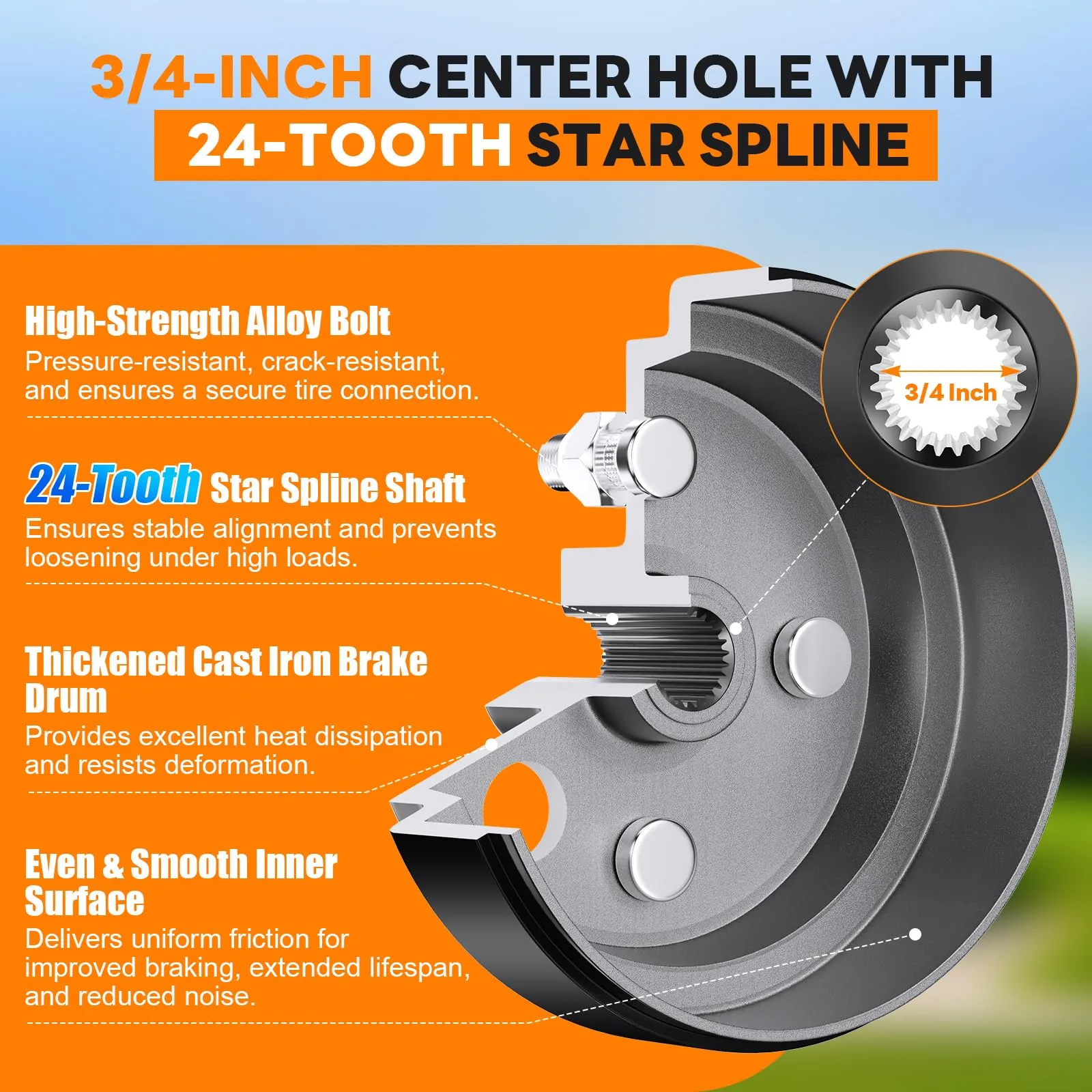

The drum has a 0.75-inch center hole and 24-tooth star splines. The assembly includes the brake drum hub, lug nuts, cotter pin, and brake drum spacers.
The drum has a 0.75-inch center hole and 24-tooth star splines. The assembly includes the brake drum hub, lug nuts, cotter pin, and brake drum spacers.
Product Specifications
BrandRzcazzide
ManufacturerBrand: Rzcazzide
Item Package Dimensions L x W x H7.2 x 7.2 x 3.7 inches
Package Weight2.72 kg
Item Dimensions LxWxH6.7 x 6.7 x 3.4 inches
Brand NameRzcazzide
Warranty DescriptionCovered by a 1-Year Warranty
Model Name0.75-Inch Center Hole Brake Drum for EZGO TXT Golf Cart
Colorblack-1 pack
MaterialHeavy-Duty Cast Iron
Suggested Usersunisex-adult
Number of Items1
Part Number19186G1P, 19186-G1, 17082-G2, 17298-G1
Included Components0.75-Inch Brake Drum Hub for EZGO TXT Golf Cart *1, Cotter Pin *1, Large Metal Washer *1, Metal Nut *4, Small Metal Washer *1
Center hole0.75 inch
Spline type24-tooth star spline
MaterialHeavy-duty cast iron
ColorBlack
Product dimensions6.7 x 6.7 x 3.4 inches
Included componentsBrake drum hub, 4 metal nuts, cotter pin, large metal washer, small metal washer
Warranty1-year warranty
Golf Cart Compatibility
| Year | Make | Model | Power / Engine | Variant |
|---|---|---|---|---|
| 1982 | E-Z-GO | TXT | Electric | |
| 1982 | E-Z-GO | TXT | Gas | 2-Cycle |
| 1983 | E-Z-GO | TXT | Gas | 2-Cycle |
| 1984 | E-Z-GO | TXT | Gas | 2-Cycle |
| 1985 | E-Z-GO | TXT | Gas | 2-Cycle |
| 1986 | E-Z-GO | TXT | Gas | 2-Cycle |
| 1987 | E-Z-GO | TXT | Gas | 2-Cycle |
| 1988 | E-Z-GO | TXT | Gas | 2-Cycle |
| 1989 | E-Z-GO | TXT | Gas | 2-Cycle |
| 1990 | E-Z-GO | TXT | Gas | 2-Cycle |
| 1991 | E-Z-GO | TXT | Gas | 2-Cycle |
| 1992 | E-Z-GO | TXT | Gas | 2-Cycle |
| 1993 | E-Z-GO | TXT | Gas | 2-Cycle |
Always compare the part number, dimensions, specifications, and compatibility details with your original part before ordering.
