Waverleyatv K241K244 Rear Drive CV Axle & Swing Arm Kit
$940.99
In stock
✓ Free Shipping

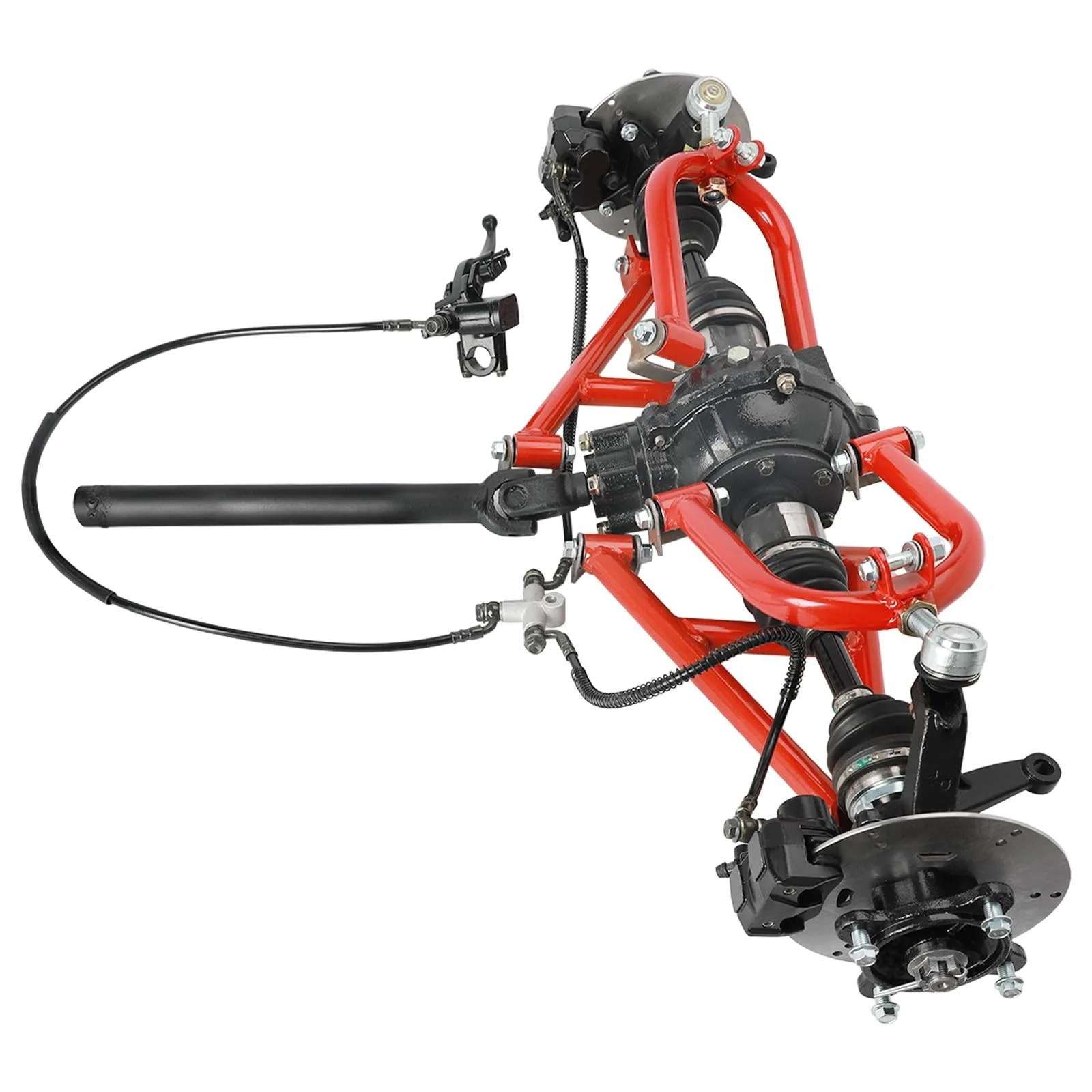

Complete rear drive kit from Waverleyatv (K241K244) including CV axles, upper/lower rear swing arms, wheel hubs, brake rotors and a rear drive gear housing.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandWaverleyatv
MPN / Part NumberK241K244
Part Typerear drive assembly kit
Positionrear
Product Description

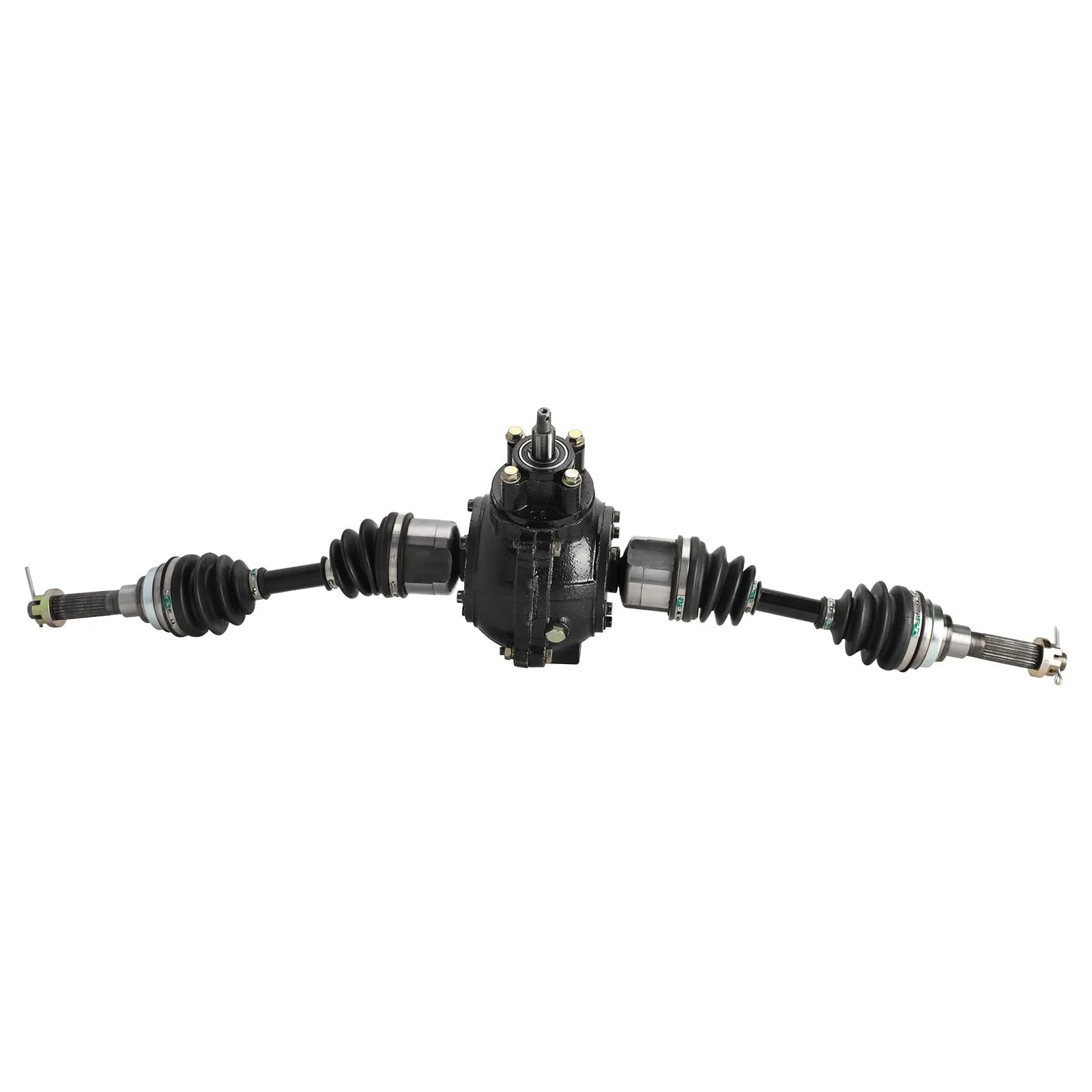

This Waverleyatv K241K244 assembly is a multi-piece rear drive kit intended for 4-wheel DIY ATVs, go-karts and buggies. The kit includes CV axles, upper and lower rear swing arms, steering spindles/wheel hubs, brake rotors and a hydraulic twin rear brake caliper with pads, plus a rear drive shaft and gearbox housing.
Key supported specifications from the listing: 23-tooth splined wheel hubs, 180 mm brake rotor outside diameter (4 mm thick) with six mounting holes, 11:39 gear ratio for the rear drive housing, and swing arm lengths of 210 mm (upper) and 280 mm (lower). The manufacturer part number is K241K244 and the listed brand is Waverleyatv.
Key supported specifications from the listing: 23-tooth splined wheel hubs, 180 mm brake rotor outside diameter (4 mm thick) with six mounting holes, 11:39 gear ratio for the rear drive housing, and swing arm lengths of 210 mm (upper) and 280 mm (lower). The manufacturer part number is K241K244 and the listed brand is Waverleyatv.
Product Specifications
BrandWaverleyatv
ManufacturerBrand: Waverleyatv
Manufacturer Part NumberK241K244
ModelK241K244
Item model numberWaverleyatv
ExteriorPolished
Manufacturer Part NumberK241K244

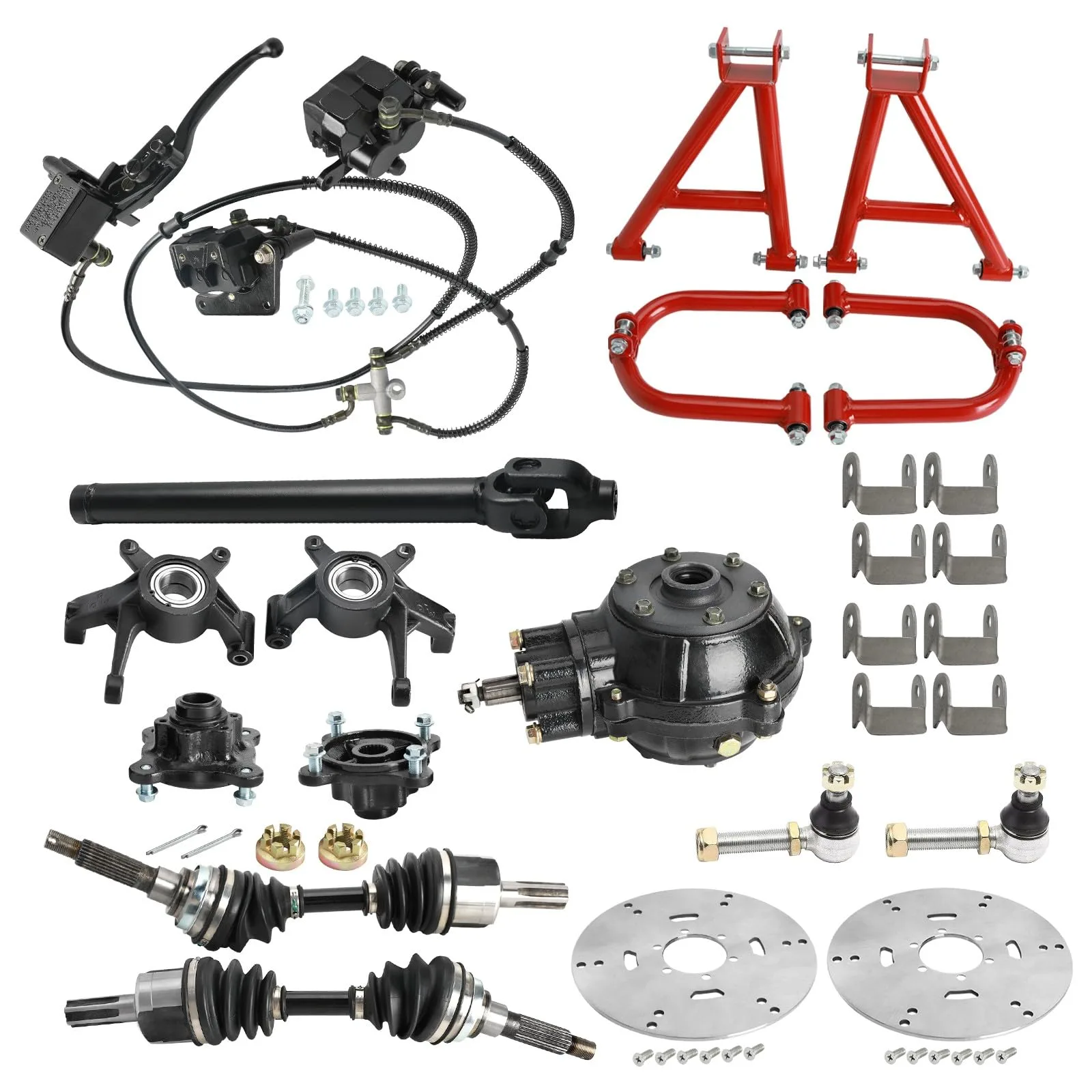

Included components2 CV axles; 2 upper swing arms; 2 lower swing arms; 2 tie rod ends; 8 shock mounts; 2 steering spindles; 2 wheel hubs; 2 brake rotors; 1 brake caliper assembly with pads; 1 rear drive shaft; 1 rear axle gearbox housing
Wheel hub spline23 tooth
Wheel hub center hole diameter37 mm
Wheel hub mounting hole center-to-center78 mm
Wheel hub bolt distance (listed)110 mm
Brake rotor outside diameter180 mm
Brake rotor inner hole diameter47 mm
Brake rotor thickness4 mm
Brake rotor mounting holes6
Brake rotor bolt spacing29 mm
Gear housing ratio11:39

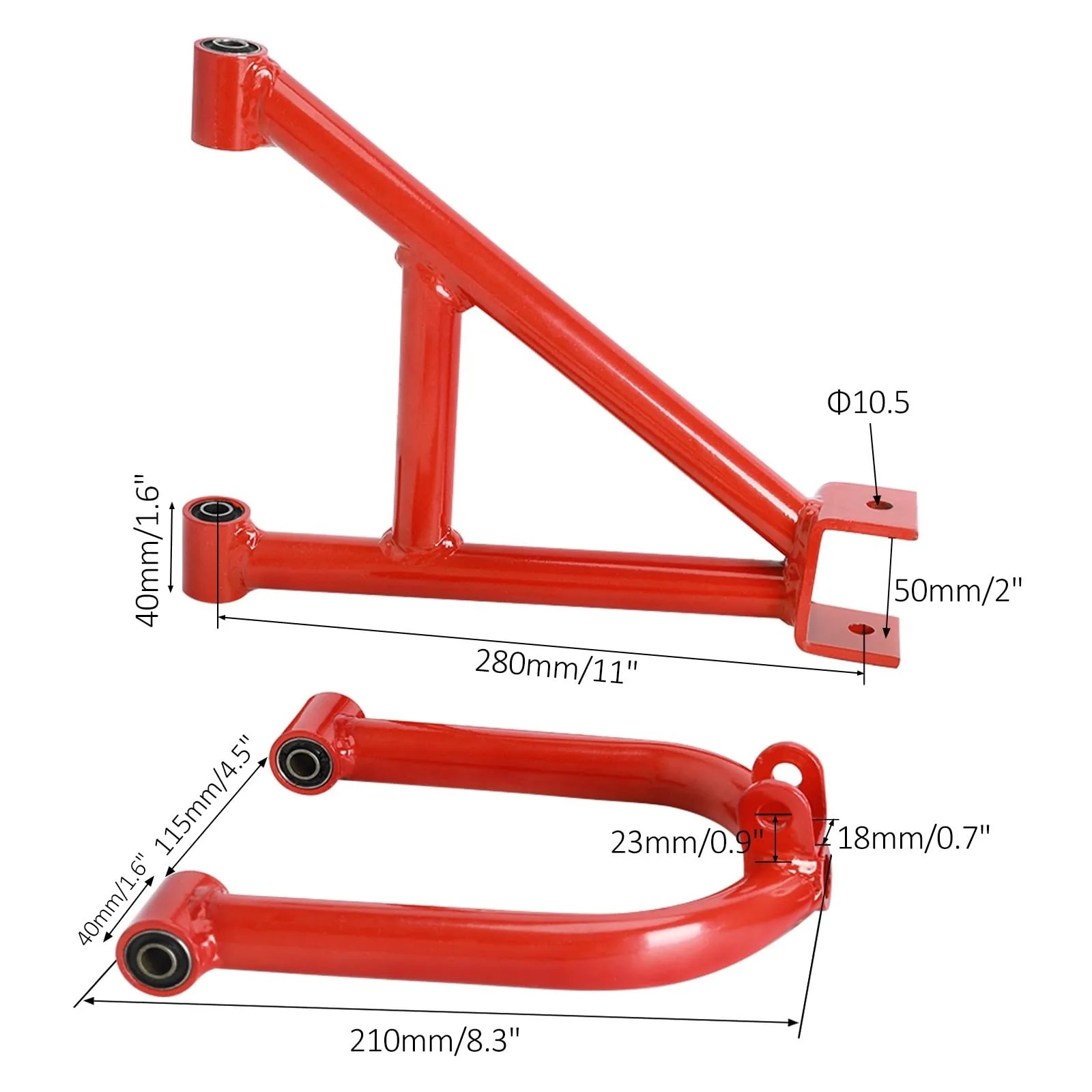

Swing arm length (upper)210 mm
Swing arm length (lower)280 mm
Bearings included6006ZZ (4 pcs)
Weight (listed)3592 g
Materials (listed)Casting steel (hubs, knuckles); iron (swing arms)
Exterior / color notesPolished exterior; swing arm color listed as red
