YC Yier 60V 2500W Golf Cart Differential Motor Kit
$848.99
In stock
✓ Free Shipping
60V 2500W YC Yier brushless differential motor kit with a 12:1 gearbox, dual rear axles, and a 32-inch assembled track width for electric golf carts.
Price shown is the online purchase price. Free shipping · 30-day return policy
BrandYC Yier
MPN / Part NumberUSATK158+USATD608ff
Part TypeBrushless differential motor and rear axle kit
PositionRear
Product Description

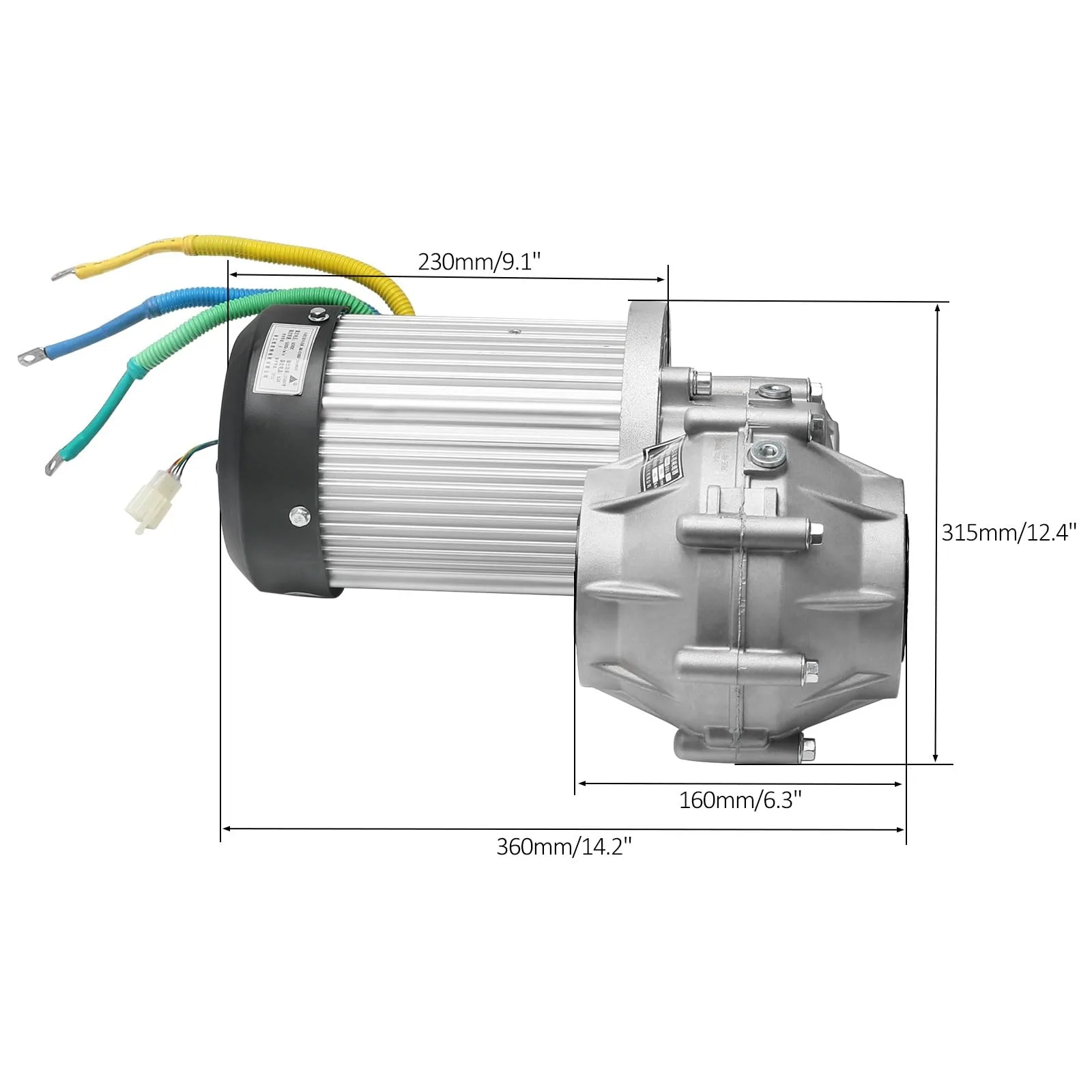

YC Yier 60V 2500W brushless differential motor kit with an integrated 12:1 gearbox and dual rear axles for electric golf carts. The motor is rated at 5,000 RPM, reaches 6,000 RPM maximum speed, and produces up to 400 Nm of torque.

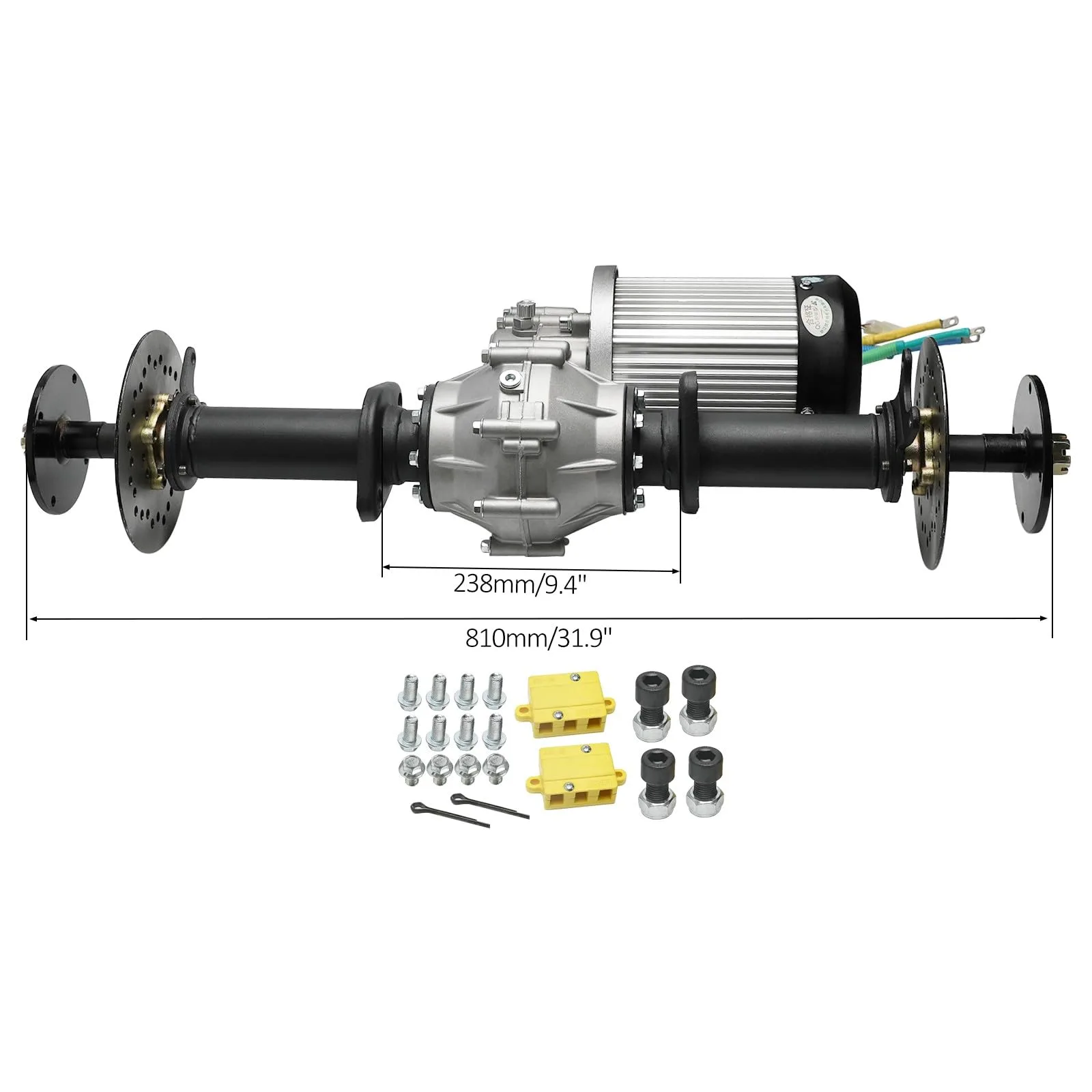

The assembled rear axle setup has a 32-inch (810 mm) track width and includes two short axles, two brake discs, two four-stud wheel hubs, and the differential motor assembly. Specifications include 63A rated current, a 6-tooth spline shaft, IP33 protection, and F-class insulation.
The assembled rear axle setup has a 32-inch (810 mm) track width and includes two short axles, two brake discs, two four-stud wheel hubs, and the differential motor assembly. Specifications include 63A rated current, a 6-tooth spline shaft, IP33 protection, and F-class insulation.
Product Specifications
BrandYC Yier
ManufacturerBrand: YC Yier
Manufacturer Part NumberUSATK158+USATD608ff
ModelRear Differential Axle Kit
Item model numberUSATK158+USATD608
ExteriorMachined
Voltage60V DC
Power2500W
Motor typeBrushless
Gear ratio12:1
Rated speed5000 RPM
Maximum speed6000 RPM
Maximum torque400 Nm
Rated current63A
Shaft6-tooth spline
Protection gradeIP33
Insulation classF Class
Rear track width32 in / 810 mm assembled
Axles2 rear half axles

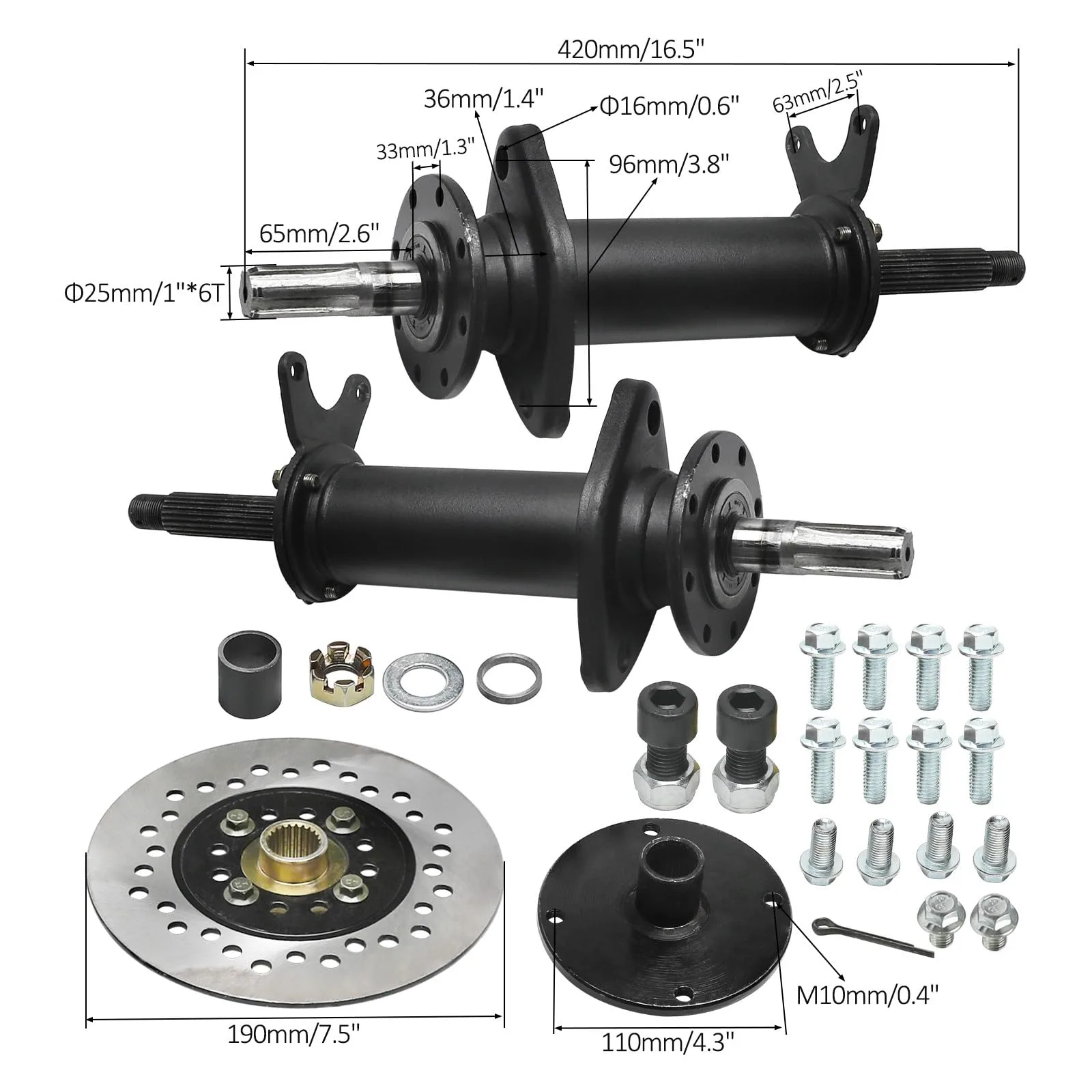

Included components2 short axles, 2 brake discs, 2 four-stud wheel hubs, and 1 brushless motor with differential gearbox
Weight36.8 lb / 16.7 kg
ExteriorMachined
